Top cover alignment mark – HP RP3440 User Manual
Page 133
1.
Replace the top cover:
a.
Align the front edge of the top cover with the alignment mark on the optical drive bay.

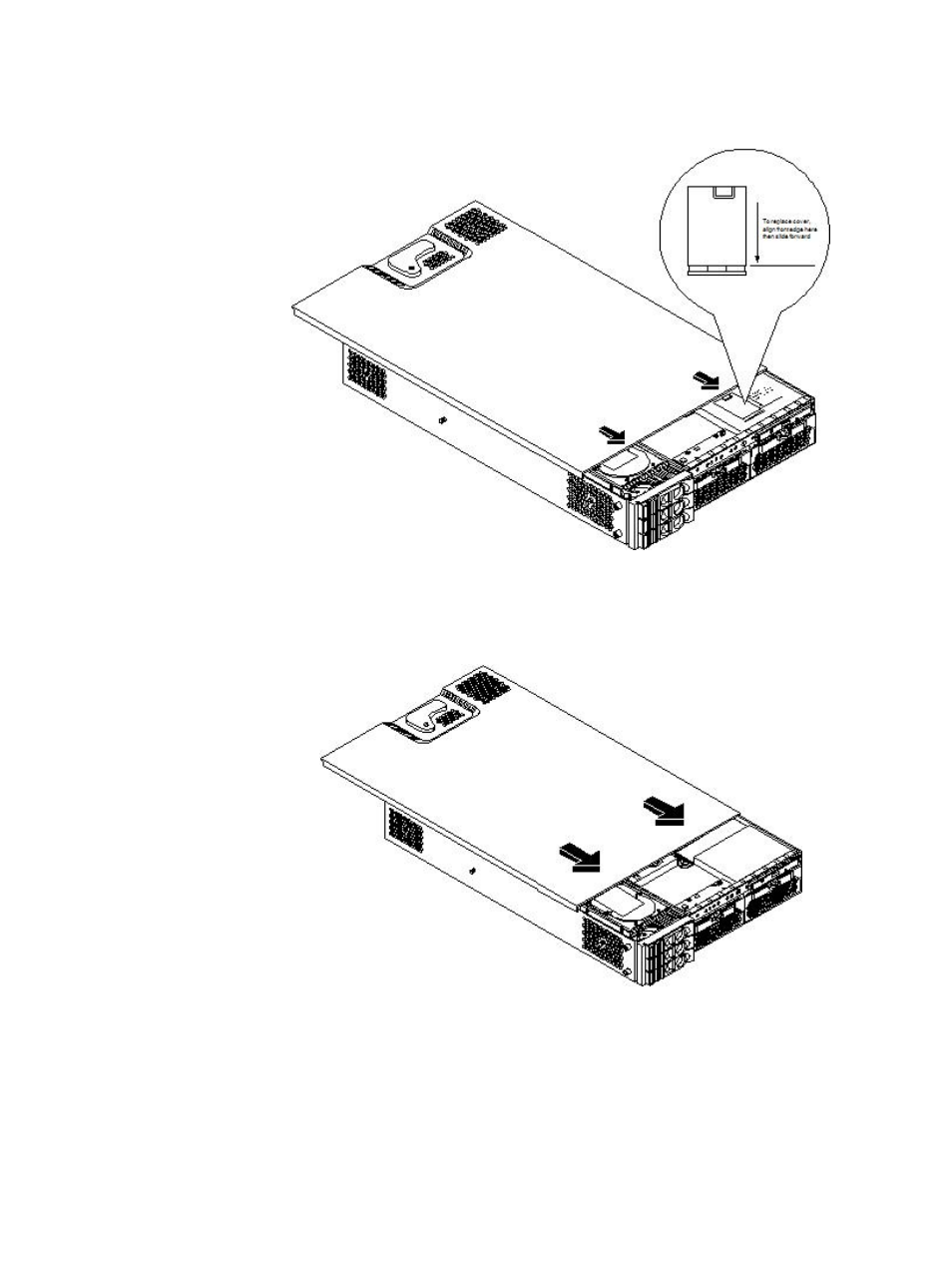

Figure 6-11 Top Cover Alignment Mark
b.
Place the top cover on the chassis and slide it toward the front of the server until the
blue release lever snaps in place.
Figure 6-12 Replacing the Top Cover on a Pedestal-Mounted Server
Removing and Replacing Server Covers and Bezel
133
