Removing and Replacing a Dual Processor Module
This section provides information about installing dual processor modules. The modules are
located on the system board which is accessible by removing the top cover.
WARNING! Ensure that the server is powered off and all the power sources have been
disconnected from the server before removing or replacing a dual processor module.
Voltages are present at various locations within the server whenever an AC power source is
connected. This voltage is present even when the main power switch is in the off position.
Failure to observe this warning can result in personal injury or damage to equipment.
CAUTION: Failure to properly complete the steps in this procedure will result in erratic system
behavior or system failure. For assistance with this procedure, contact your local HP Authorized
Service Provider.
Observe all ESD safety precautions before attempting this procedure. Failure to follow ESD safety
precautions can result in damage to the server.
NOTE: Processor tool kit (HP part number 5069-5441) is required for removal and installation
of a dual processor module.
Removing a Dual Processor Module
To remove a dual processor module, follow these steps:
1. Power off the server and disconnect the power and external cables.
2. Remove the top cover. (See “Removing and Replacing Server Covers and Bezel” (page 126) .)
3. Remove the memory airflow guide and cables. (See “Removing the Memory Airflow Guide”
(page 144) .)
4. Remove the processor airflow guide and cables. (See “Removing the Processor Airflow
Guide” (page 145) .)
5. Disconnect the power pod cable from the power connector on the system board

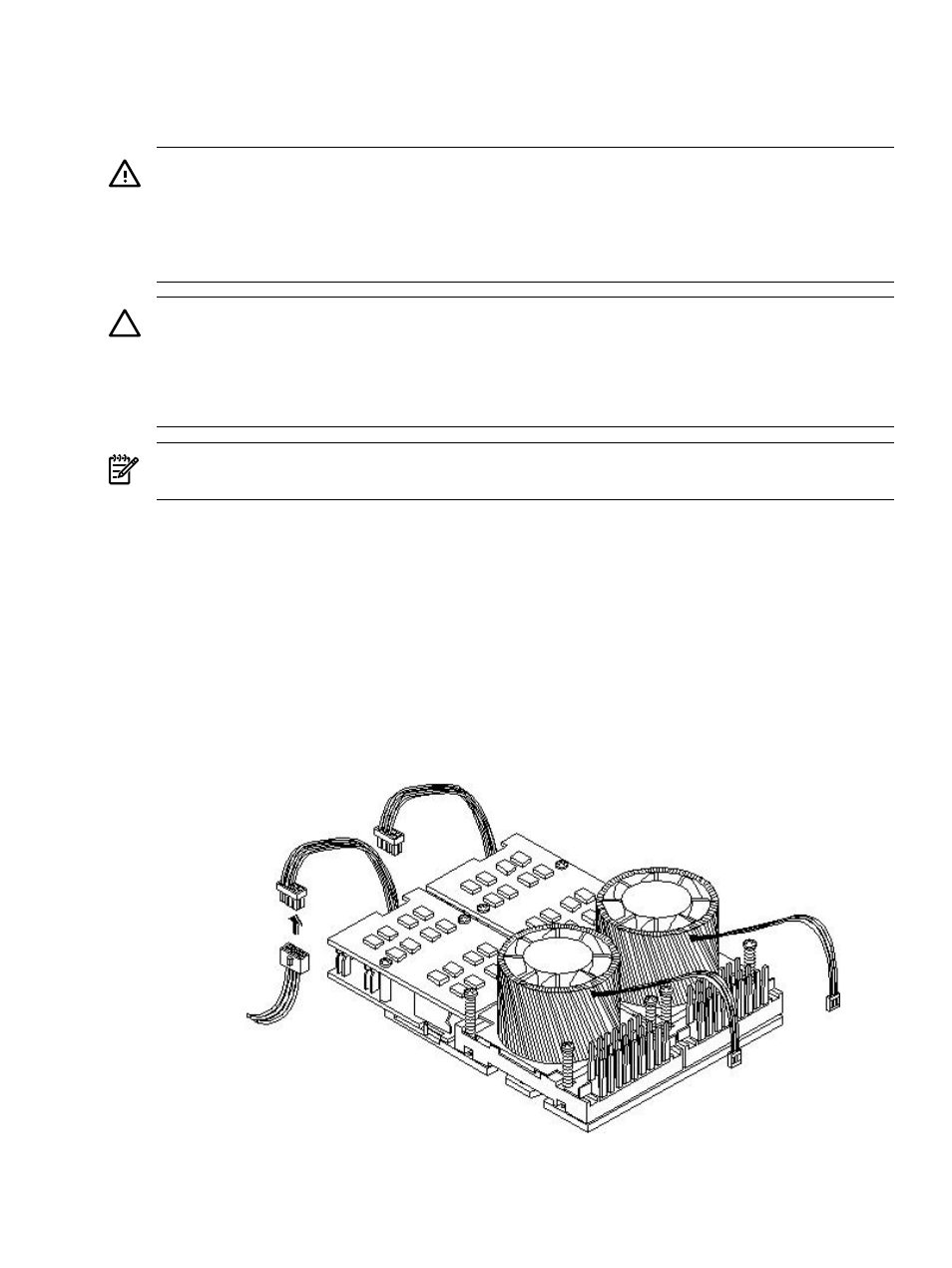

Figure 6-35 Disconnecting the Power Pod Cable
6. Remove and retain the two power pod mounting screws.
