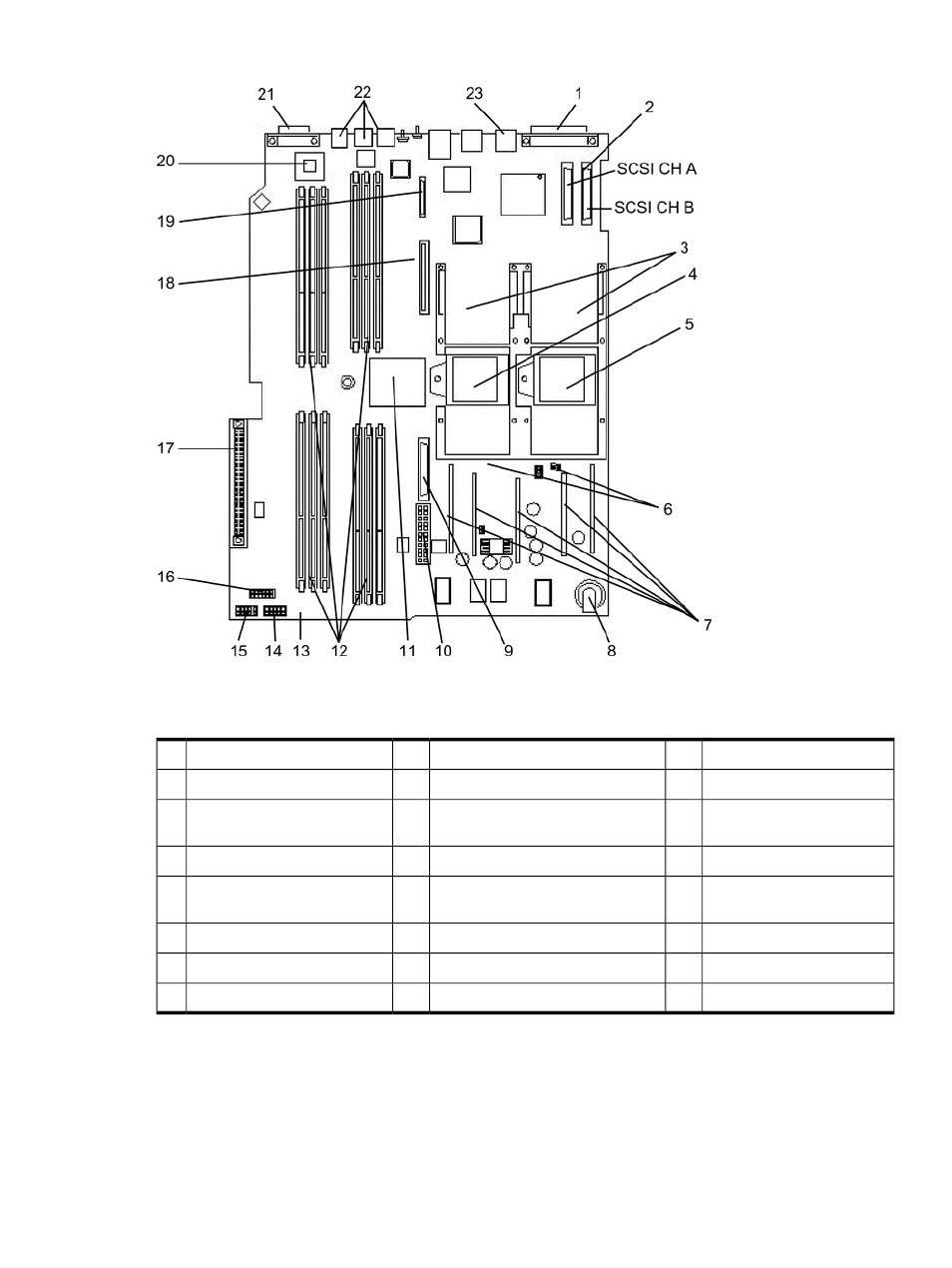

Figure 6-2 System Board Connectors and Slots

Table 6-2

provides the key to

Figure 6-2

.

Table 6-2 Connector Locations

PCI backplane connector

17

Power supply fan connector

9

External SCSI connector

1

Optical drive connector

18

Power module power connector

10

SCSI connectors A & B

2

iLO MP card connector

19

HP ZX1 memory and I/O controller
(under heatsink)

11

CPU power pods

3

HP ZX1 I/O adapter

20

Memory sockets

12

CPU 1

4

Serial ports (2) (factory use
only)

21

Status panel connector

13

CPU 0

5

USB connectors (4)

22

Power module auxiliary connector

14

Turbo fan power connectors

6

LAN connector

23

SCSI backplane power connector

15

Five VRM cards

7

PCI/memory fan cable connector

16

Battery

8
