10/100/1000 Base-T Ethernet LAN Connector
Figure 1-12 shows the rear panel 10/100/1000 base-T Ethernet LAN connector and the status and
activity LEDs.

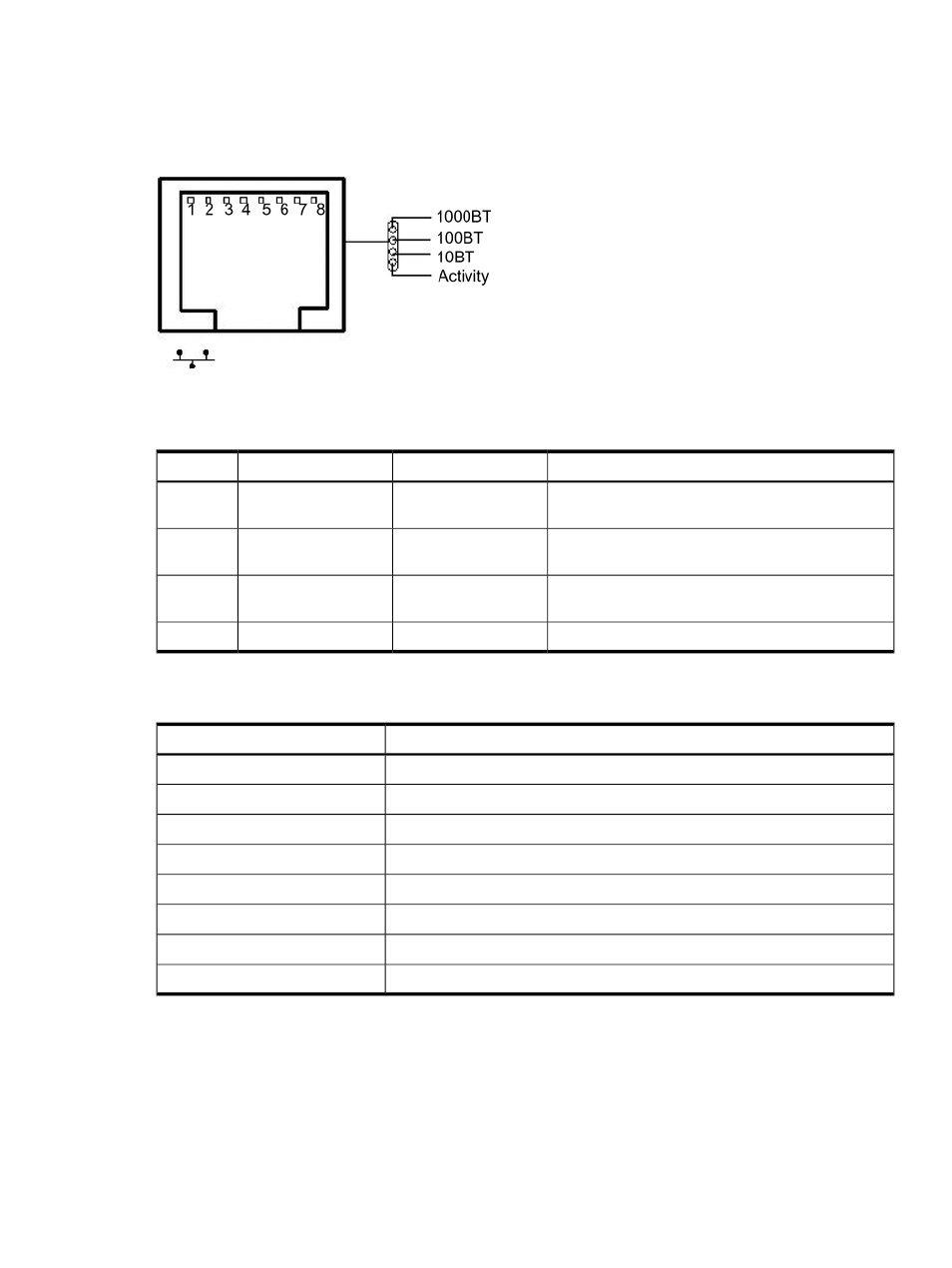

Figure 1-12 10/100/1000 Base-T Ethernet LAN Connector LEDs
Table 1-11 lists the 10/100/1000 base-T Ethernet LAN connector LED descriptions.
Table 1-11 10/100/1000 Base-T Ethernet LAN Connector LEDs
Description Status Activity LED
1000 MHz with Ethernet protocol and twisted-pair
wiring is enabled off—no link Flashing green 1000BT
100 MHz with Ethernet protocol and twisted-pair
wiring is enabled off—no link Flashing green 100BT
10 MHz with Ethernet protocol and twisted-pair
wiring is enabled off—no link Flashing green 10BT
LAN activity Flashing green Activity
Table 1-12 lists the 10/100/1000 base-T Ethernet LAN connector pinouts.
Table 1-12 10/100/1000 Base-T Ethernet LAN Connector Pinouts
Signal Description Pin Number
TXP 1
TXN 2
RXP 3
Not used 4
Not used 5
RXN 6
Not used 7
Not used 8
USB Ports
Figure 1-13 shows the dual USB port connector.
