Replacing the pci card cage, Removing the pci card cage, Removing the pci card cage cover – HP RP3440 User Manual
Page 168: Figure 6-54

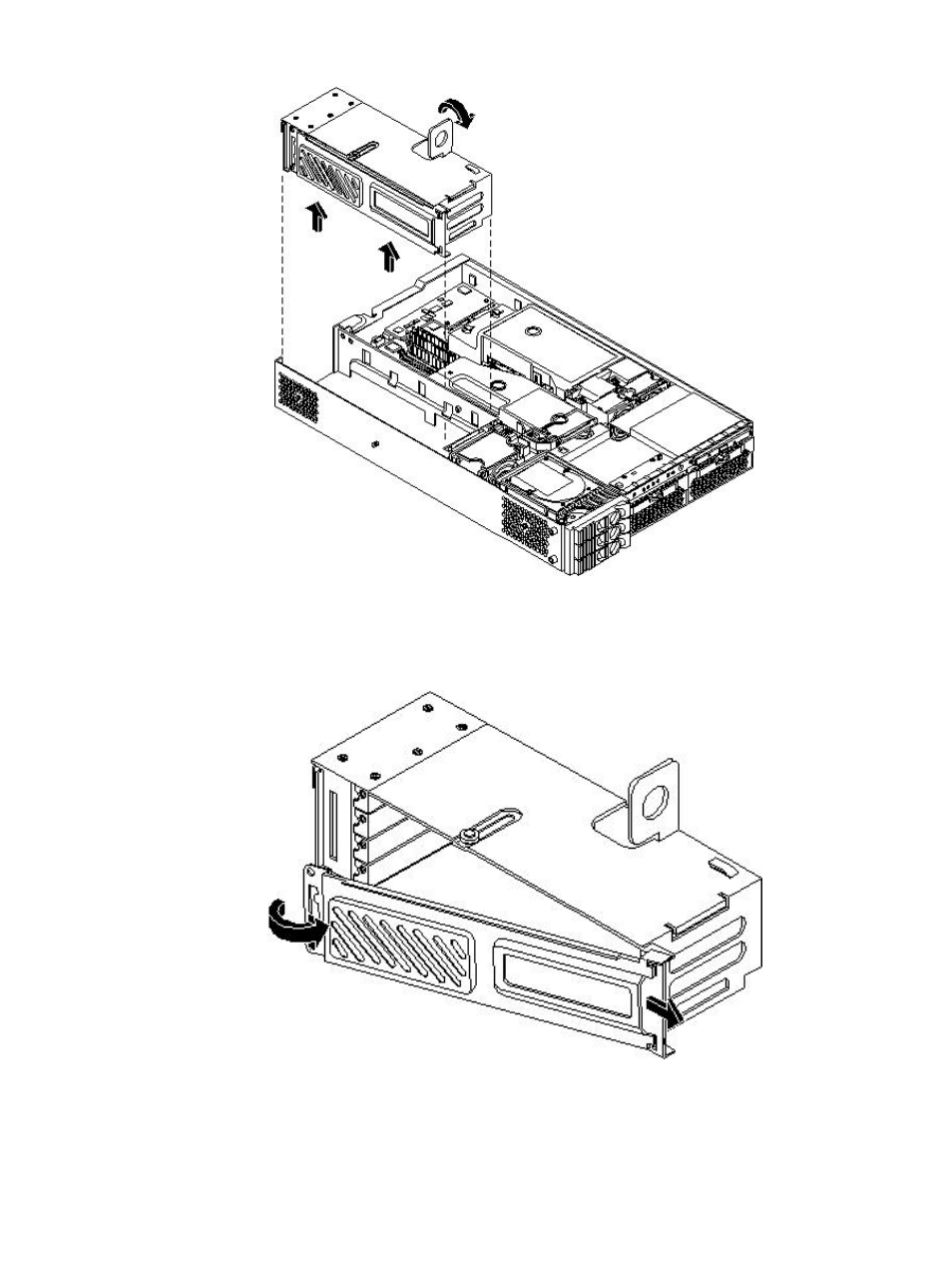

Figure 6-54 Removing the PCI Card Cage
4.
Grasp the PCI card cage cover and slide it away from the bulkhead end of the cage, then lift
the cover off.
Figure 6-55 Removing the PCI Card Cage Cover
The PCI cards are now accessible for removal and replacement.
5.
Unscrew the bulkhead screw that holds the PCI card in place.
Replacing the PCI Card Cage
To replace the PCI card cage into the server, follow these steps:
168
Removing and Replacing Components
