3.4.8 Export the Unity Pro v 4.0 Logic Support Files from PCB
The Unity Pro import files that you create in this step use the information in the
Unity Passthru Memory Map to build the Derived Data Types (DDTs), Variables,
and Derived Function Blocks (DFBs) for the slave devices on your PROFIBUS
DP network. These files may be uploaded and used without modification to allow
the Modicon processor to act as a PROFIBUS DP Master.
To export the processor memory map:

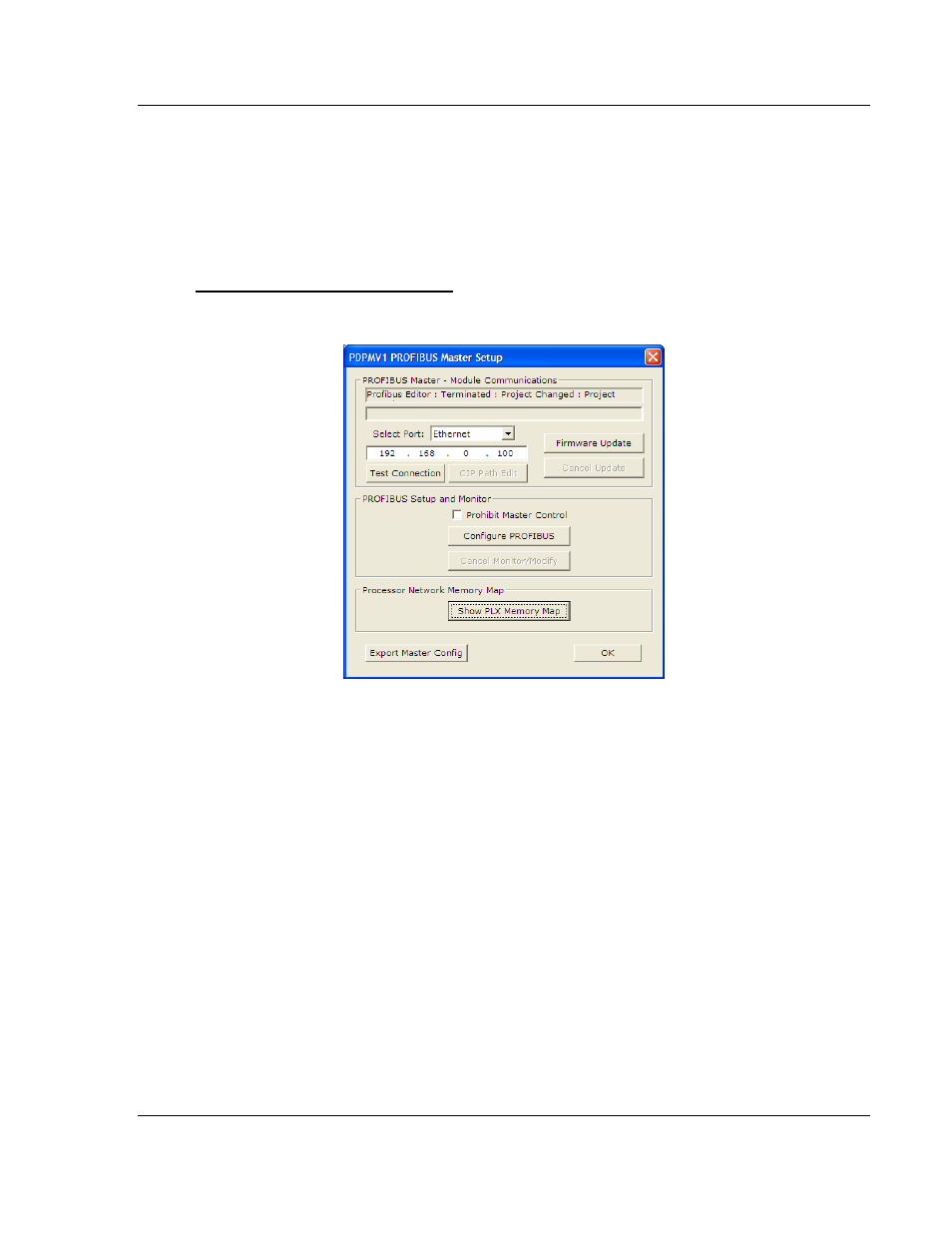

1 In the Master Setup dialog box, click S HOW PLX M EMORY M AP .
