168 EPSON S1C63558 TECHNICAL MANUAL
CHAPTER 7: ELECTRICAL CHARACTERISTICS

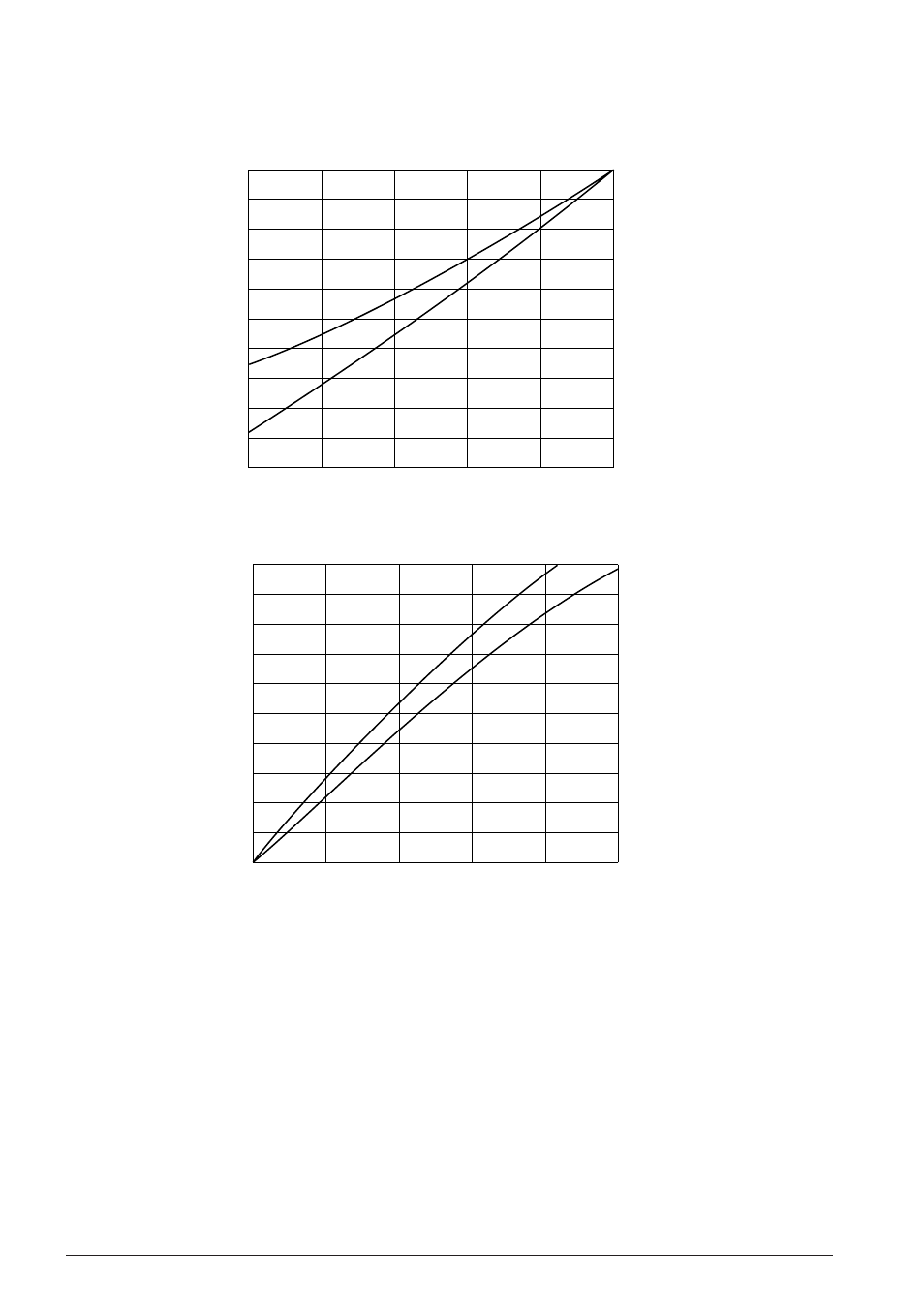

High level output current (SEGxx)
Ta = 70˚C, Max. value
0.0
0.0
-0.1
-0.2
-0.3
-0.4
-0.5
-0.6
-0.7
-0.8
-0.9
-1.0
0.2 0.4 0.6
V DD –V OH [V]
V DD = 3.0 V
V DD = 5.0 V
I OH
[mA]
0.8 1.0
Low level output current (SEGxx)
Ta = 70˚C, Min. value
1.0
2.0
1.8
1.6
1.4
1.2
1.0
0.8
0.6
0.4
0.2
0.0
0.8 0.6 0.4
V OL [V]
V DD = 3.0 V
V DD = 5.0 V
I OL
[mA]
0.2 0.0
