Construct the datum point from the intersection of the skew line and the left part vertical line.
You will be asked to confirm that your reference frame is complete. Click Yes. The program will include
the datum and record the part registration.
The reference frame will be shown in the Part
View window, and subsequent measurements will
be referred to the new datum.

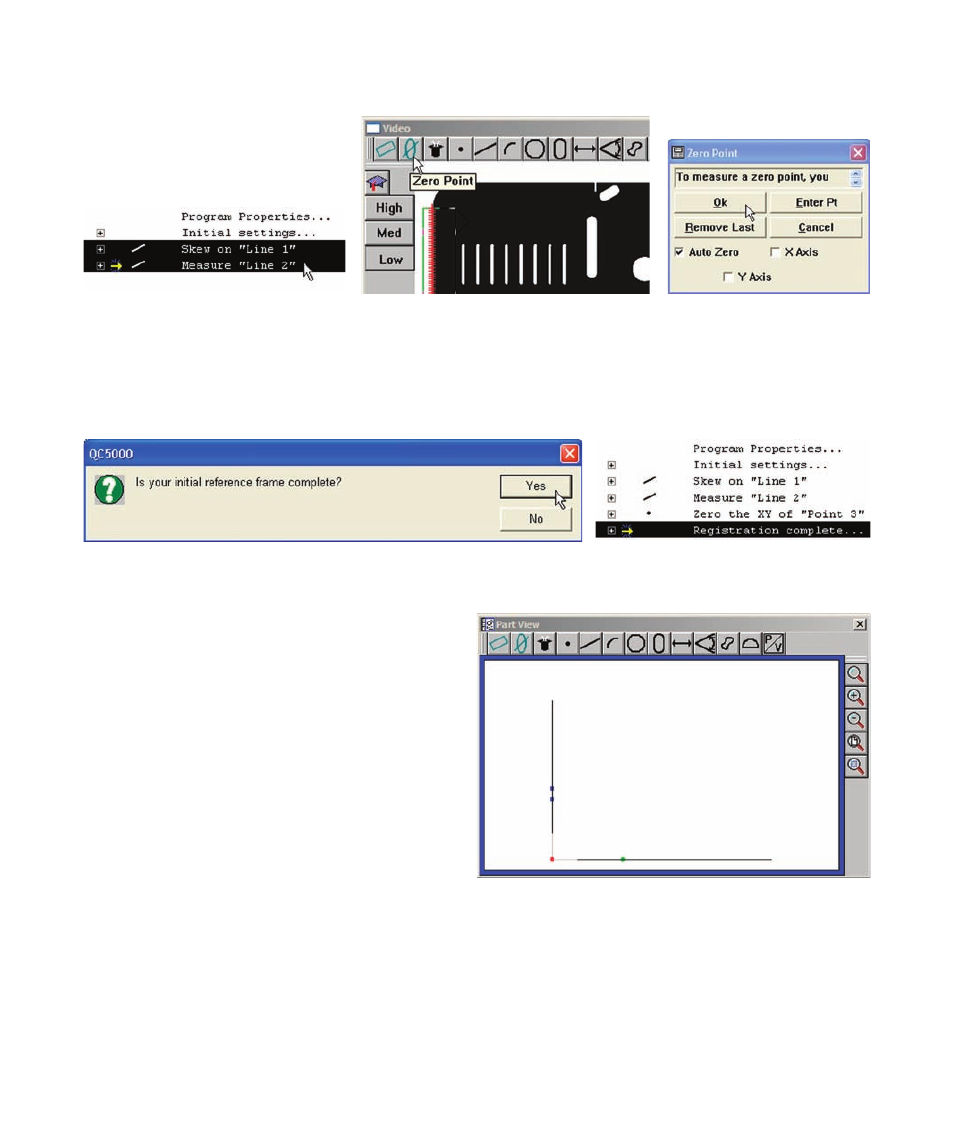

Select the Skew Line and the
vertical line...
click the Zero Point toolbar button... Click OK to complete the
Zero point construction
Confirm that the reference frame is complete... to complete the skew and datum
