152 QC5200 Series User’s Guide
Distances
Two probed points are required to measure a distance.

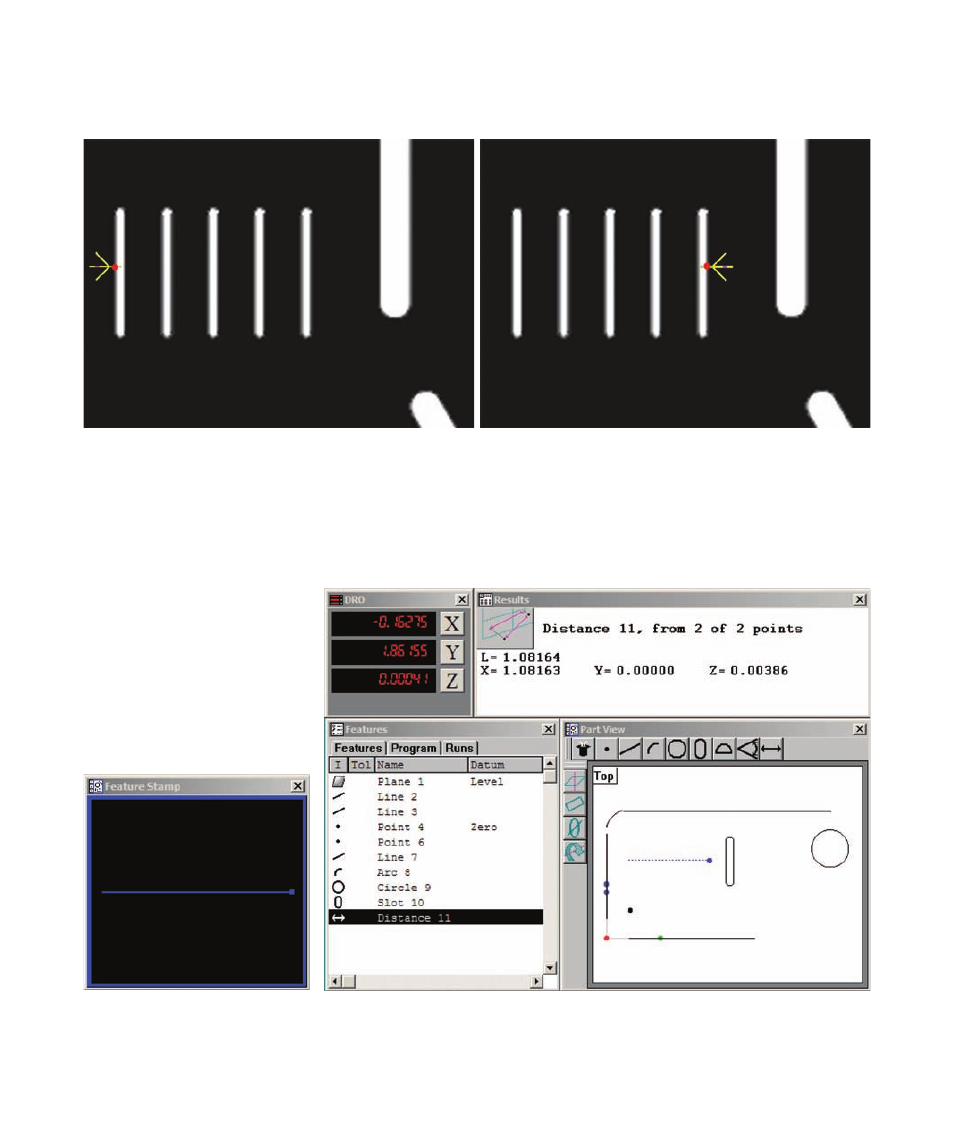

Measurement results are shown in the Features template, Part View window and Results window. The
Results window shows the feature identification number, the number of points used in the measurement,
the length of the distance, and the coordinate location of the center of the distance.
The vector direction of the
distance from beginning to
end is shown in the Part View
and Feature Stamp windows
as a dot at the end of the dis-
tance.
The distance across five slots is measured by probing two points using the Simple probe
