122 QC5200 Series User’s Guide
Calibrating auto focus
Auto focus is calibrated for the highest magnification as the first step of the entire video probe system setup
process.
NOTE
Auto focus should not be calibrated for lower magnifications until all configuration
steps are performed for the highest magnification, and pixel resolutions and offsets are
calibrated for the lower magnifications. Refer to the diagrams on the previous page
for the correct sequence of steps.
To calibrate auto focus:

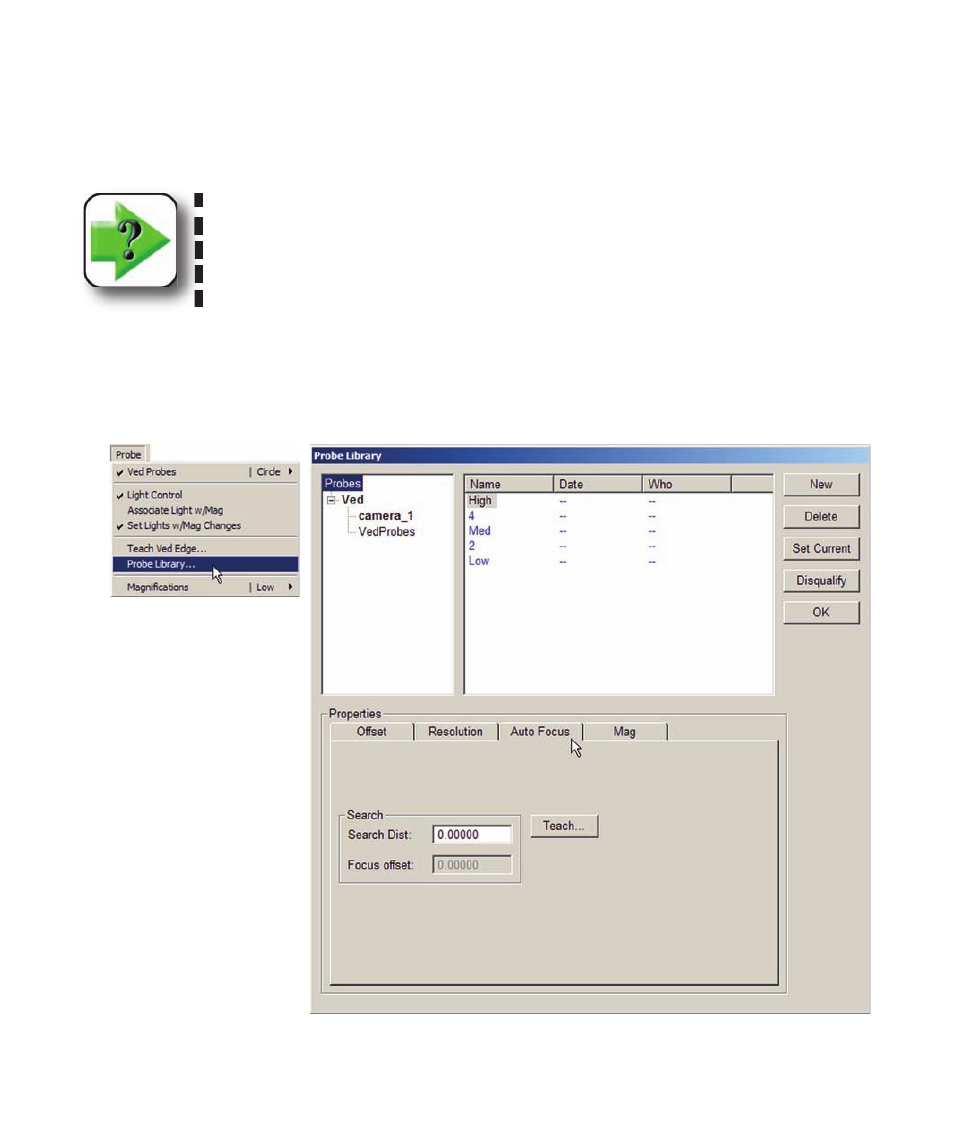

1 Click Probe Library to display the Probe Library screen, then click the Auto Focus tab in the lower
portion of the screen.
