52 QC5200 Series User’s Guide

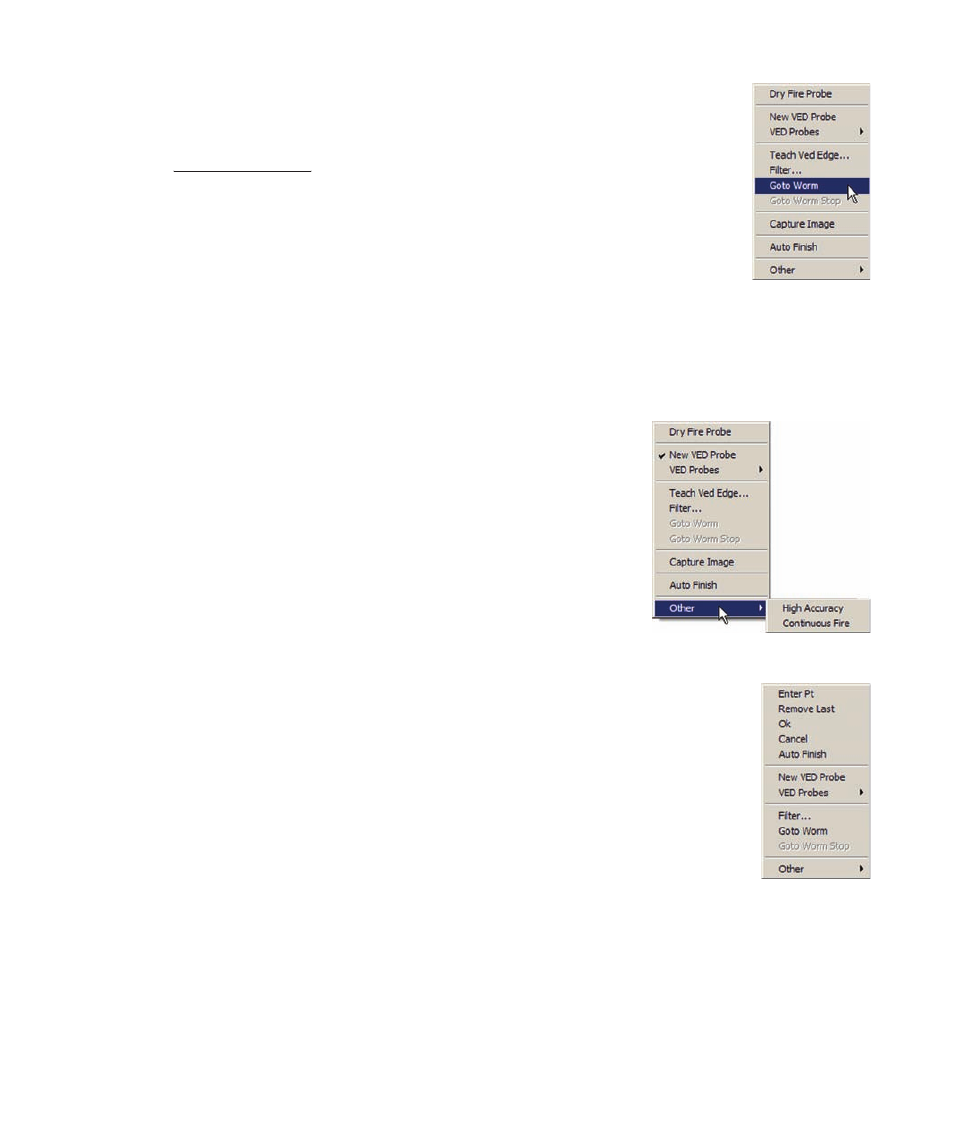

Goto Worm/Goto Worm Stop
Click Goto Worm or Goto Worm Stop to send the stage to the beginning or end of the
Worm probe path during a measurement session using the Worm probe. Details are
provided in Chapter 4: Probes Chapter 4: Probes.
Capture Image
Click Capture Image to capture the current camera image as a bmp file in the QC5000\
Parts folder. The file will be given a name that includes the time and date of the capture
operation.
Auto Finish
Click auto Finish to toggle the Auto Finish function on or off. When Auto Finish is enabled, a feature
measurement will be completed when a video probe is fired.
Other/High Accuracy
Click High Accuracy to toggle the High Accuracy measurement mode on
or off. When the High Accuracy mode is enabled, three sets of data will be
collected and averaged when a probe is fired. The average will be returned
as feature data.
Other/Continuous
Click Continuous to continuously fire the active video probe for probe per-
formance evaluations. Data will not be collected until the probe is fired by
the operator, but data points will be displayed at the probe continuously.
The Live Video window menu changes slightly during a measurement to the include
measurement functions Enter Pt, Remove Last, OK and Cancel.
Enter Pt
Click Enter Pt to acquire a data point or data points by firing the current probe.
Remove Last
Click Remove Last to remove the last acquired point from the current collection of data
points.
OK
Click OK to complete the current measurement and send acquired data to the Feature list.
Cancel
Click Cancel to cancel the current feature measurement.
