223
7
Reporting and
Templates

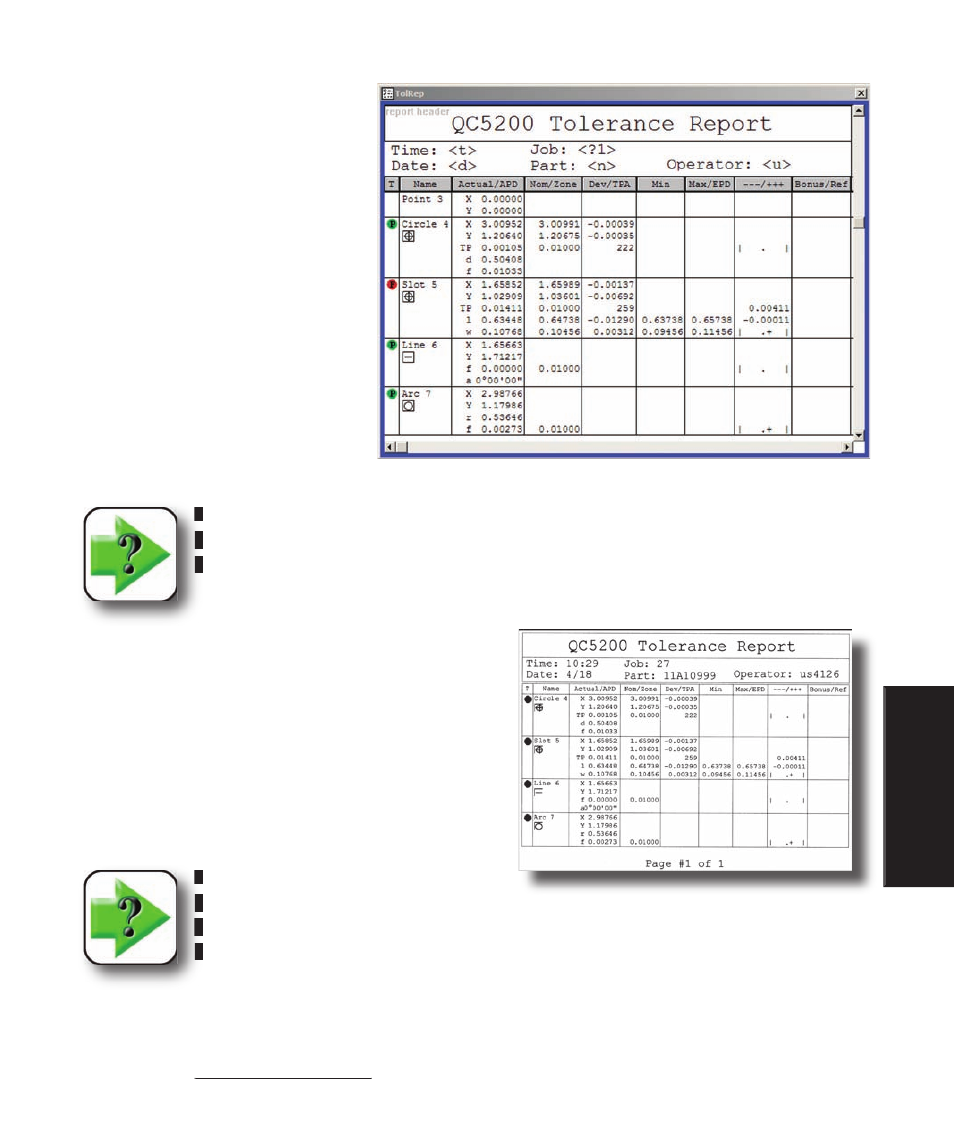

Tolerance templates
The Tolerance templates display
table of features and related tolerance
measurement data collected during a
manual work session or during one
program run. The Tolerance tem-
plates are configured and formatted
to print reports of tolerance results
in a few common formats for the
Americas, Asia and Europe. The
TolRep (tolerance report) template is
shown in this description. The Toler-
ance templates are configured and
formatted to print reports of toler-
ance results that satisfy most typical
requirements.
NOTE
The contents of the Tolerance templates are cleared by the system at the beginning of
each program run.
The default Tolerance templates display feature names,
pass/fail icons, tolerance icons, nominal values and tol-
erance results. The template can also displays a report
header that includes time, date, part number, job number,
and operator identification. All data and header informa-
tion is entered automatically by the computer except job
number. The system prompts the user for a job number
when the report is printed. Headers and footers can be
edited to fill specific reporting requirements.
NOTE
Configuration and formatting of tem-
plate headers is discussed later in this
chapter.
As shown here, the organization of feature tolerance data is horizontal. For example, all results for a given
feature are contained in a horizontal row. Table cells can contain multiple results.
Please refer to Chapter 6: Tolerancing Chapter 6: Tolerancing for additional details regarding tolerances.
Typical Tolerance report template printout
Template Descriptions
