Lines constructed from a point and a circle
Select the desired point and circle features, click Measure Line and then click
OK. The new line feature will be constructed from the point to the center of
the circle, and will be shown in the Features template, Part View window and
Results window. Right-click the Results window to show alternative line
features.
Line constructed from a point and a slot
Select the desired point and slot features, click Measure Line and then click
OK. The new line feature will be constructed from the point to the center of
the slot, and will be shown in the Features template, Part View window and
Results window.
Lines constructed from a point and an arc
Select the desired point and arc features, click Measure Line and then click
OK. The new line feature will be constructed from the point to the center of
the arc radius, and will be shown in the Features template, Part View window
and Results window. Right-click the Results window to show alternative line
features.

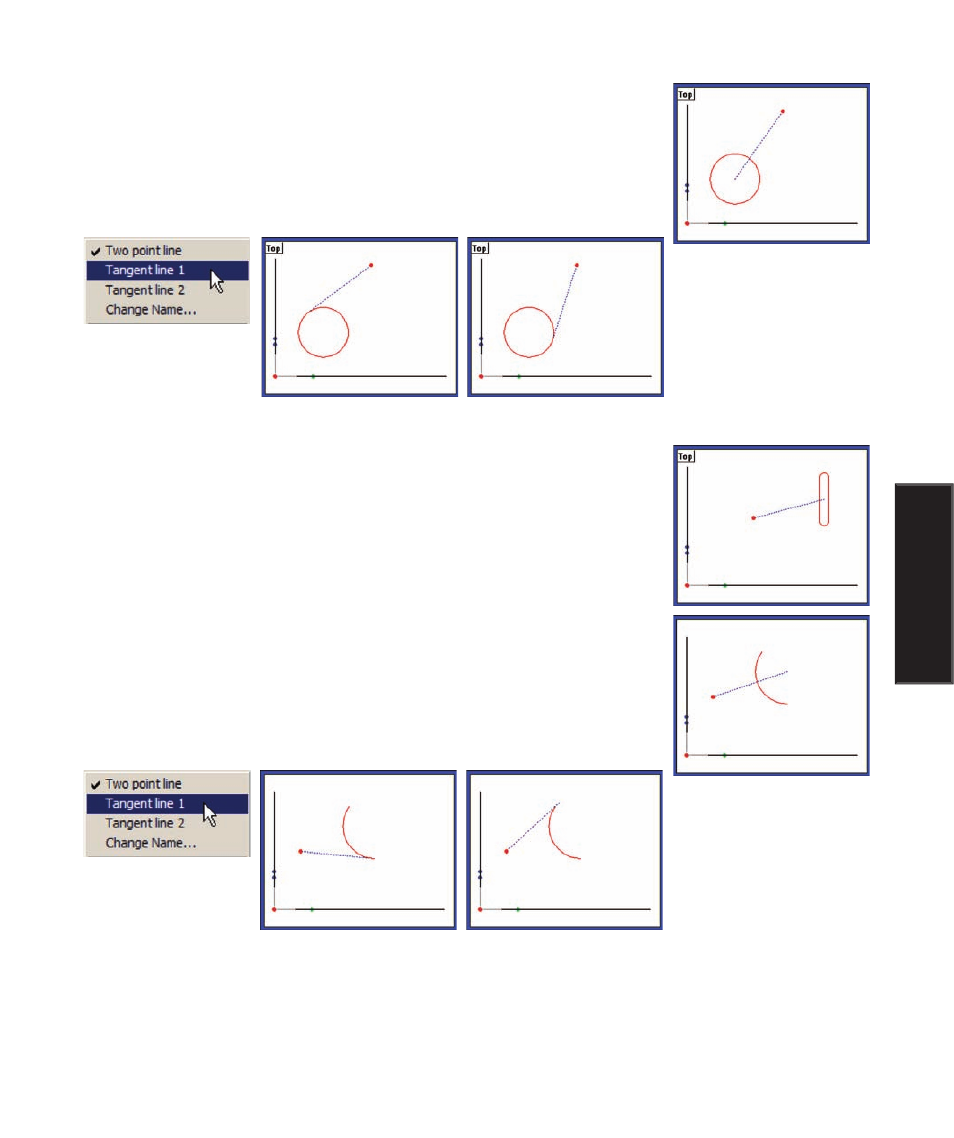

Right-click the Results
window to display an
alternative feature
Tangent line 1 Tangent line 2
Right-click the Results
window to display an
alternative feature
Tangent line 1 Tangent line 2
