5-10 Xpanel User Manual
Adding events and actions to primitives and objects
7. Add and configure another DSK State tally event to execute actions when Xpanel
receives a tally from the device that keyer 1 is cut down (figure
5-3 ).
a. Click the A DD TALLY EVENT button.
b. In the A DD N EW T ALLY E VENT window, select the channel (or the channel selector)
and the device.
c. In the T ALLY section, expand the T ALLIES category and select DSK S TATE .
d. In the T ALLY VARIABLES section, set the K EYER filter value to 1 and S TATE filter value to 0.
e. Click OK.
The O N T ALLY (DSK S TATE -F ILTERED ) tally event is added to the Action Editor.

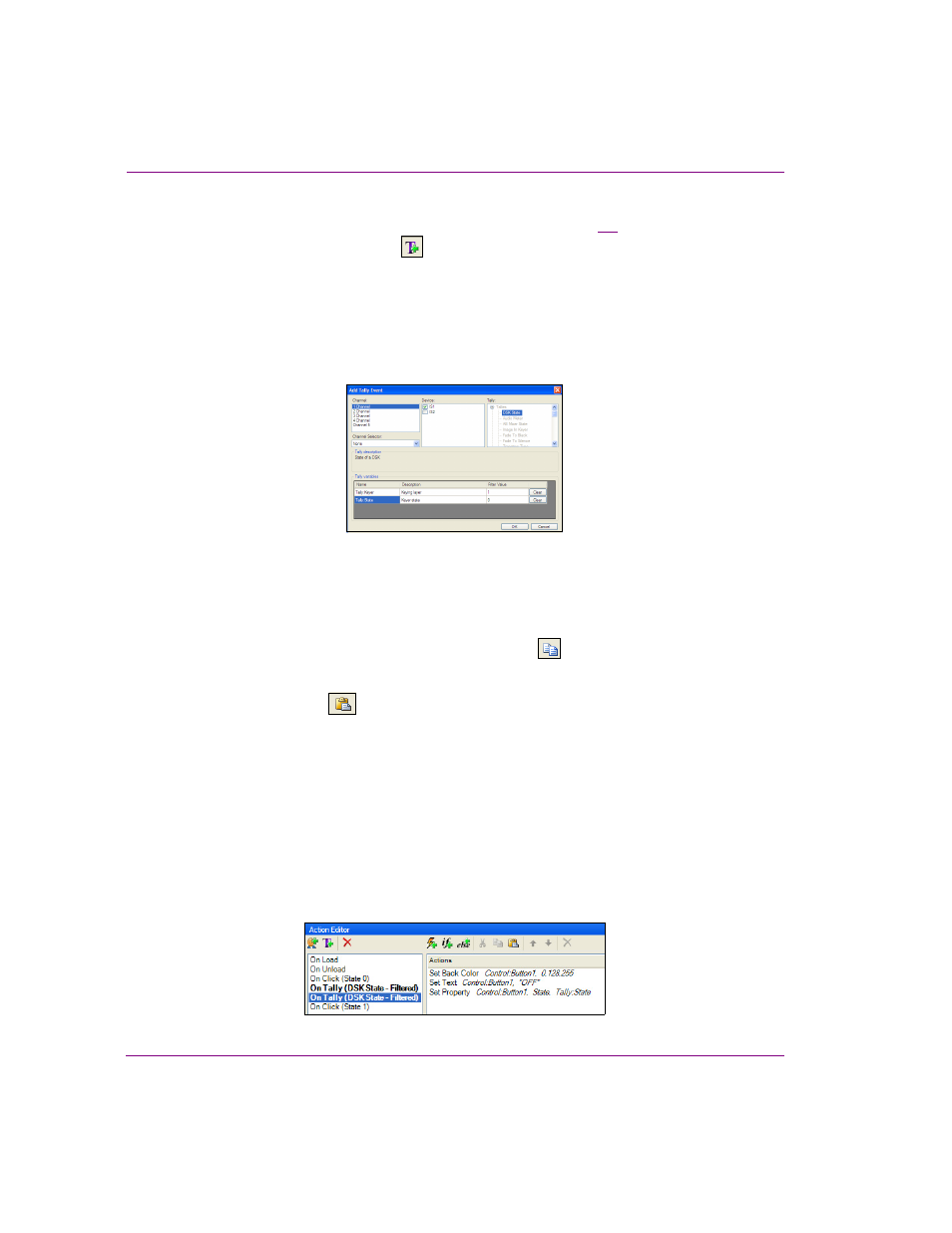

Figure 5-3. Add another DSK State tally event to the Button primitive
8. Since we want this second tally event to contain actions that are similar to those in the
first DSK State tally event, we’ll copy and paste the actions and then edit the necessary
action parameters.
a.
Select the first On Tally (DSK State - Filtered) tally event that you created.
b. While holding down the Shift key, click the Copy button from the Action
Editor’s toolbar.
c. Select the second On Tally (DSK State - Filtered) tally event that you created and
click the Paste
button.
The second DSK State tally event now contains the exact same actions as the first DSK
State tally event.
9. Edit the action parameters for the Set Back Color and Set Text actions (do not edit
the Set Property action):
a.
Select the Set Back Color action and edit its parameters to:
• T
ARGET : Control:Button1
• C OLOR : 0,128,255
b. Select the Set Text action and edit its parameters to:
• T
ARGET : Control:Button1
• S OURCE : OFF
