76
K2 AppCenter User Manual 05 April 2010
Chapter 5 Playing and editing clips

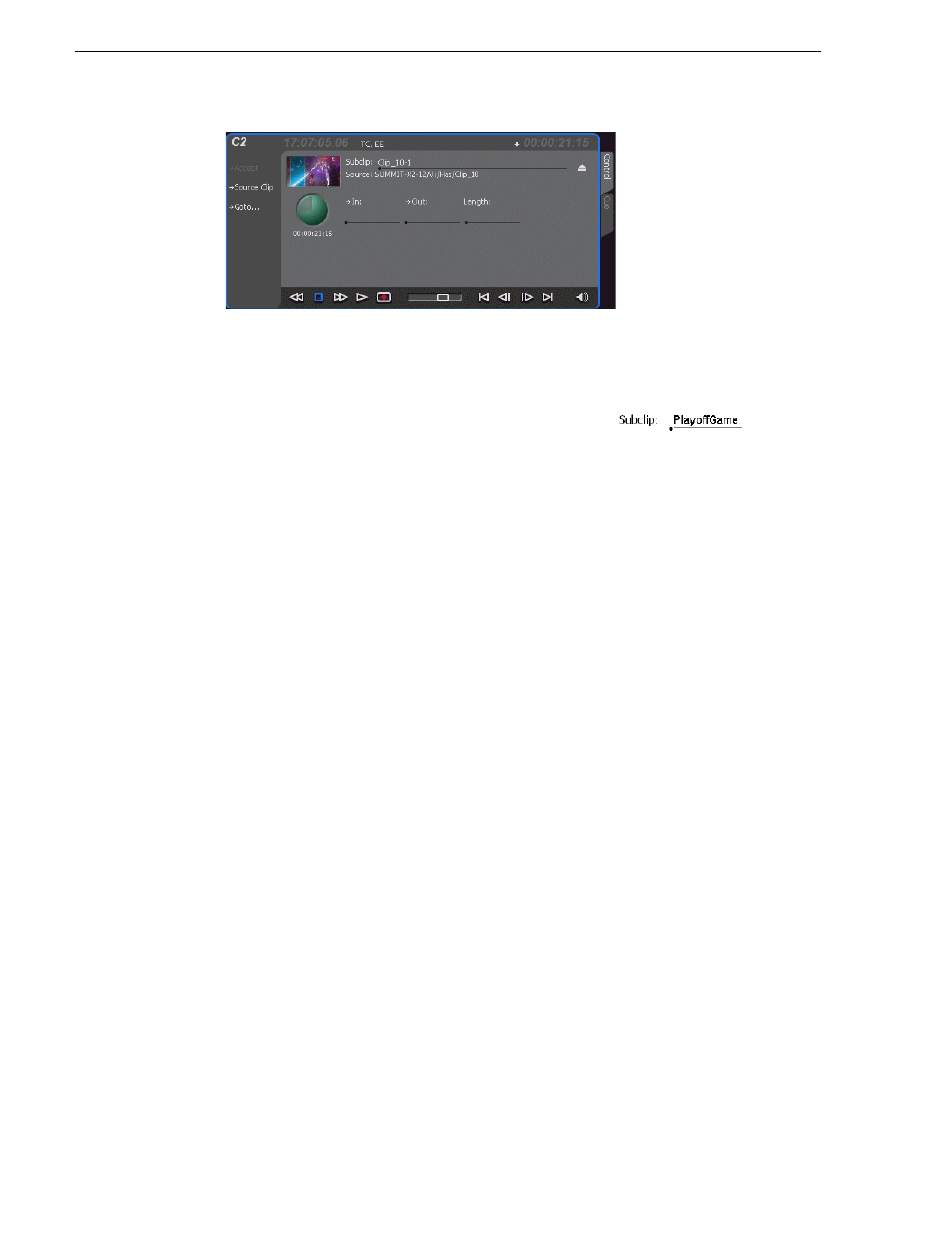

The Subclip display appears with a new subclip loaded. The
In
and
Out
buttons are
flashing indicating no mark-in or mark-out points are defined. The default subclip
name follows the form -, for example, if the source
clip name is PlayoffGame, the subclip name is PlayoffGame-1.
3. To rename the subclip, click the subclip name control , and
enter the new name in the Clip Name dialog, then click
OK
, or press
Enter
.
Renaming the subclip creates a new seed name. For example, if you rename the
subclip PlayoffGame-1 to Highlight, subsequent subclips created are named
Highlight-1 , Highlight-2, and so on.
4. Enter the subclip marks as follows:
a. Using the transport controls, position the clip to the desired frame for mark-in,
then click the
In
button.
b. Using the transport controls, position the clip to the desired frame for mark-out,
then click the
Out
button.
Alternatively: Select the mark-in or mark-out timecode entry controls and enter
a specific timecode value.
Alternatively: Select the
Length
timecode entry control and enter a clip length,
then create either a mark-in or a mark-out point. If the source media has been
erased, the subclip retains 1 second of media on each side of the mark-in and
mark-out points. See “Moving clip mark-in/mark-out points” on page 54 .
NOTE: Until you enter the subclip marks, the Accept button is grayed out.
5. In Subclip view, click
Accept
.
The subclip is saved and ejected, then Player returns to Subclip view with a new
subclip name loaded.
NOTE: Clicking the Source Clip button or the
Eject
button prior to pressing the
Accept
button closes Subclip mode without creating a new clip. Both of these buttons
are used to exit Subclip mode.
About Auto Subclip mode
In Auto-Subclip mode, you simply set mark-in, then set mark-out. On setting
mark-out, the subclip is automatically generated and ejected, and a new subclip name
is loaded in the Subclip display.
