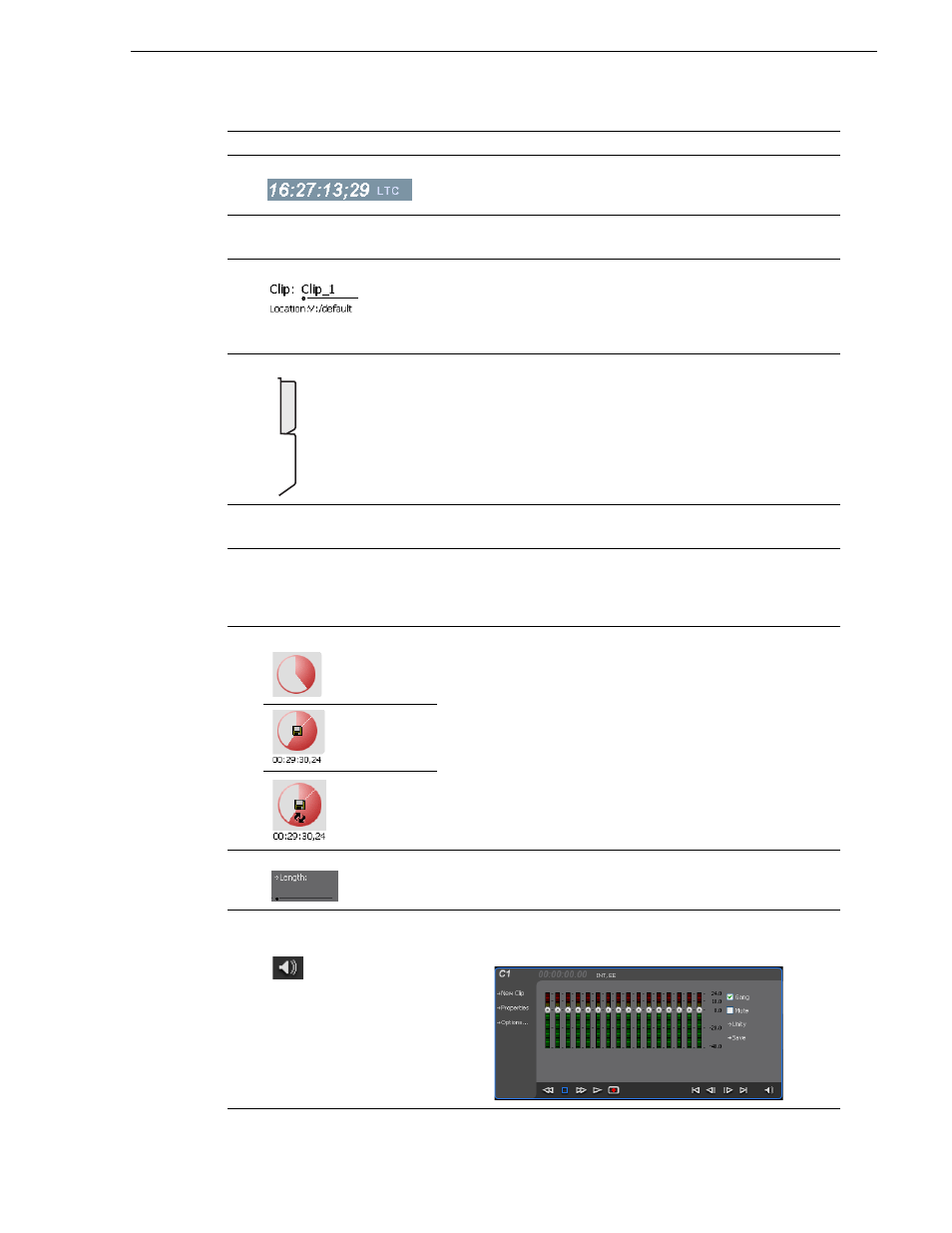

Guide to using the Recorder/Player application: Control view

3

Timecode Source

The text displayed to the right of current timecode indicates the
timecode source.

See “Changing the timecode source” on page 55

.

4

Loop Thru Mode

This text indicates if “E-to-E (LoopThru) mode” is selected. See
Record Menu below.

5

Clip Name Edit Control

Displays the clip’s name and location in the media storage system. To
rename the clip, click and enter text. To change the current bin, i.e.
the target location for recording clips, refer to

“Changing the current

bin” on page 56

. You can use the Clips pane to manage and organize

clips.

6

View tabs

These tabs toggle between Control view and Cue Points view.

7

ChannelFlex

If the channel is configured to be a ChannelFlex type, it is displayed
in this area. ChannelFlex requires AppCenter Elite license.

8

Application

A drop-down list allows you to select between none, Playlist, Player/
Recorder, or additional selections if licensed for AppCenter Elite. If
the Player/Recorder application is selected, you can play or record
using the pane controls.

9

Time Dome

Record
Progress

This multi-function indicator displays either record progress only, or
available storage and record progress. The Time Dome also indicates
when the record channel is in Continuous Record mode.
Available storage is estimated using the amount of free disk space and
the video compression settings for the channel.
The record progress indicator makes one revolution every 10 seconds
in normal record, or one revolution during a fixed length recording.
To change the Time Dome function, right-click the Time Dome, then
choose an application from the pop-up menu.

Available
Storage

Available
Storage and
Continuous
Record Mode

10

Length

Select the Length control to enter the clip length, then choose record.
Recording continues until you choose stop or the specified length is
reached.

11

Meter bar button

Displays the Meter bar, which contains the audio record level controls
and signal meters. Changes to the audio level are saved for the
channel.

Control

Description and User Operation

Control

Cue
