INDIGO AV Mixer User Manual 97
Audio Mixer Main Menu
7.4 Audio Mixer Main Menu
Use the AUDIO MIXER main menu to control all audio channels. Assign the
input source and select the operation mode in the SETUP main menu (see
Audio Submenu on page 129).
You can perform the following actions in the submenus:
• Set audio channel volume and pan (see page 97).
• Adjust an audio channel’s EQ and gain settings (see page 99).
• Set the Main Out, Sub-Out, and Phones Out level (see page 101).
7.4.1 Mixer Submenu
Use the MIXER submenu to control audio channel volume and pan (bal-
ance). The number and type (Stereo or Micro) of the channels displayed in
this submenu depend on the
Operation Mode selection in the SETUP main
menu (see Audio Submenu on page 129).

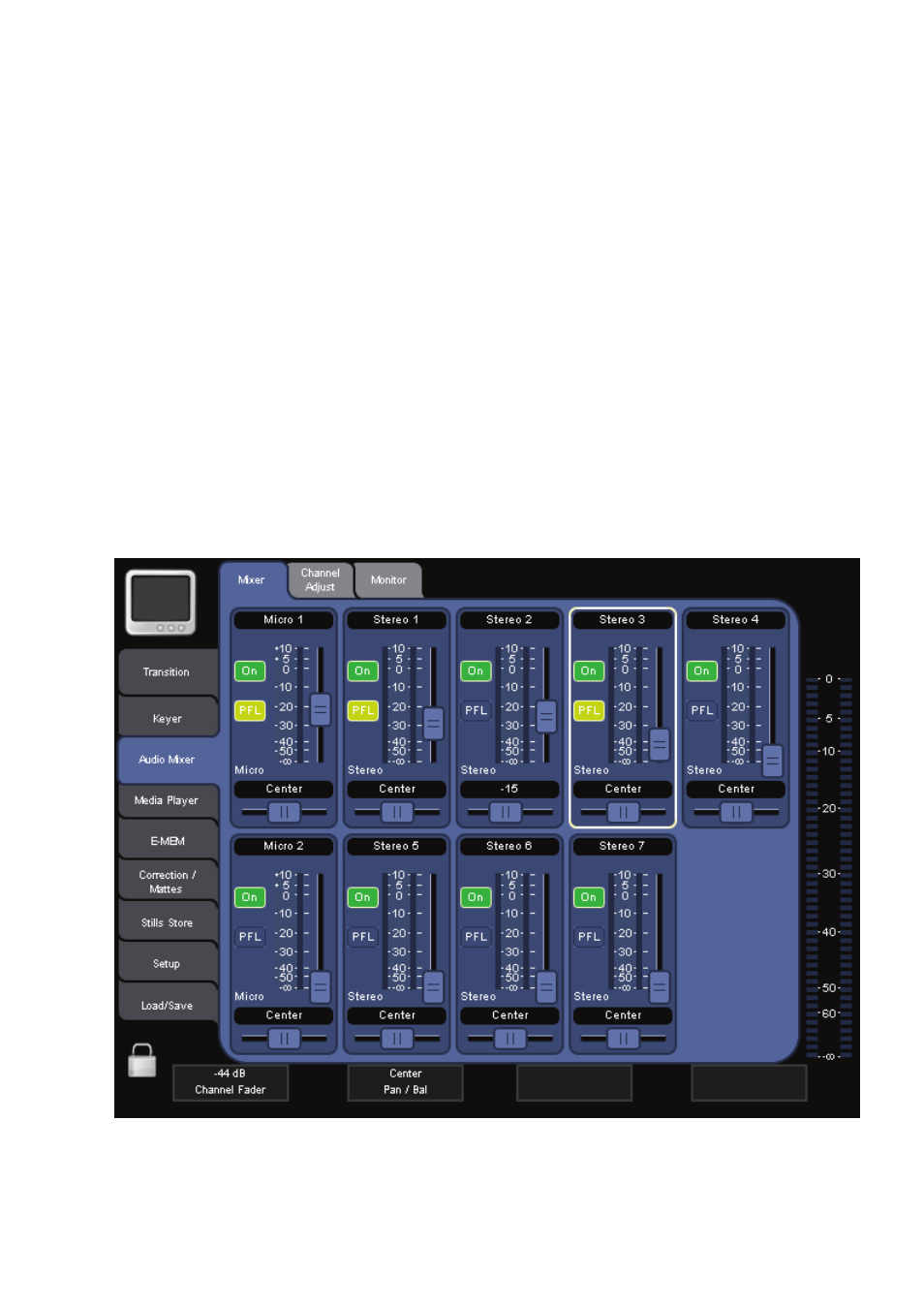

Figure 49. Mixer submenu
