INDIGO AV Mixer User Manual 23
Audio Connections
3.6 Audio Connections
The INDIGO AV Mixer provides various analog and digital audio inputs
and outputs.
3.6.1 Audio Inputs Overview

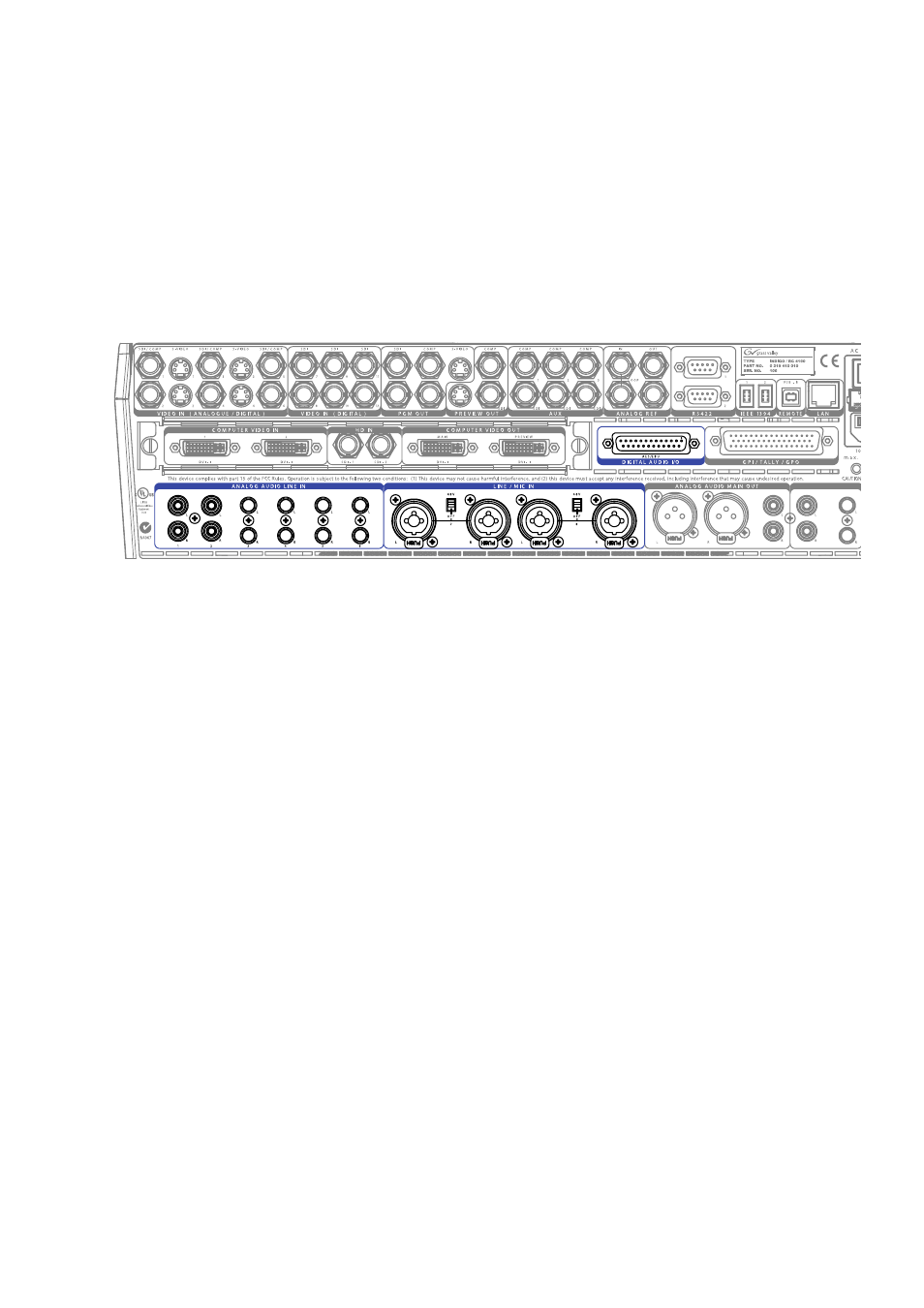

The following figure shows the audio inputs of the INDIGO AV Mixer:
Figure 8. Audio input connections
Note All XLR connectors of the INDIGO AV Mixer correspond to
IEC 61076-2-103. Only use corresponding plugs, for example, NEUTRIK.
Plugs that do not match this standard may become stuck in the jack.
3.6.2 Audio Input Types
You can connect various analog and digital audio input signals to the
INDIGO AV Mixer
.
Note The maximum amount of concurrently usable audio channels is 8.
Analog Audio Input
The INDIGO AV Mixer provides the following connections for analog
audio input:
• 2 x RCA (unbalanced)
• 4 x TRS 1/4’’ (balanced)
