84 INDIGO AV Mixer User Manual
Section 7 — Menus
Source
Select the input sources for the Fill and the Key signals from the lists. If
you selected
PiP as key type, only the Fill list is displayed here.

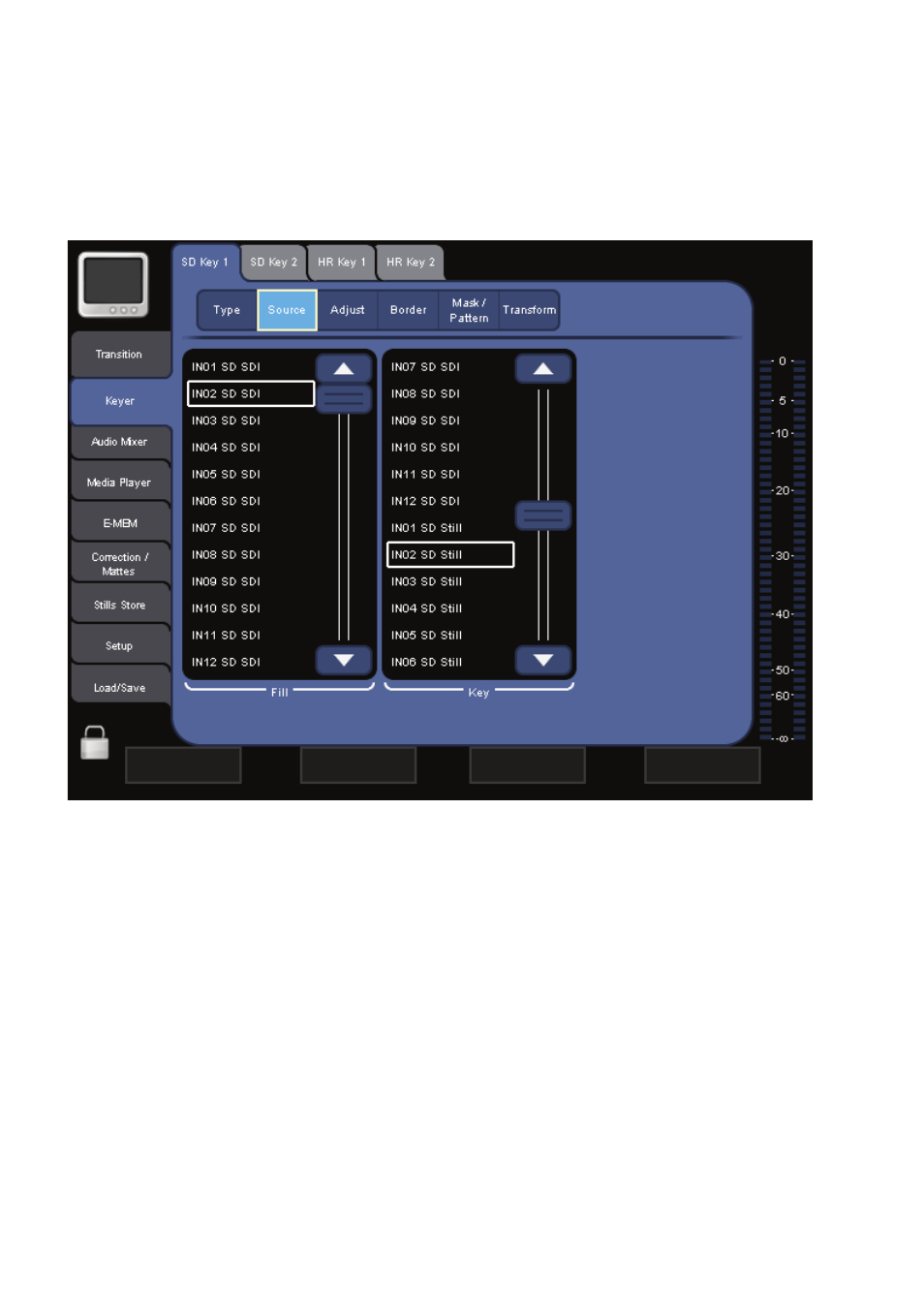

Figure 42. Selecting the source of the fill and the key signal
The input sources can either be one of the video input channels or a saved
Still (see Stills Store Main Menu on page 112).
Note For HR keyers, the functionality is basically the same, but you can only select
a Fill signal from one of the HR inputs.
You can also select the sources via the crossbars:
• Fill
Press the corresponding button on the Bus Crossbar.
• Key
Press and hold the desired BUS DELEGATION button (for example, Key 1 )
and select the corresponding source from the Bus Crossbar.
