INDIGO AV Mixer User Manual 43
Overview of Control Features
Transition Lever Arm

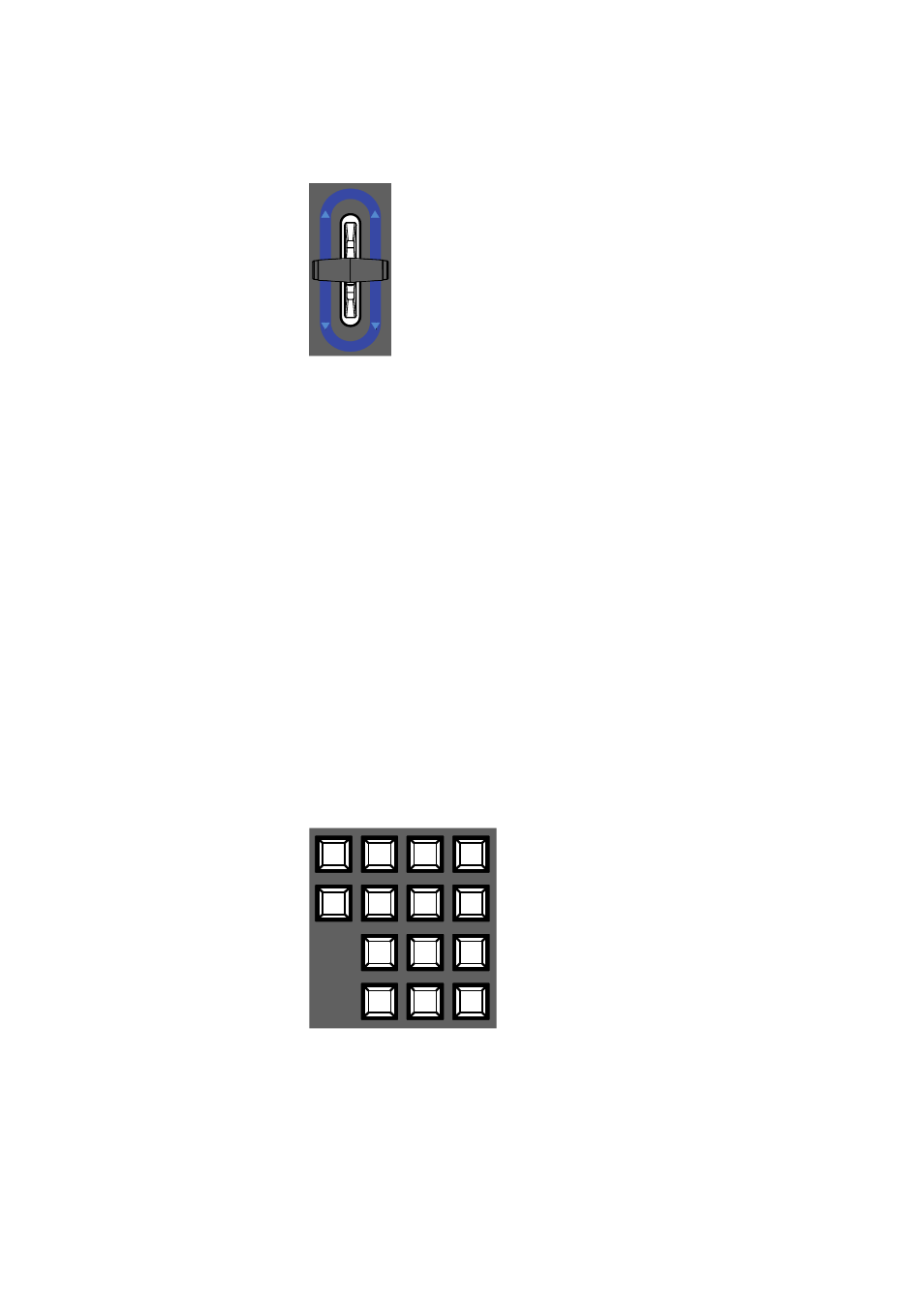

Figure 27. Transition Lever Arm
The Transition Lever Arm is used to manually perform a transition. You can
move the lever in either direction to run a transition due to the flip-flop
architecture of the buses. Moving the lever from one limit to the other per-
forms a complete transition.
It is possible to start a transition with the lever, then stop moving the lever
at any point, reverse its direction, and even return it to the original limit
without completing the transition.
5.1.6 Numeric Input Subpanel
Use the Numeric Input Subpanel to enter numbers, for example to enter
the standardized identification number for effects in the
EFFECTS submenu.
Use the Del button to delete the last digit entered and press the Enter button
to confirm your entries.
You can also adjust parameter values via the Numeric Input Subpanel. In
this case, the
Shift button outputs the decimal point (“.”) and the Learn
button outputs the minus sign (“-”).
Figure 28. Numeric Input Subpanel
,EARN
T FI H 3
R E T N % L E $
