120 INDIGO AV Mixer User Manual
Section 7 — Menus
7.9.2 Video Submenu
Use this submenu to set up the video inputs and outputs.
Use the buttons in the Parameter Navigation Area on the top to access the
following sections:
Video Input Settings
In this section, you define the signal type of every video channel input.
Depending on the input (see Video Inputs on page 19), you can select:
• SDI (for all sources, except 13 to 15 [HR])
• Composite (for sources 1 to 6)
• S-Video (for sources 1 to 4)
• Downscaled (for sources 9 and 10)
• DV IEEE 1394 (for sources 11 and 12)
• VGA, DVI, SDI HD (for sources 13 and 14 [HR])
• Internal SD (for sources 13 to 15 [HR])

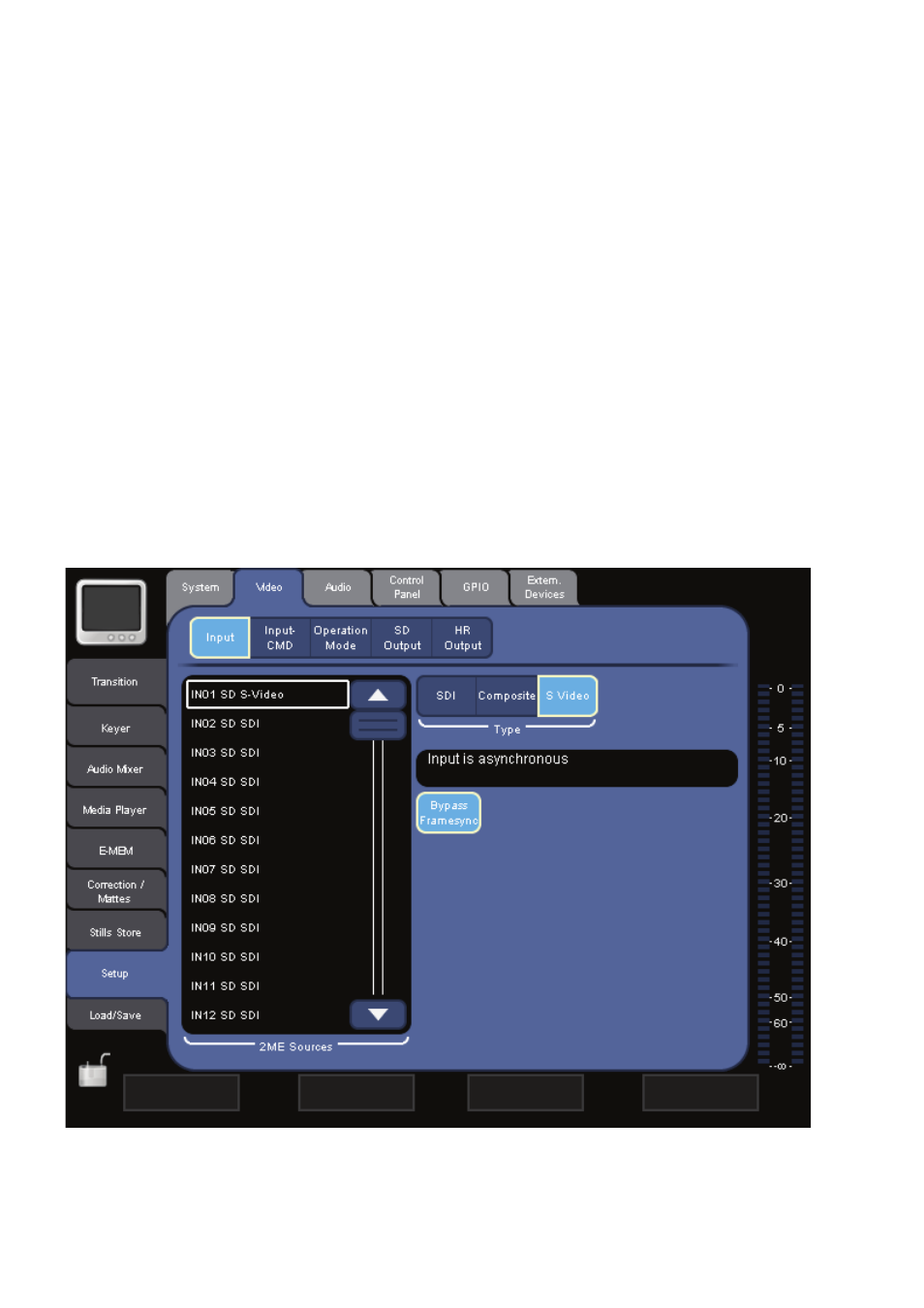

Figure 60. Video input settings
