INDIGO AV Mixer User Manual 25
Audio Connections
3.6.3 Audio Outputs Overview

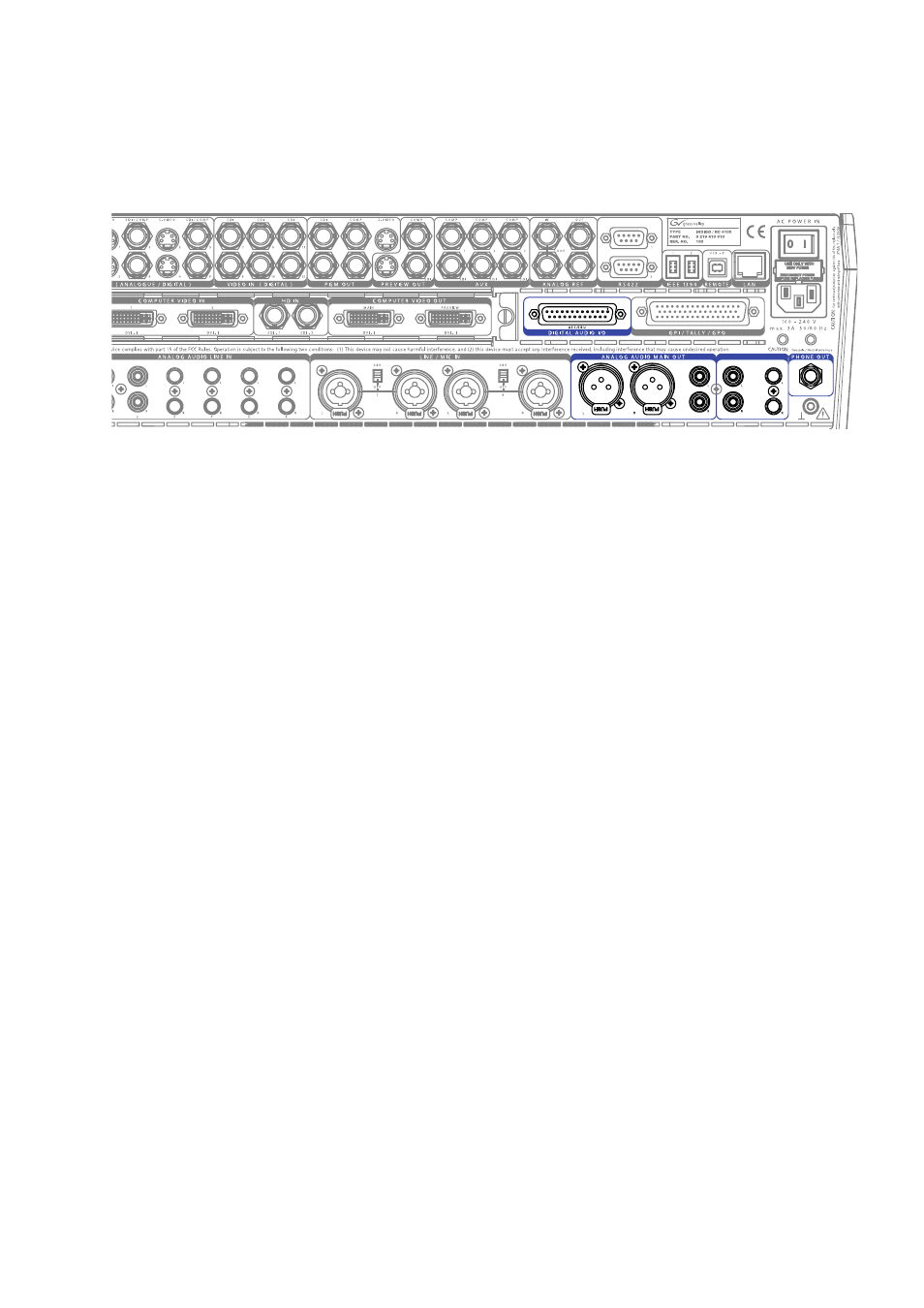

The following figure shows the audio outputs of the INDIGO AV Mixer:
Figure 10. Audio output connections
3.6.4 Audio Output Types
The INDIGO AV Mixer provides various analog and digital audio out-
puts.
Analog Audio Output
The outputs listed below are sorted by sections (as labeled on the rear
panel), in order to allow a quick and easy overview:
Section ANALOG AUDIO MAIN OUT
These outputs can be used concurrently:
• 1 x XLR (balanced)
• 1 x RCA (unbalanced)
Section SUB-OUT
Sub-Out is a fully featured mixing unit. These outputs are similar to
Main Out , but additionally provide delayed output functionality (for
example, for a second pair of speakers in the middle of a bigger area or
hall). They can be used concurrently:
• 1 x RCA (unbalanced)
• 1 x TRS 1/4’’ (unbalanced)
Headphones
There are 2 headphones connectors, one on the top panel and one on the
rear panel. The headphone connectors may also be used for monitoring,
when connecting speakers instead of headphones.
