INDIGO AV Mixer User Manual 95
Keyer Main Menu
HR Keys
For every HR keyer type, you can modify the following properties:
• Pan/Zoom
• 2D Position
• 2D Size

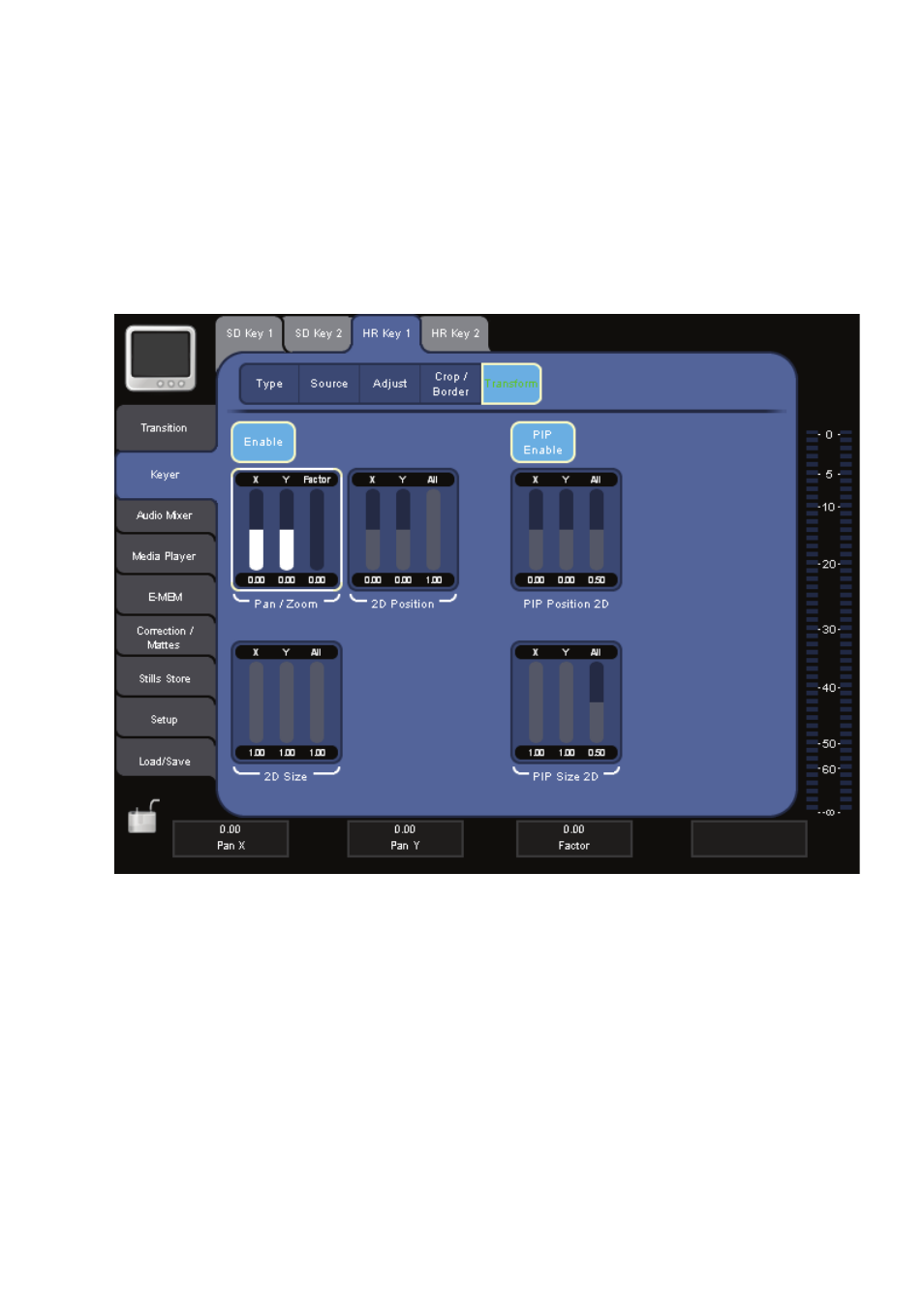

Figure 48. Modifying the key size, position, and PiP parameters for HR keys
Select the property you want to modify by touching the corresponding
pad and use the Digipots to adjust the parameters.
• Use the parameters in the Pan/Zoom display field to modify the posi-
tion and the size of the key.
Note Alternatively, you can use the Joystick to adjust position and size.
• Use the parameters in the 2D Position display field to move the center
of the key along the x- and y-axis.
