74 INDIGO AV Mixer User Manual
Section 7 — Menus
7.1.1 Menu Navigation and Organization
The Menu Display consists of the following sections:
(1) Main Menu tabs
(2) Submenu tabs
(3) Parameter Navigation Area
(4) Parameter Edit Area
(5) Display of the parameters that are adjustable via the Digipots
(6) Audio Display
(7) Onscreen Preview button
(8) Auto Menu Delegation button

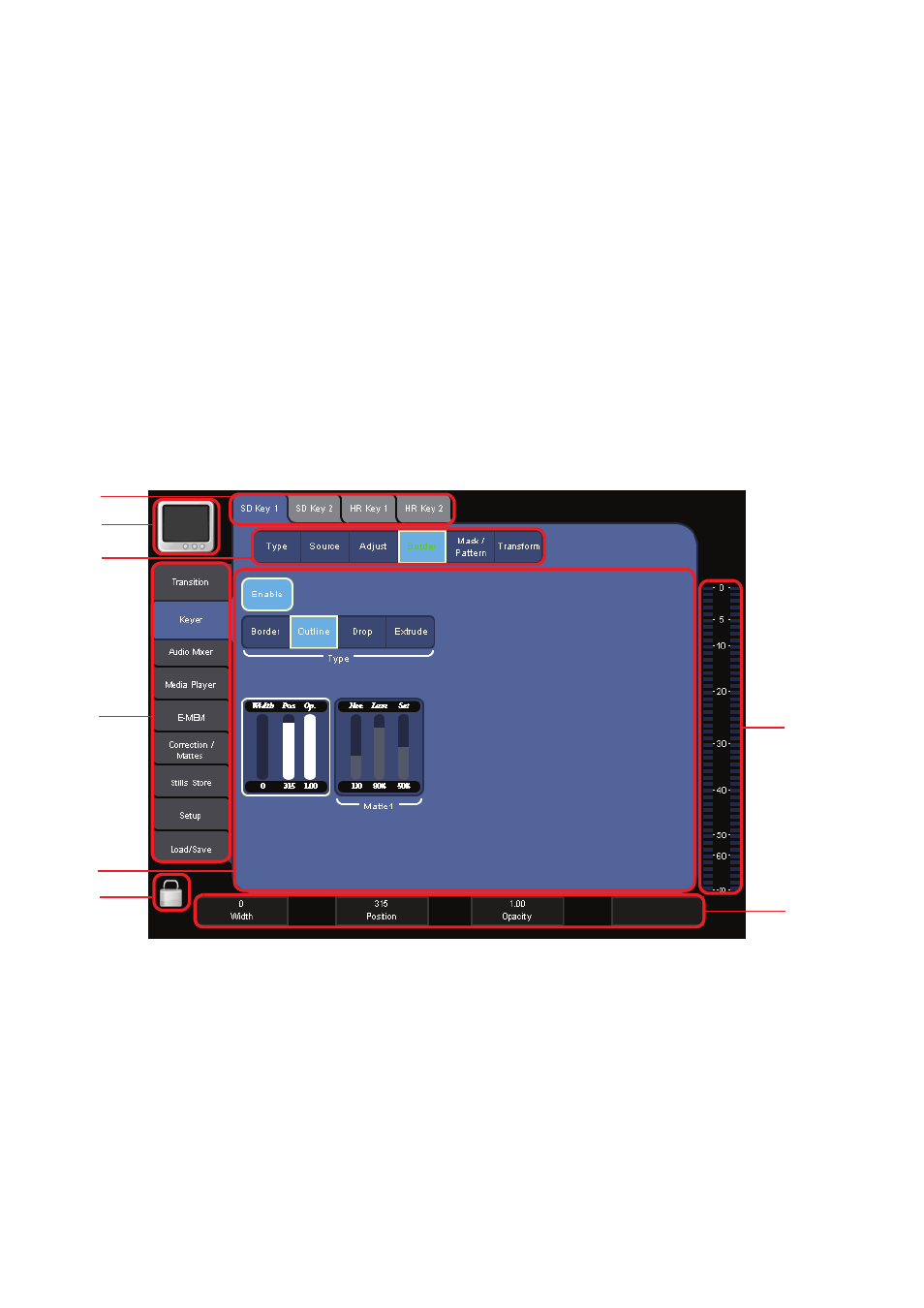

Figure 36. Example of the Graphical User Interface
You can easily navigate through the menus by touching the desired Main
Menu
on the left and the Submenus on the top of the screen.
In the menus, use the Parameter Navigation Area in the upper part to
select the parameter you want to modify.
In the Parameter Edit Area in the middle and by using the Digipots, you
can then adjust the parameter values.
