Page 76
76
INDIGO AV Mixer
User Manual
Section 7 — Menus
7.1.3 Onscreen Preview
Use the
Onscreen Preview
button in the upper left corner of the Touch Screen
to open/close the Onscreen Preview video overlay window.
The Onscreen Preview window lets you display program, preview, and
aux1/2 signals of SD outputs directly on the Touch Screen. Thus, you can
check the signal output or adjust a chroma key without having to use an
external monitor.

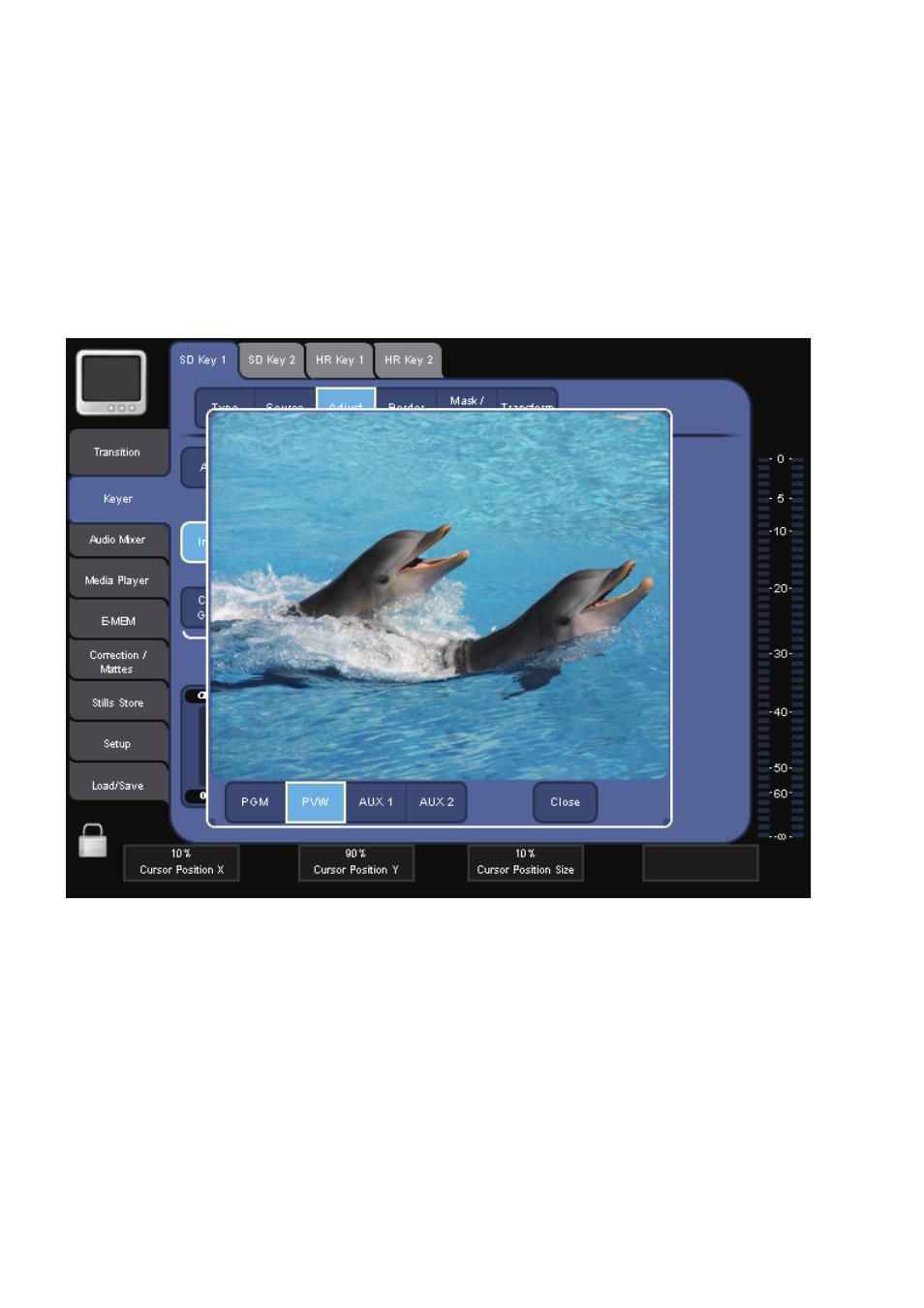

Figure 39. Onscreen Preview window
Note
There is no onscreen preview available for HiRes PGM or PVW.
