INDIGO AV Mixer User Manual 29
USB Ports
3.8 USB Ports
The INDIGO AV Mixer provides 3 USB ports: one on the rear panel and
two on the top panel.
Note The USB port on the rear panel is for future use and currently without func-
tion.
The USB ports on the top panel allow you to connect USB devices like USB
sticks or USB drives to store and load data (for example, user settings or
images).

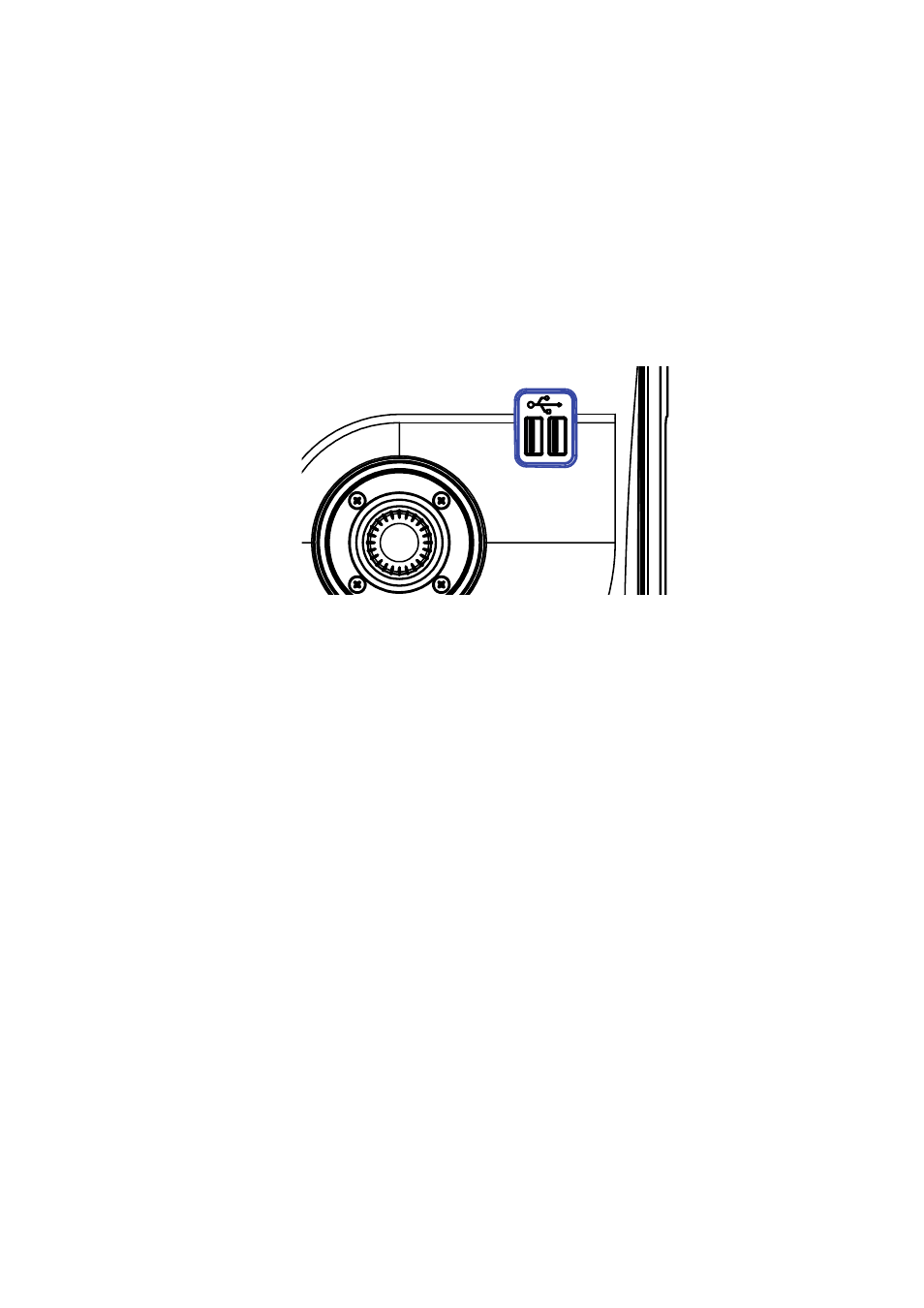

Figure 15. USB ports on the top panel
Note To ensure proper function, use only USB sticks that are tested and confirmed
by GrassValley.
3.9 Adapters
3.9.1 DVI-I to VGA
The DVI-I outputs of the INDIGO AV Mixer provide both DVI and VGA
signals. If you want to connect standard VGA monitors you need an
appropriate adapter or breakout cable.
3.9.2 DVI-I to DVI-D
You do not need an adapter to connect DVI-D devices to the DVI-I inputs
and outputs of the INDIGO AV Mixer.
3.9.3 DVI-I to HDMI
You can use conventional adapters to connect HDMI devices to the DVI-I
inputs and outputs of the INDIGO AV Mixer.
