INDIGO AV Mixer User Manual 129
Setup Main Menu
7.9.3 Audio Submenu
Use this submenu to set up the audio operation mode and check the audio
input and output settings.
Use the buttons in the Parameter Navigation Area on the top to access the
following sections:
Audio Input
In this section, you can select which of the physical Audio Inputs is
assigned to which of the eight internal audio channels, called Mixer
Inputs
. The following audio inputs are available:
• RCA
• TRS (TRS 1/4’’ Phone)
• XLR
• AES
• SDI
• SineGen (sine wave generator)

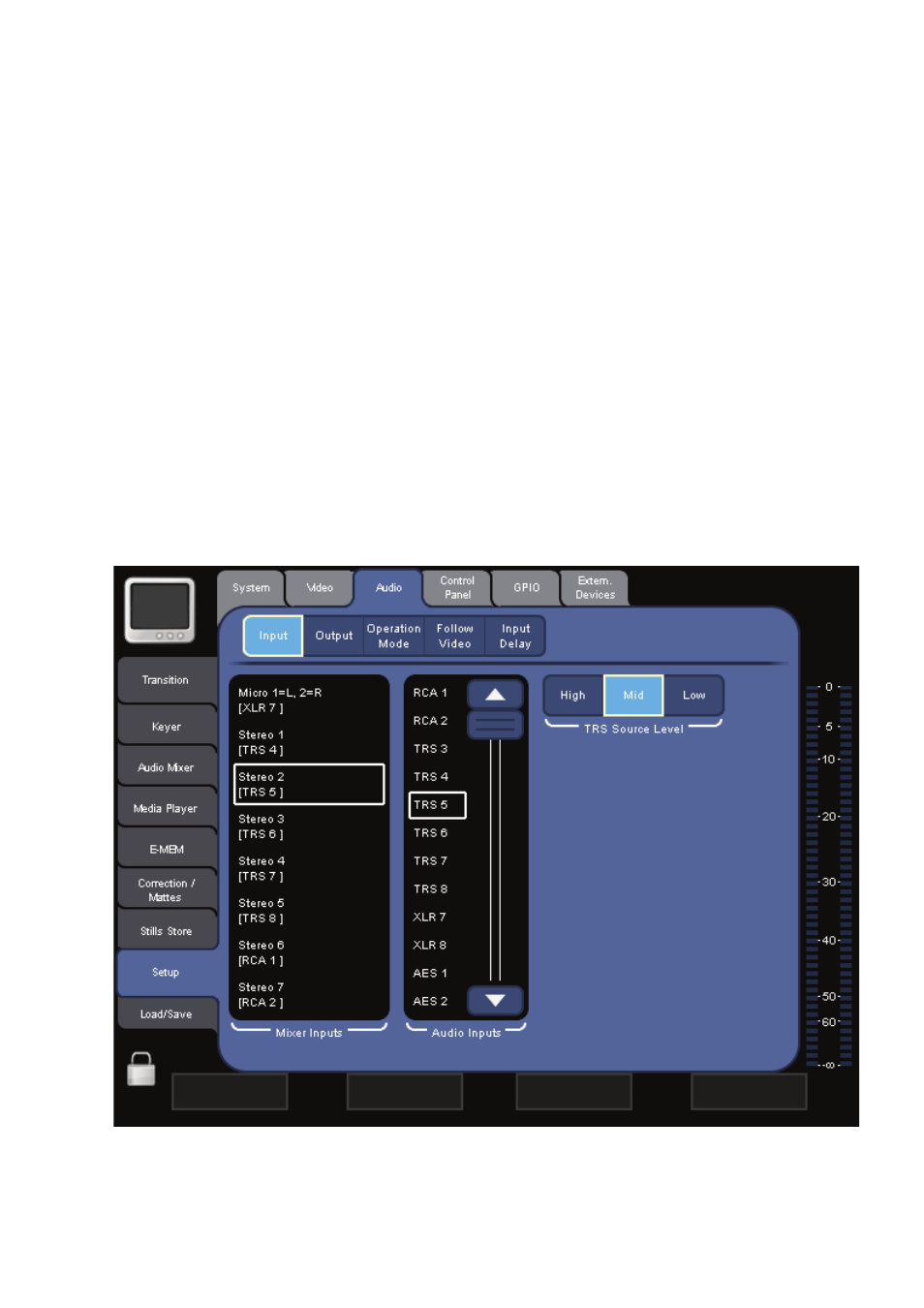

Figure 65. Audio input assignment
