5.2 Selecting Sources
This section provides information on selecting sources as video and audio
signals, keys sources, and Stills.
Configure and route the input and output sources for both video and
audio signals in the
SETUP main menu (see Setup Main Menu on page 116).
5.2.1 Video

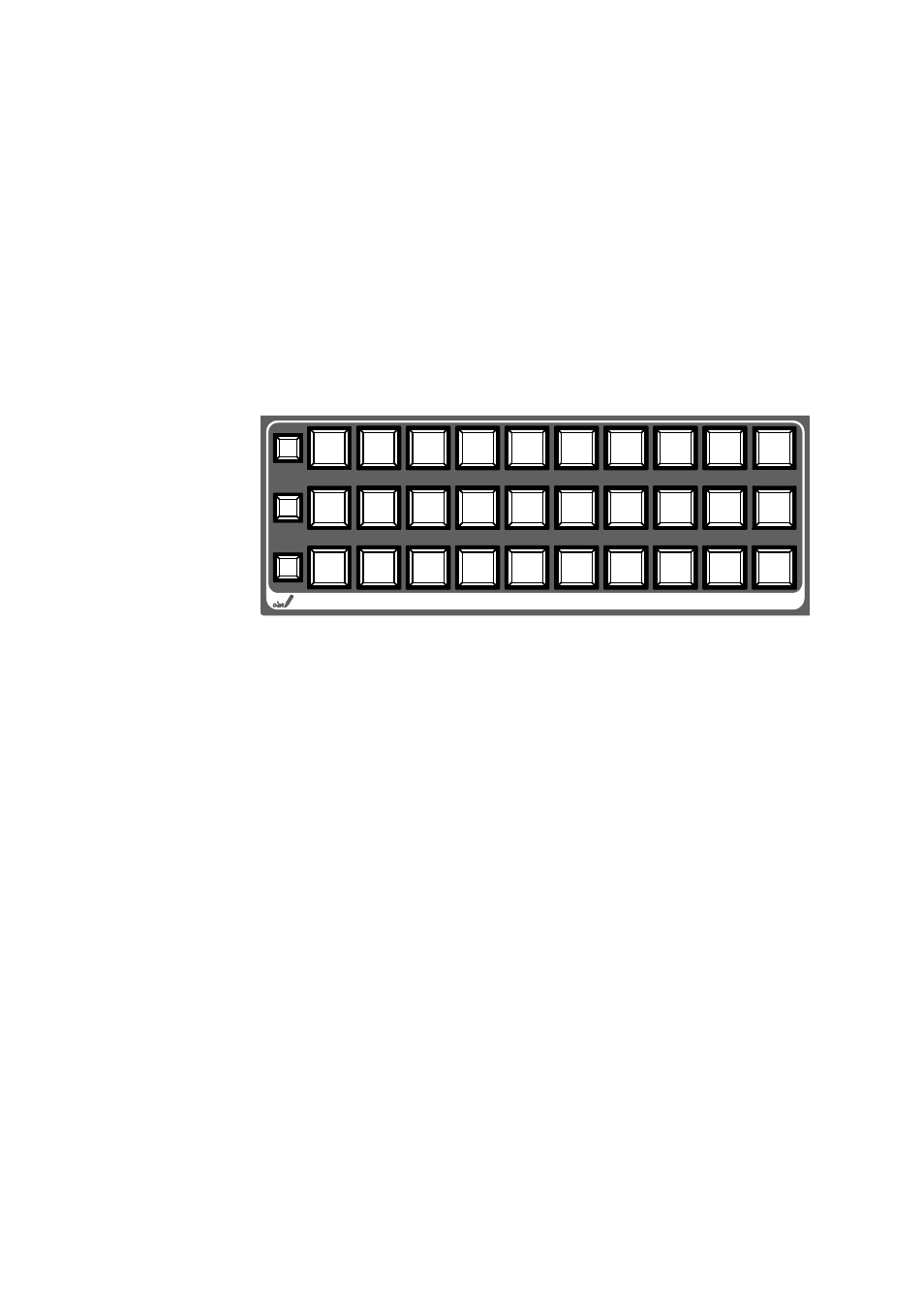

Select video signals with the crossbar buttons (see Crossbars for Bus and
Source Selection on page 40). Use the
SETUP main menu to assign video
sources to the buttons.
See also Video Settings on page 33 for information on configuring video set-
tings.
Video Sources
The video signals for the program monitors are selected in the middle
crossbar row, labeled as
BACKGROUND . Pressing another key in this row per-
forms a hard cut to another signal.
Select the input and output sources in the VIDEO submenu under SETUP (see
Video Submenu on page 120), and assign the signals to the crossbar buttons
in the
CONTROL PANEL submenu (see Control Panel Submenu on page 135).
Keys Sources, Auxes and Stills
Key and fill signals, and auxiliary outputs are selected in the top crossbar
row, labeled as
BUS . See Bus Delegation on page 39 for information on
selecting the types of sources.
Select and adjust the key and fill sources in the KEYERS main menu (see
Keyer Main Menu on page 83).
To save a Still (capture a video frame) from a currently displayed video,
use the Stills Store menu (see Stills Store Main Menu on page 112).
