Overview of Control Features
Digipots
The Digipots below the graphical display can be used to dial in parameter
values for functions displayed on the Touch Screen. Pressing a Digipot sets
the parameter value to default.
5.1.3 Delegation Subpanel

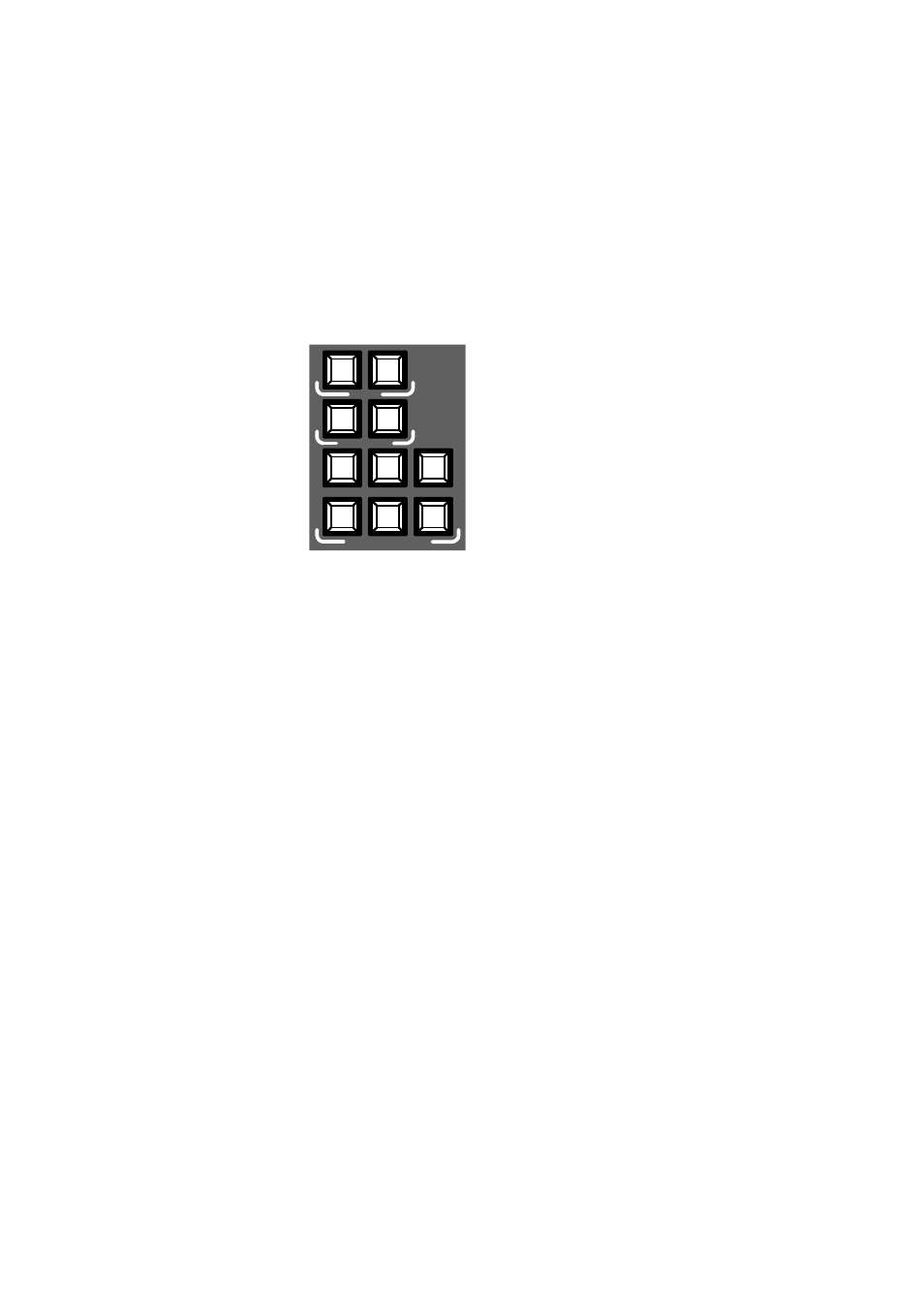

Figure 24. Delegation Subpanel
User
Use buttons
1
or
2
to quickly and directly access a specific point in the
menu hierarchy, for example, to call up Calibration in the
SETUP
main
menu.
To assign a specific menu screen to button
1
(or button
2)
, open the desired
menu screen and press and hold button
1
(or button
2)
for two seconds.
Delegate
Use the
DELEGATE
section to determine which M/E is active: SD or HiRes.
Bus Delegation
The INDIGO AV Mixer M/Es include multiple sources as well as keyers
and aux buses.
To simplify use, the INDIGO AV Mixer panels provide alternate buses
accessed by
BUS DELEGATION
buttons. Press a
BUS DELEGATION
button to
change which bus is affected by pressing a source select button on the
Bus Crossbar. You can select between
•
Key sources (
Key 1
or
Key 2
)
•
Auxiliary output sources (
Aux 1
to
Aux 3
)
See Selecting Sources on page 46 for further information.
Note
Auxiliary output delegation is only available for SD.
3$
(I 2 S
E
Y
E
+
Y
E
+
3
&
X
U
!
X
U
!
X
U
!
" 5 3 $ % , % ' ! 4 )/ .
5 3 2
%
$ % , % ' ! 4 %
