62 INDIGO AV Mixer User Manual
Section 5 — Basic Operation
An HR PiP is structured as follows:
(1) Background
(2) PiP of HR image
(3) HR image
(4) Screen border .

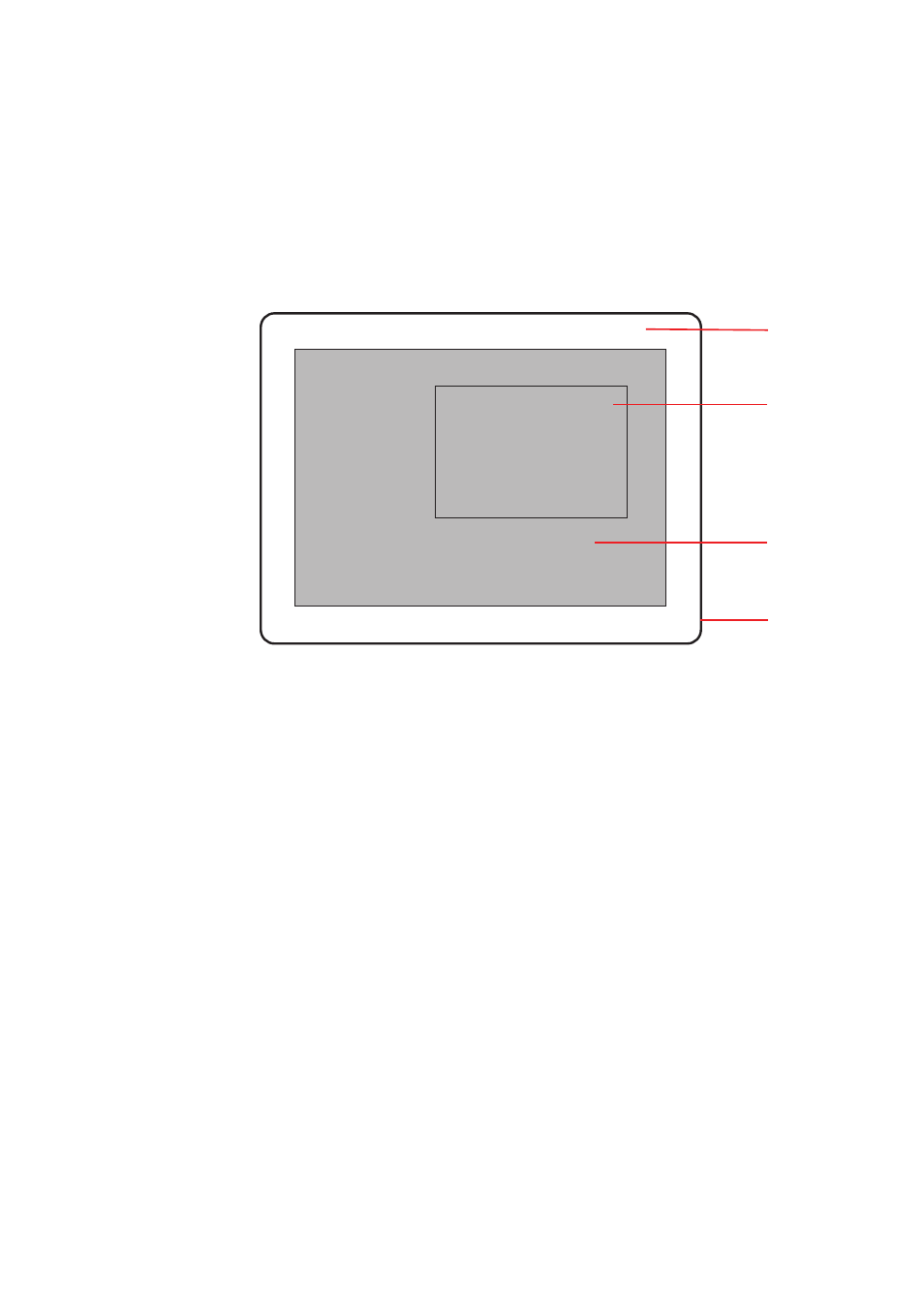

Figure 32. PiP of an HR image within a Keyer PiP
Note The grey area corresponds to the complete HR image (= Keyer PiP, i.e.
HR image including PiP of HR image)
Note The following example uses HR Key 1 and Key 1 [BUS DELEGATE], but you
can also use HR Key 2 and/or Key 2 [BUS DELEGATE].
Configuring the Keyer
1. In the KEYER main menu, select HR Key 1 and press Type .
2. Select PiP as Type.
3. Press the Source button and select the Fill source from the list.
Note Select IN01 HR or IN02 HR. Do not select a Still!
4. Press Transform .
5. Make sure the Enable button is activated.
6. Make sure the PiP Enable button is activated.
7. Select Hi-Res [DELEGATE] .
8. Select Key 1 [BUS DELEGATE] .
2
3
1
4
