28 INDIGO AV Mixer User Manual
Section 3 — Connections
3.7 Monitors
The INDIGO AV Mixer provides program, preview, and auxiliary
monitor outputs.
3.7.1 Program Monitors
Program monitors are connected to the outputs in the PGM OUT section.
You can connect up to five program monitors in parallel.

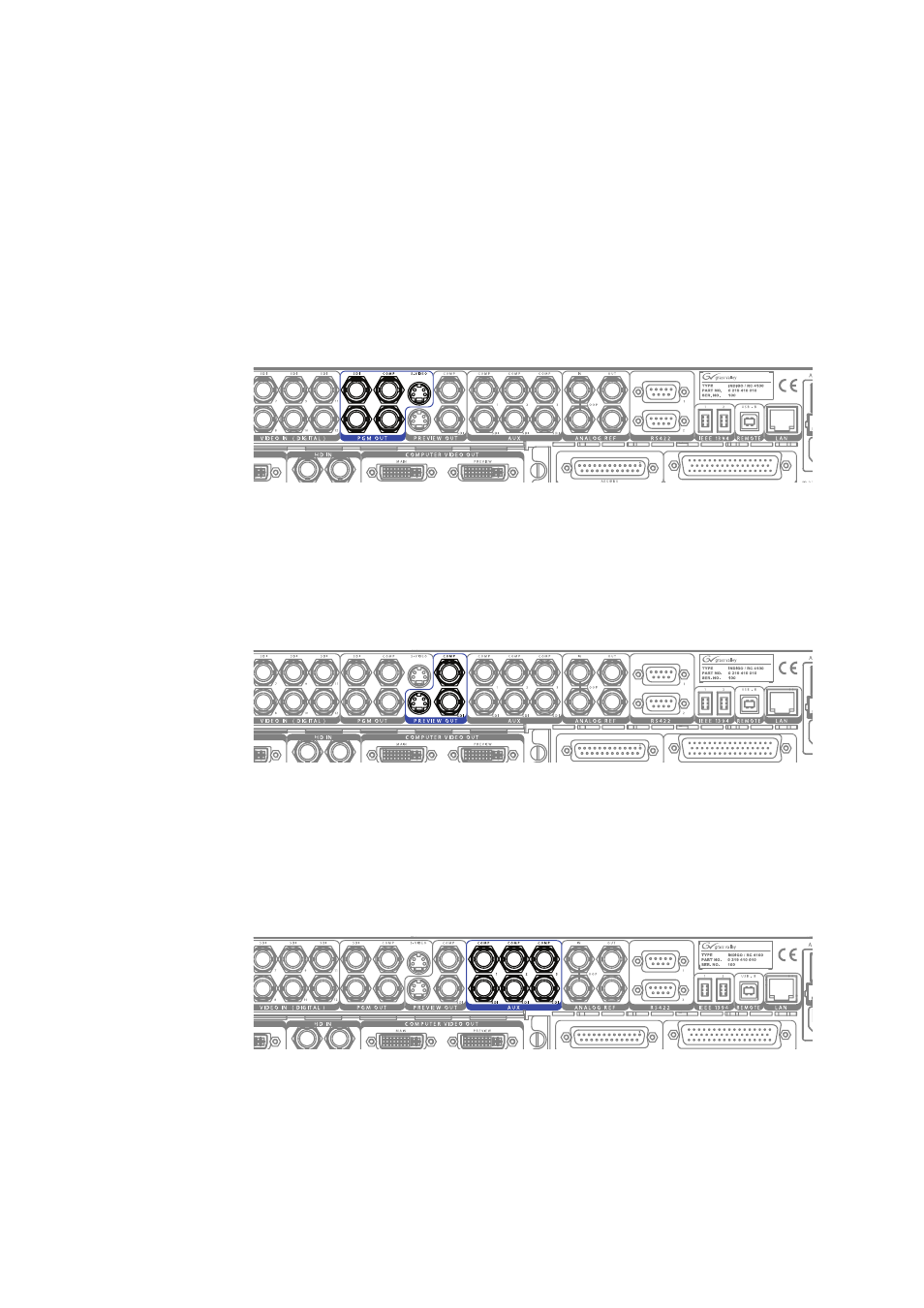

Figure 12. Program monitor connections
3.7.2 Preview Monitors
Preview monitors are connected to the outputs in the PREVIEW OUT
section. You can connect up to three preview monitors in parallel.
Figure 13. Preview monitor connections
3.7.3 Auxiliary Monitors
Use the connectors of the AUX section to output special signals, for
example, a single keyer signal, to check on a separate monitor. You can
connect up to three auxiliary monitors in parallel.
Figure 14. Preview monitor connections
