3.10 Tally/GPI/GPO
Use the GPI / TALLY / GPO 50-pin Sub-D connector to control external
devices via relays, or to send and receive control signals and events.

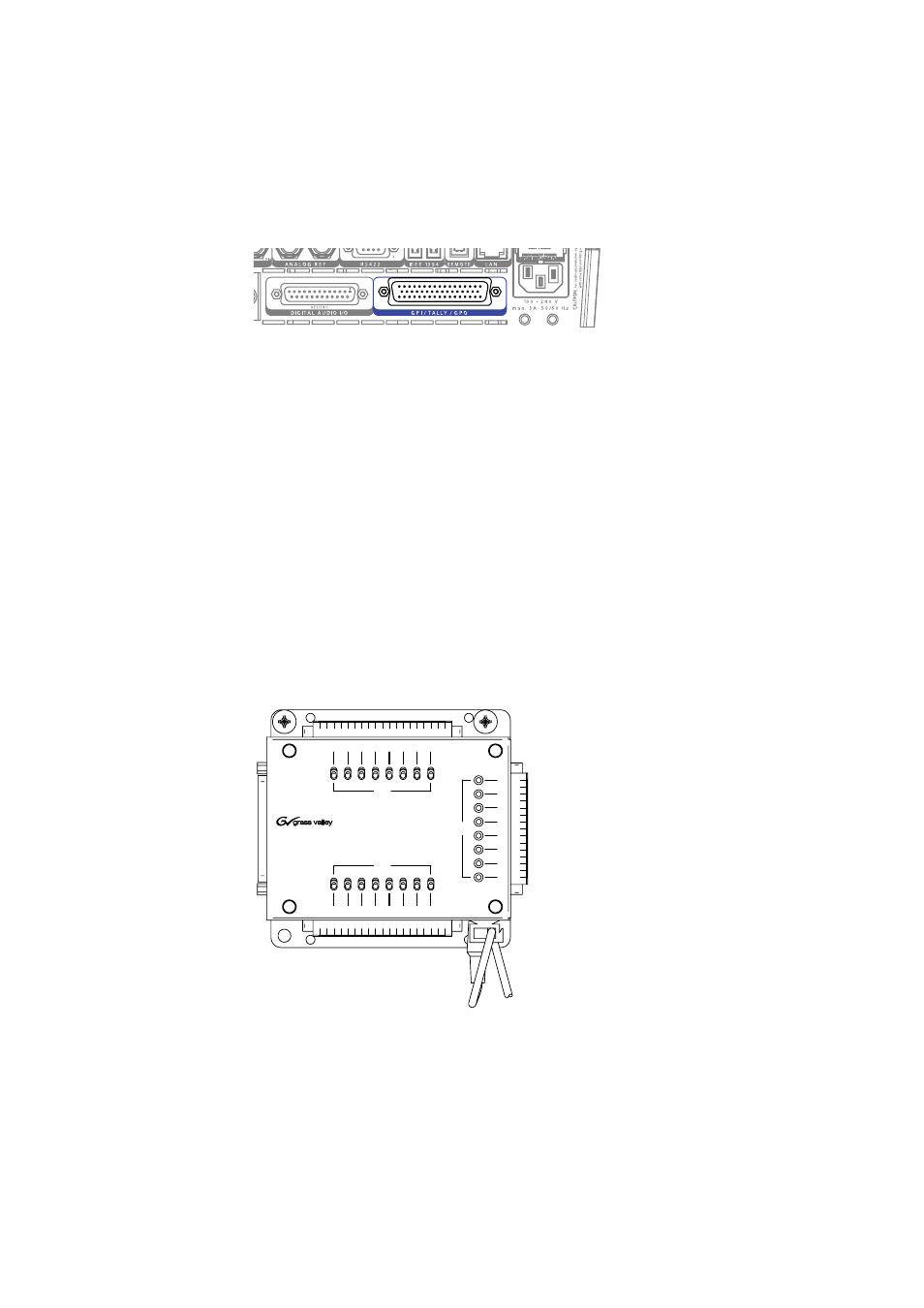

Figure 16. GPI / TALLY / GPO connector
The GPI / TALLY / GPO connector provides:
•
16 outputs, usable as tally out or GPO
This lets you open and close connections between two corresponding
pins of the connector, to control external devices or relays.
•
8 inputs, usable as tally in or GPI
By opening/closing the connection between two corresponding pins
of the connector, you activate functions like transitions or audio
channel on/off (see GPIO Submenu on page 138).
Tally Breakout Adapter
The optional Tally Breakout Adapter provides an easy way to use the
GPI / TALLY / GPO
connector.
Figure 17. Tally Breakout Adapter
