24 INDIGO AV Mixer User Manual
Section 3 — Connections
Microphone / Line In
The LINE/MIC IN section provides combined XLR/TRS 1/4’’ connectors
as inputs:
• 4 x XLR
• 4 x TRS 1/4’’ (the TRS 1/4’’ phone connectors are located in the middle
of the combined connectors and can be used instead of XLR)

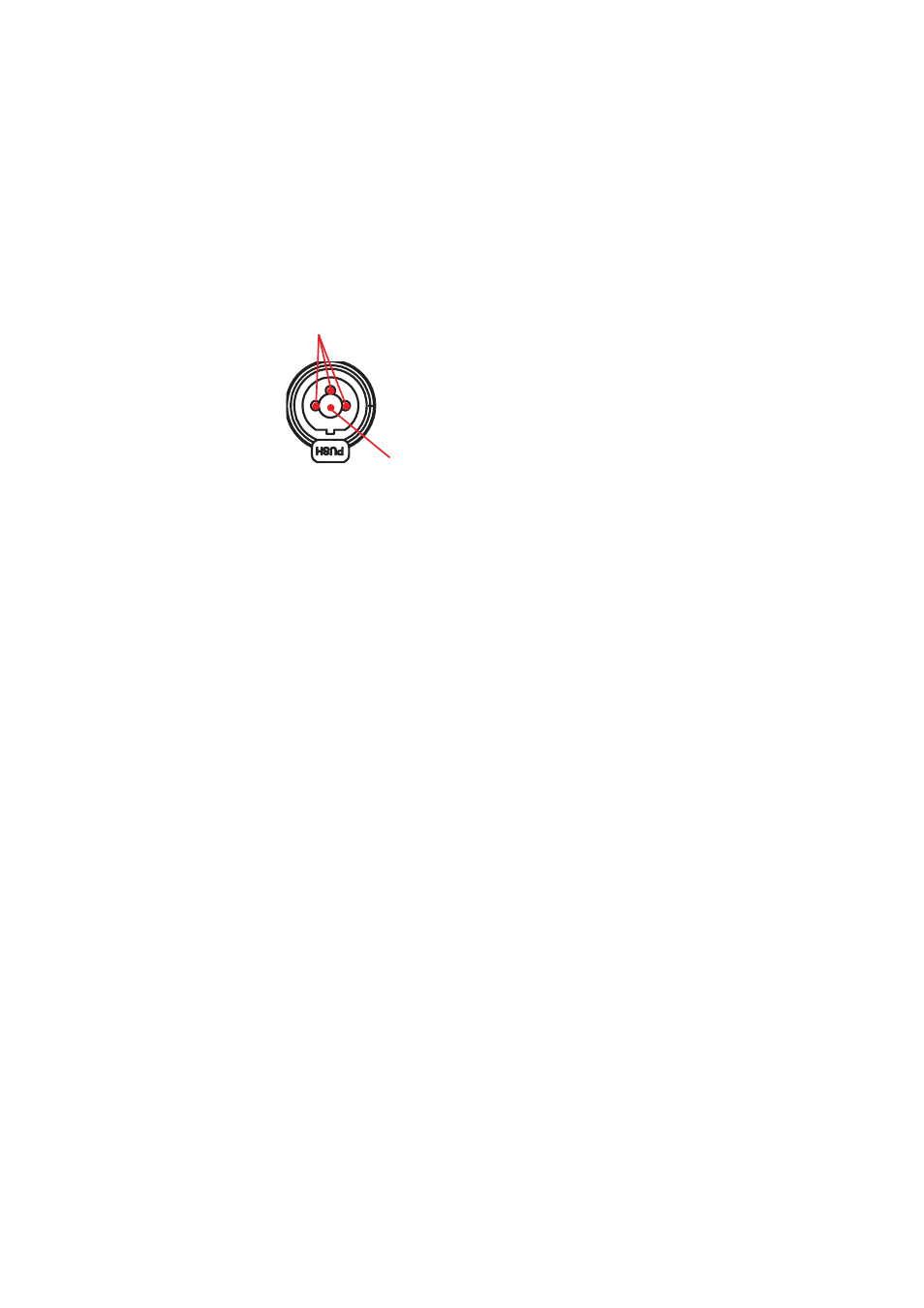

Figure 9. Combined XLR/TRS 1/4’’ connector
Note Phantom power (+48 V DC) can be activated for Line/Mic inputs 1/2 and 3/4.
Note The LINE/MIC IN inputs can be amplified (see Mixer Submenu on page 97).
Digital Audio Input
The INDIGO AV Mixer provides the following connections for digital
audio input:
• 6 x AES/EBU (25-pin Sub-D connector, section DIGITAL AUDIO I/O)
De-embedded/Embedded Audio (SDI)
Audio can also be derived (de-embedded) from up to six SDI video inputs
(see Audio Submenu on page 129).
For all SDI outputs, audio is embedded in Main and Sub channels in pairs
1+2 and 3+4.
Note De-embedded audio signals may be automatically delayed according to their
related video signals to avoid offset when being processed and re-embedded
on output.
XLR
TRS 1/4’’
