20 INDIGO AV Mixer User Manual
Section 3 — Connections
HiRes Board
The optional HiRes board additionally provides the following video
inputs:
• 2 DVI-I inputs with a resolution of up to 1920x1080 pixels
• 2 HD-SDI inputs with a resolution of 1080i or 720p
Note Using an appropriate adapter, analog VGA signals can also be input via the
DVI-I connectors (see DVI-I to VGA on page 29).
3.4.3 Video Outputs Overview

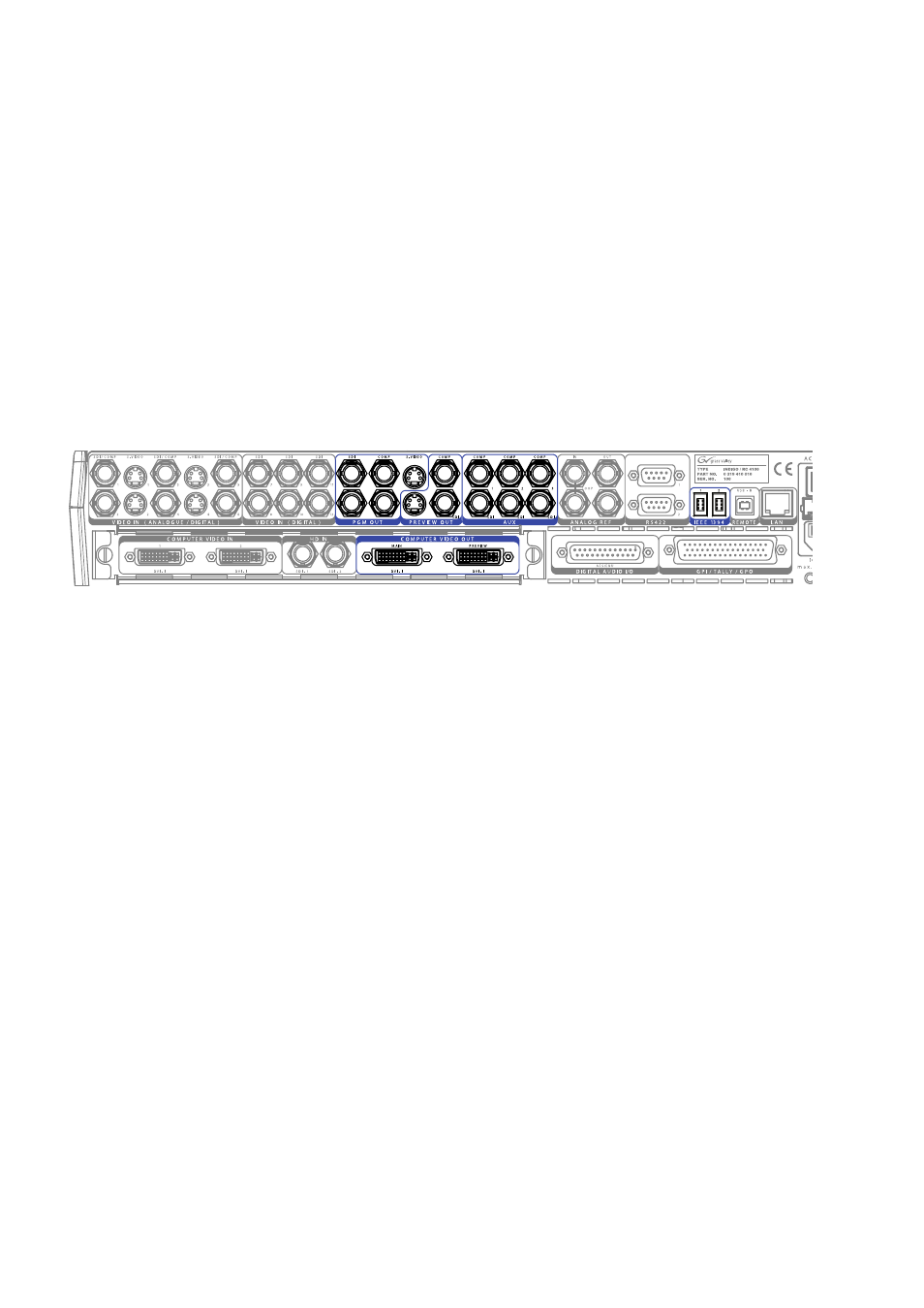

The following figure shows the video outputs of the INDIGO AV Mixer:
Figure 6. Video output connections
3.4.4 Video Outputs
The outputs listed below are sorted by sections (as labeled on the rear
panel), in order to allow a quick and easy overview.
Section PGM OUT
The PGM OUT section provides the following outputs, which can be used
concurrently:
• 2 x SDI
• 2 x CVBS (Composite)
• 1 x S-Video
Section PREVIEW OUT
The PREVIEW OUT section provides the following outputs, which can be
used concurrently:
• 1 x SDI
• 1 x CVBS (Composite)
• 1 x S-Video
