INDIGO AV Mixer
User Manual
69
Tutorial 1—Small Presentation
6.1.2 Connections
This example uses the following devices:
•
(1) INDIGO AV Mixer
•
(2) A miniDV camera, filming the speaker; connected via S-Video to
input S-VIDEO 1 of the VIDEO IN (ANALOG/DIGITAL) section
•
(3) Microphone for the speaker; connected to input 7 L of the LINE/
MIC IN
section
•
(4) Laptop for visual input, for example, PPT presentations or videos;
connected to input DVI-I 1 of the COMPUTER VIDEO IN section
(HiRes board)
•
(5) CD/DVD player for background music; connected to RCA input
1 L/R
of the ANALOG AUDIO LINE IN section
•
(6) Projector, to let the audience see the presentation; connected to
DVI-I MAIN
of the COMPUTER VIDEO OUT section (HiRes board)
•
(7) Amplifier with speakers; connected to ANALOG MAIN OUT via
RCA
•
(8) Headphones; connected to the phones jack on the top panel

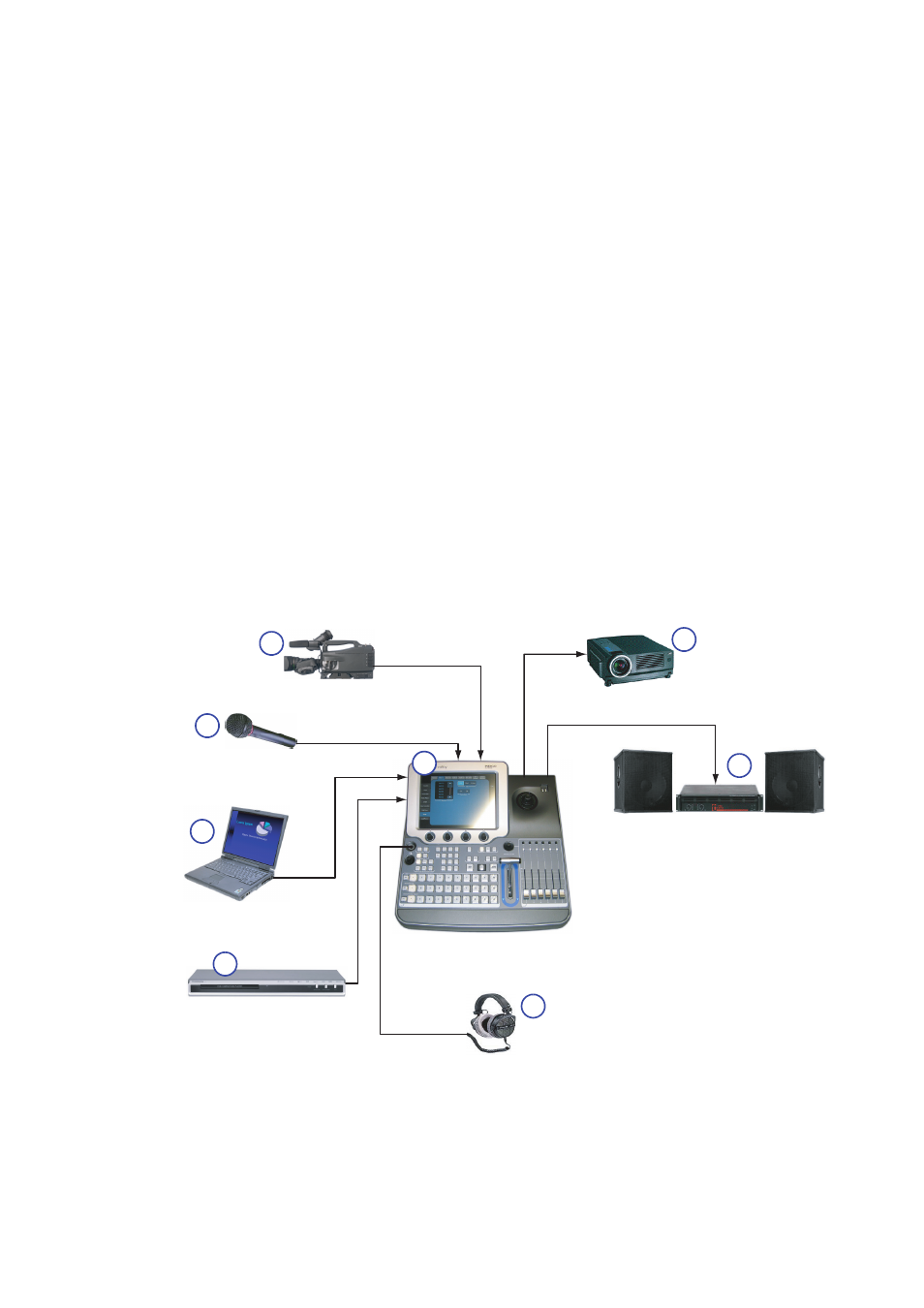

The devices are connected to your INDIGO AV Mixer as follows:
Figure 34. Connections for the small presentation setup
2
3
4
1
5
6
7
8
S-Video 1
DVI-I MAIN
LINE/MIC IN
DVI-I 1
ANALOG AUDIO LINE IN 1
ANALOG AUDIO MAIN OUT
