Sundance SMT381 2004 User Manual
Page 62

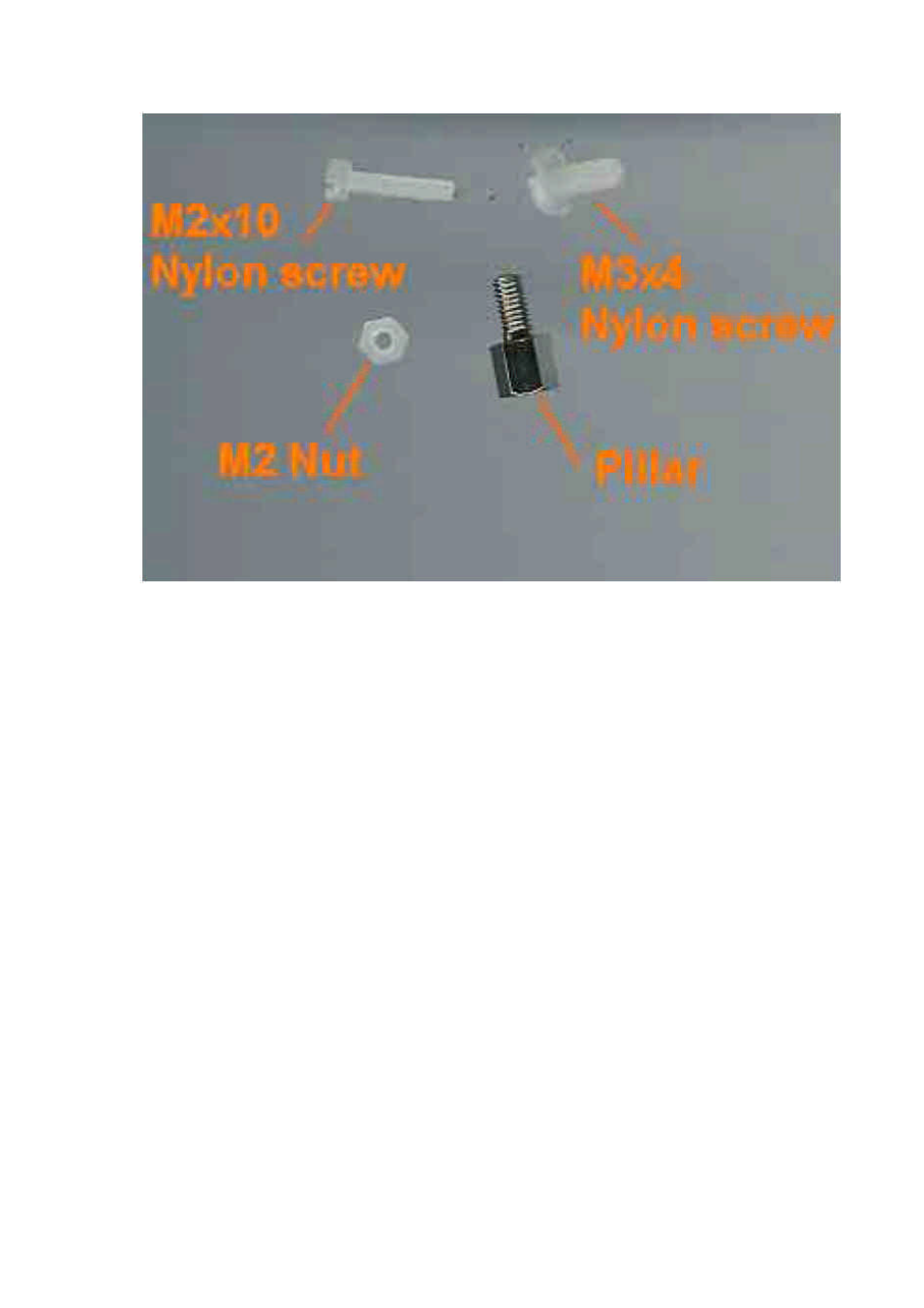

Figure 47. Components Used to Connect the SMT381 to the SMT338-VP.
•
First fit two Nylon screws (M2 x 10), pointing out (the head of the screws on
the bottom side of the SMT338-VP).
•
Then fit four M2 nuts on each screw.
•
Place the SMT338-VP on the second TIM site (TIM 1 is for the Host) of a
Sundance carrier (like the SMT310Q)
•
Fit the two metal pillars to the TIM mounting holes to give the SMT338-VP
3.3V from the carrier.
•
Place the SMT381-VP on top of the SMT338-VP and make sure that both
modules fit firmly (the SMT381 does not need 3.3V of it’s mounting hole).
•
Fit two M2 nuts on the Nylon screws and two M3x4 screws in the 3.3V pillars.
•
Connect ComPort3 of the SMT381-VP to an available ComPort on the Host
module (eg ComPort 0).
