12 shb interface, 2 rsl cable definition, Samtec hfem series data cable – Sundance SMT381 2004 User Manual
Page 35
Dir
Carrier / Other Module to SMT381-VP
Dir
SMT381-VP to Carrier / Other Module
13
RxLink3p
Receive Link 3, positive
14
TxLink3p
Transmit Link 3, positive
15
RxLink3n
Receive Link 3, negative
16
TxLink3n
Transmit Link 3, negative
Dir
Reserved
Dir
Reserved
17
Reserved
Reserved
18
Reserved
Reserved
19
Reserved
Reserved
20
Reserved
Reserved
Dir
Reserved
Dir
Reserved
21
Reserved
Reserved
22
Reserved
Reserved
23
Reserved
Reserved
24
Reserved
Reserved
Dir
Reserved
Dir
Reserved
25
Reserved
Reserved
26
Reserved
Reserved
27
Reserved
Reserved
28
Reserved
Reserved

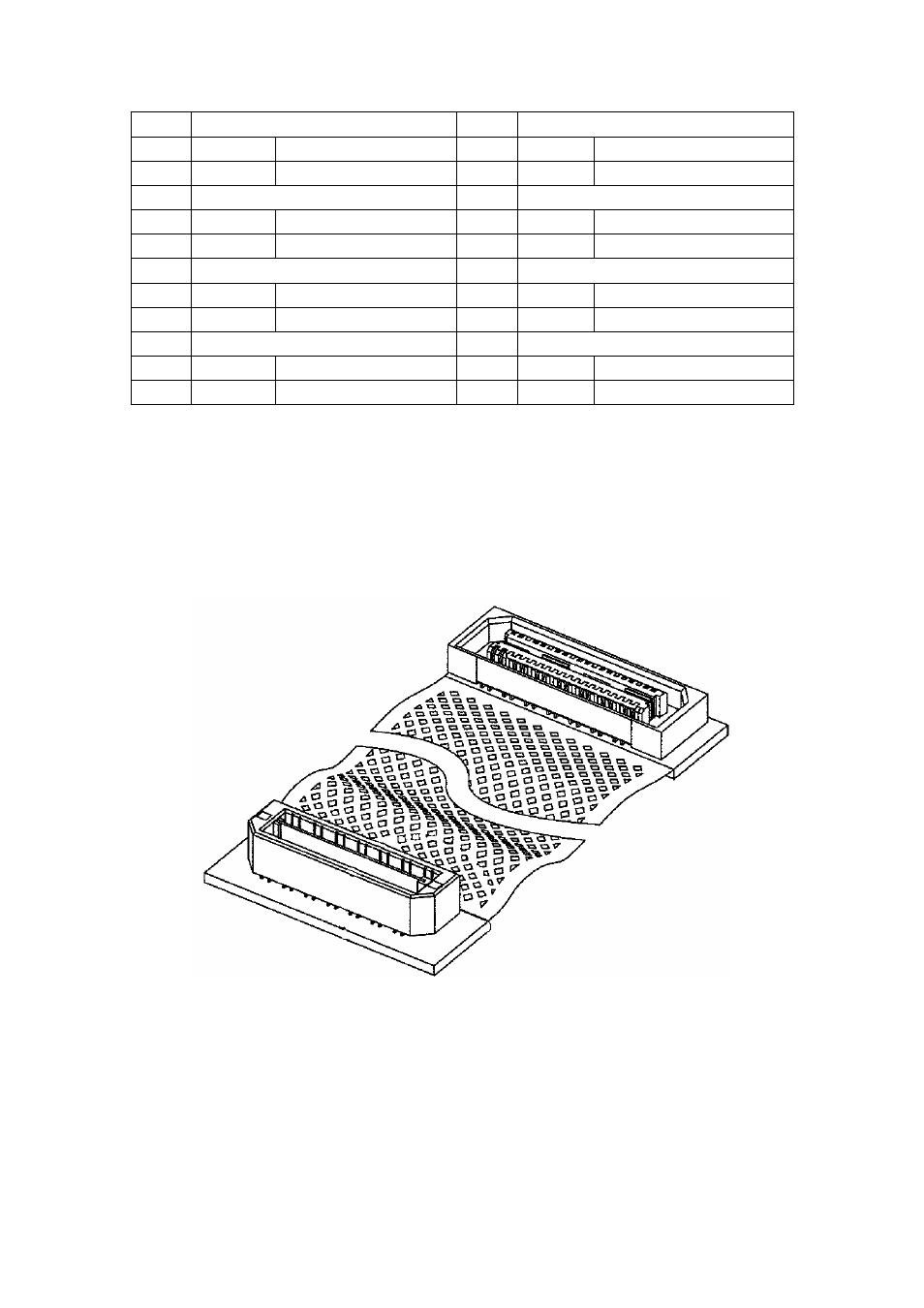

Figure 16. Rocket Serial Link Interface Connector and Pinout (RSL B).
3.11.2 RSL Cable Definition
The matching cable for the RSL connector is a Samtec High Speed Data Link Cable
(Samtec HFEM Series). The cable may be ordered with different length and mating
connector options. The following diagram shows such a typical cable:
Figure 17.
Samtec HFEM Series Data Cable.
3.12 SHB Interface
The SMT381-VP implements a subset of the full SHB implementation. Two
configurations are possible
Configuration 1: SHB A is configured to receive 32-bit data words for channel A and
SHB B is configured to receive 32-bit data words for channel B. Both SHB interfaces
