Printer Paper Roll Replacement
Page 4-12 MDE-5013C TopKAT™ PLUS Installation Manual · February 2015
7 Prepare a new paper roll facing down.
8 Press the paper roll pivot pawl (see Figure 4-13 on page 4-11 ) and slide back the new paper
roll when it is facing down.
Note: Insert the paper as shown in
Figure 4-12 on page 4-11 , with the thermal (shining) side
facing out.
9 Lock the paper roll pivot back (see Figure 4-12 on page 4-11 ).
The paper can be inserted into the printer automatically or manually.
Automatic Insertion of Paper
To insert the paper automatically, proceed as follows:
Note: Ensure that the green locking handle is closed.
1 Slide the paper gently along the grooves until the printer motor starts pulling the paper. At the
end of the process, the paper will exit from the cutter
Note: Do not pull the paper. The printer pulls the paper automatically and cuts it.
2 Slide the paper from the printer door slice (see Figure 4-14 ).
Manual Insertion of Paper
To insert the paper manually, proceed as follows:
1 Release the green locking handle (see Figure 4-11 on page 4-10 ).
2 Slide the paper gently along the grooves until the paper exits from the cutter.
3 Lock back the green locking handle and let the printer fall back in its place.
4 Slide the paper from the printer door slice and close the door (see Figure 4-14 ).

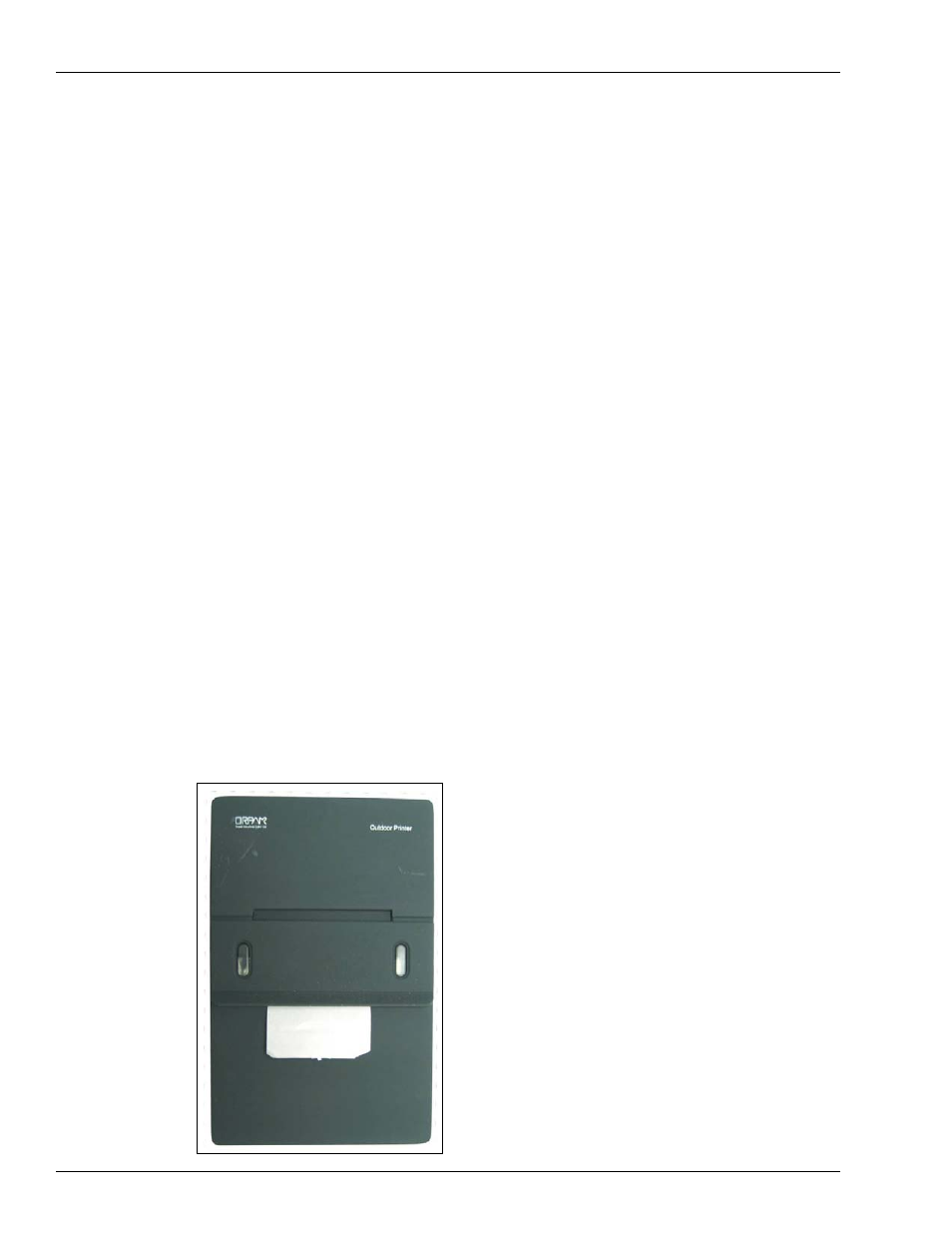

Figure 4-14: Protruding Paper from Slice in Door
