TopKAT PLUS Installation Procedures Single Suction Pump
Page 3-18 MDE-5013C TopKAT™ PLUS Installation Manual · February 2015
Single Suction Pump

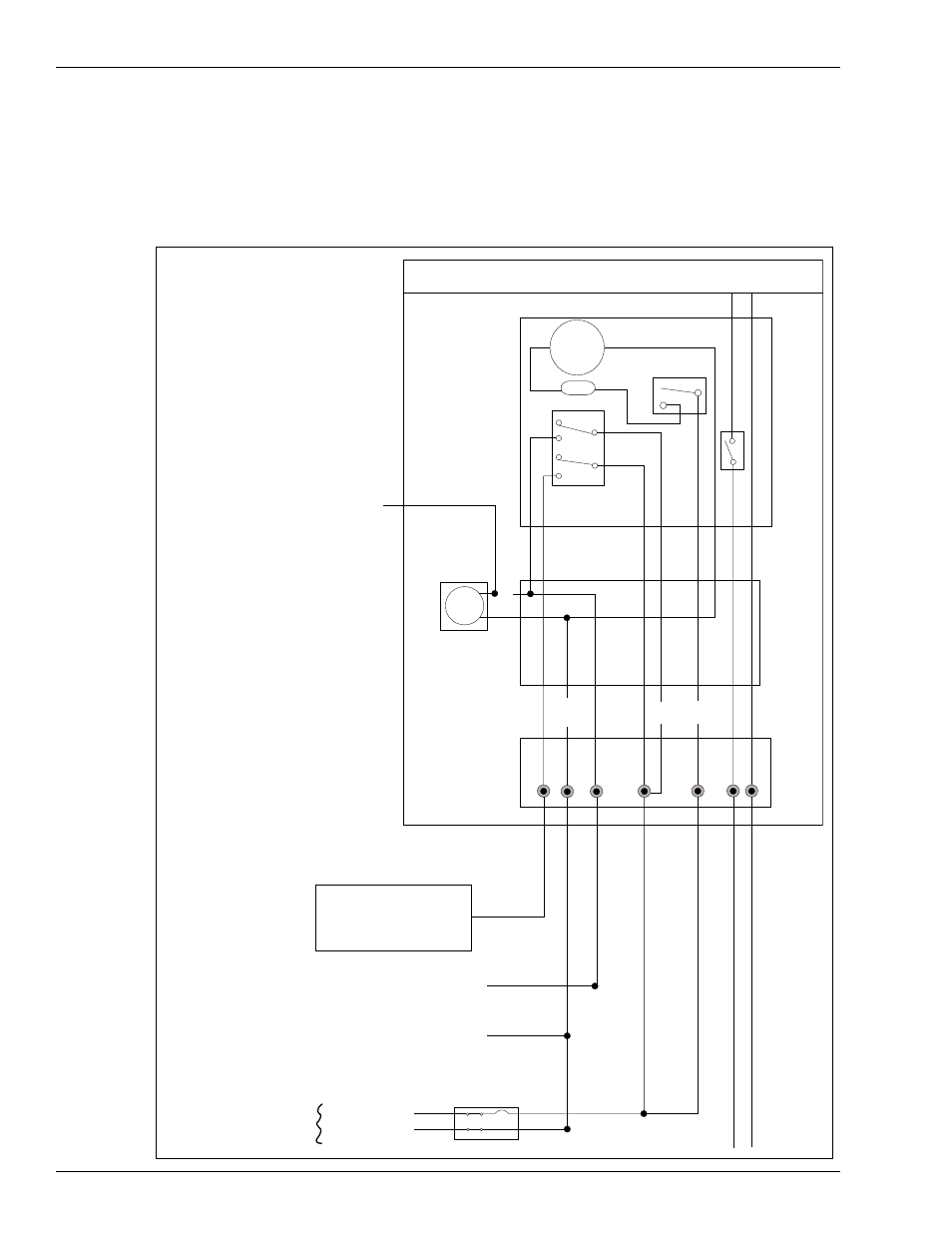

Figure 3-16 shows the connections to the single suction pump.
Figure 3-16: Single Suction Pump 1 HP 115 VAC/230 VAC
OPTIONAL LIGHT ASSEMBLY
ELECTRIC RESET
NO
NC
NO
NC
C
C
HANDLE
SOLENOID
VALVE
120 VAC
RESET
MOTOR
Islander Load-1 (TB-31)
GASBOY MECHANICAL PUMP
with VR/TOK Reset Color Codes
Islander In-use 1A and Line-1 (TB-19 and TB27)
Neutral to In-use 1B (TB-23)
DISPENSER
HOT
NEUT
BREAKERS
TO SUBMERSIBLE
STARTER RELAY
OF PUMP
1 HP AT 120/240 VAC
SUBM DRIVE
FEED NEUTRAL
RESET
COMPLETE SUBM FEED
RESET
MOT
OR FEED
LIGHT
FEED
LIGHT
NEUTRAL
RED
WHT
ORG BLK
BRN
YEL/WHT BRN/WHT
SW
BLU
