MDE-5013C TopKAT™ PLUS Installation Manual · February 2015 Page 3-9
Connections to TopKAT PLUS - Pedestal Mounted Units TopKAT PLUS Installation Procedures
Connections to TopKAT PLUS - Pedestal Mounted Units
All connections to the post mounted TopKAT PLUS must be performed to the terminal block
located at the bottom of the TopKAT PLUS box (see
Figure 3-7 and Figure 3-8 on page 3-10 ).
The required connections are:
• Dispenser wiring connections (mechanical dispensers):
- Pulser (low voltage)
- In use signal (high voltage)
- Solenoid valve (high voltage)
• Communications (Atlas 9800 electronic dispensers):
- Pump communication line (RS-485)
• Mains AC power and ground (electronic and mechanical dispensers)
• LAN connection. LAN cable is directly connected to LAN2 connection on the OrCU.

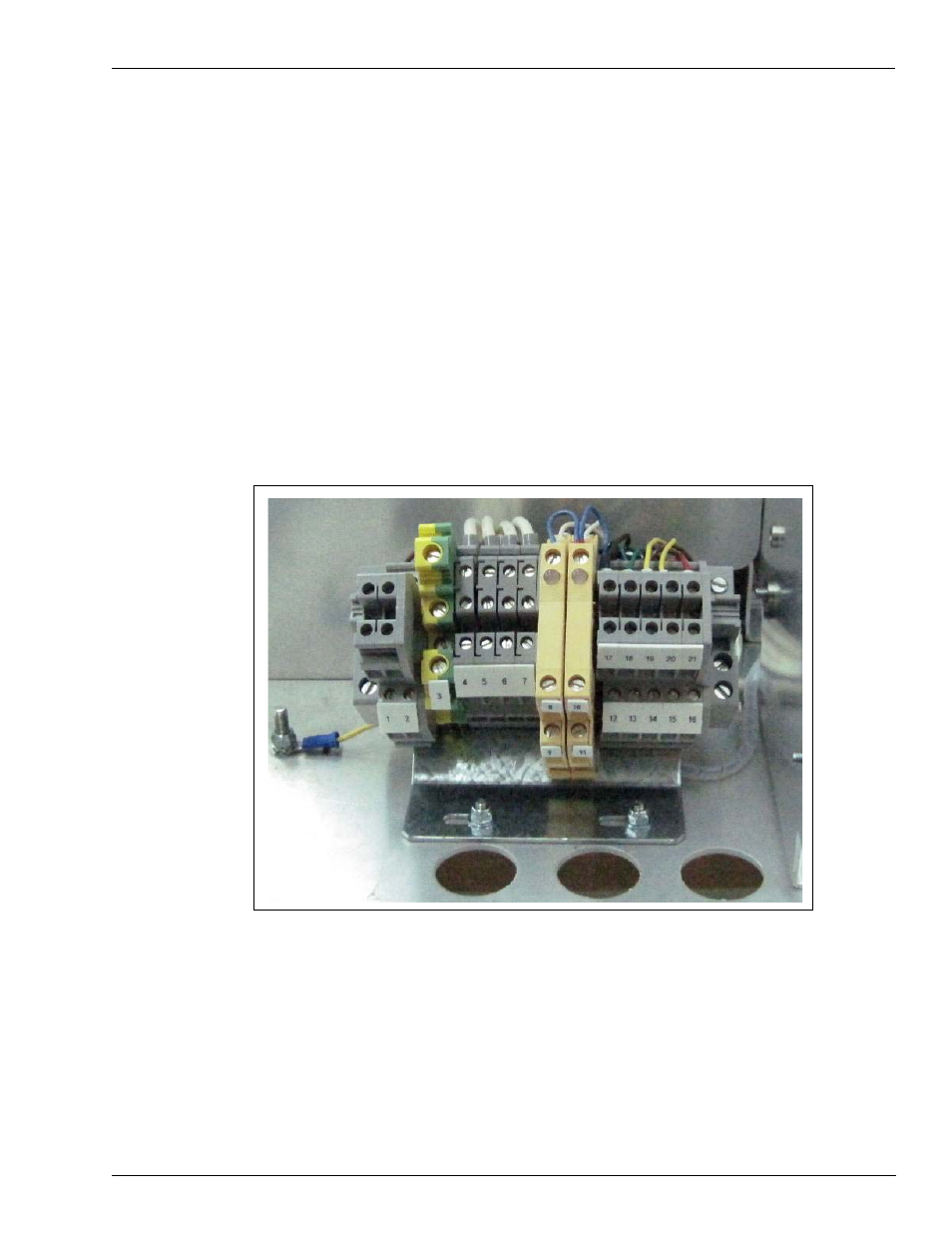

Figure 3-7: TopKAT PLUS Terminal Block - Mechanical Pump
