Page 48
TopKAT PLUS Installation Procedures
Mechanical Pump - Pulser Connections
Page 3-22
MDE-5013C TopKAT™ PLUS Installation Manual · February 2015
Mechanical Pulser
The two-wire pulser is powered by the TopKAT PLUS.
shows a schematic
diagram of the connections between the terminal block and two-wire pulser.

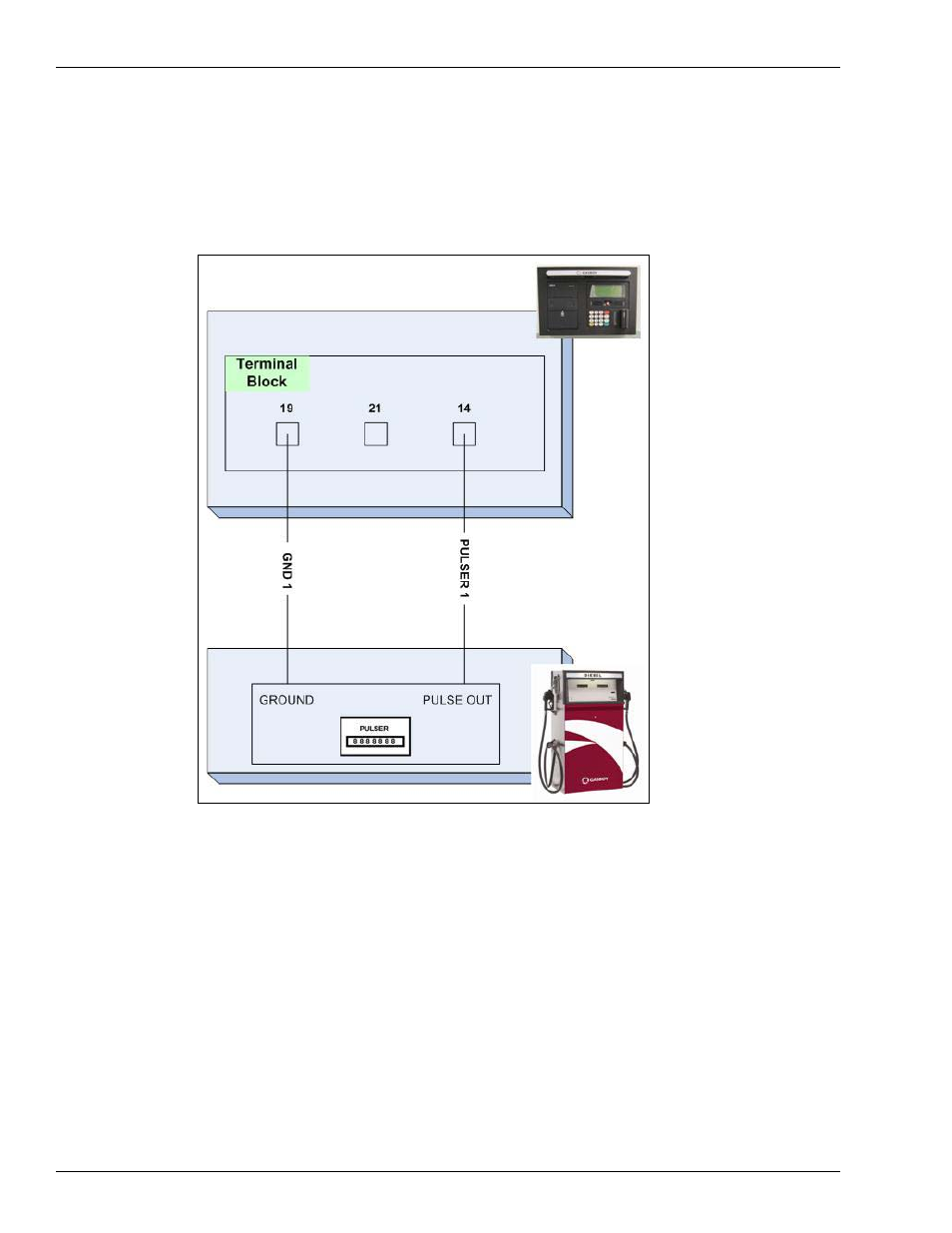

Figure 3-19: Terminal Block and Two-wire Pulser - Wiring Connections
