TopKAT PLUS Installation Procedures Conduits
Page 3-4 MDE-5013C TopKAT™ PLUS Installation Manual · February 2015
Conduits
General
The installation of the TopKAT PLUS at the island requires digging and setting several
conduits in the station ground. The conduits are required for the routing and protection of the
different types of cables in use in a home base station with TopKAT PLUS. In sites where the
infrastructure is already set up, you can use the existing conduits only if they meet the
requirements defined in
“Conduit Requirements” .
Conduit Requirements
Conduits must comply with:
• All conduits must be made and installed according to local regulations.
• High-voltage AC and low-voltage DC must NOT be combined in a common conduit,
Junction Box (J-box) or wire through.
• The maximum distance for the LAN communication is 333 feet. Cables must be inserted
in a separate low voltage conduit, away from AC wires. Communication range can be
extended with third-party devices.
• All conduits must be inserted in the TopKAT PLUS pedestal through the holes and
knockouts provided in the lower barrier plate.
• After completing the installation, there must not be any unused conduit openings in the
barrier plate. The clearance between conduits and openings in the barrier plate must not be
more than 1/64-inch.

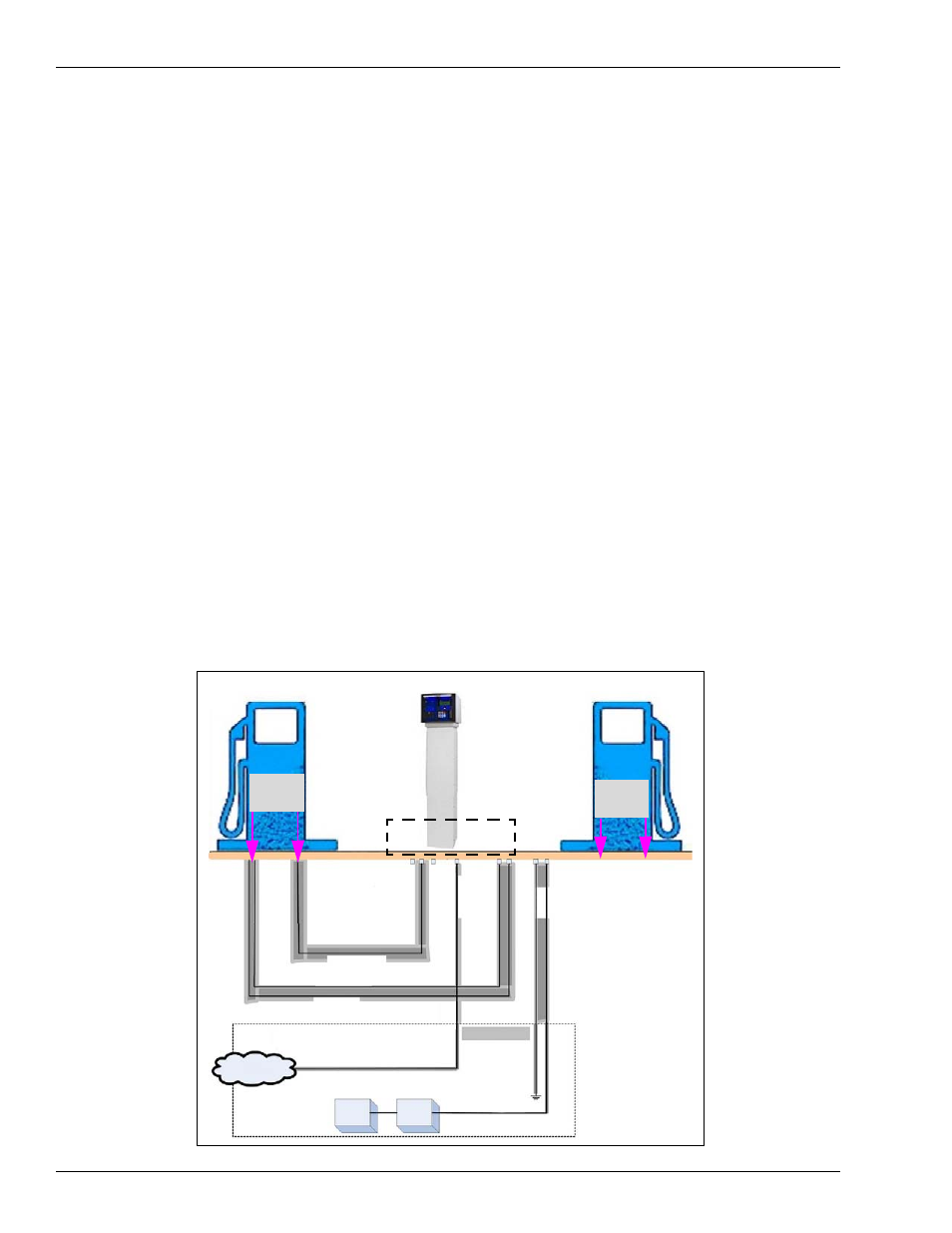

Figure 3-2: Conduit Layout for Mechanical Pump
Mechanical Pump/Dispenser Mechanical Pump/Dispenser
TopKAT PLUS
Optional
Possible Conduits
in Pedestal
Office
WAN
MCC UPS
TCP/IP
CAT-5E
Junction
Box
Lo
w V
o
lt
a
ge
C
o
nd
ui
t
TCP/IP
GND
Lo
w V
o
lta
g
e C
o
nd
ui
t
Hig
h
V
o
lt
ag
e Co
ndu
it
Isle
Junction
Box
High
V
o
lt
ag
e Con
d
u
it
AC
Pulser
In Use
Control
