MDE-5013C TopKAT™ PLUS Installation Manual · February 2015 Page 3-13
Wiring TopKAT PLUS Installation Procedures
AC Power Connection
TopKAT PLUS is shipped configured for 115 VAC power supply. Ensure care to set it
accordingly to your local AC power supply specifications. Failure to do so may result in
damages.
WARNING
The AC power input is connected to the terminal block. Between the terminal block and
transformer, the system uses a line filter to attenuate conducted RFI and EMI - between the
line and equipment. AC power is then supplied to an AC/AC high to low

transformer -110/220 to 25 VAC. Transformer can be fed either to 110 or 220 VAC. The power
supply setup jumpers shown in
Figure 3-11 must be set to match the AC power input to the
TopKAT PLUS. A settings label is also found beside the terminal block. For dispenser
mounted TopKAT PLUS, the power supply setup jumpers must be set to match the micro feed
input to the Atlas pump/dispenser.
• For 115 VAC input (default setting), there must be a jumper wire from position 1 of the
setup jumper to position 5 and from position 2 to position 6.
• For 230 VAC input, there must be a jumper wire from position 5 of the setup jumper to
position 2.

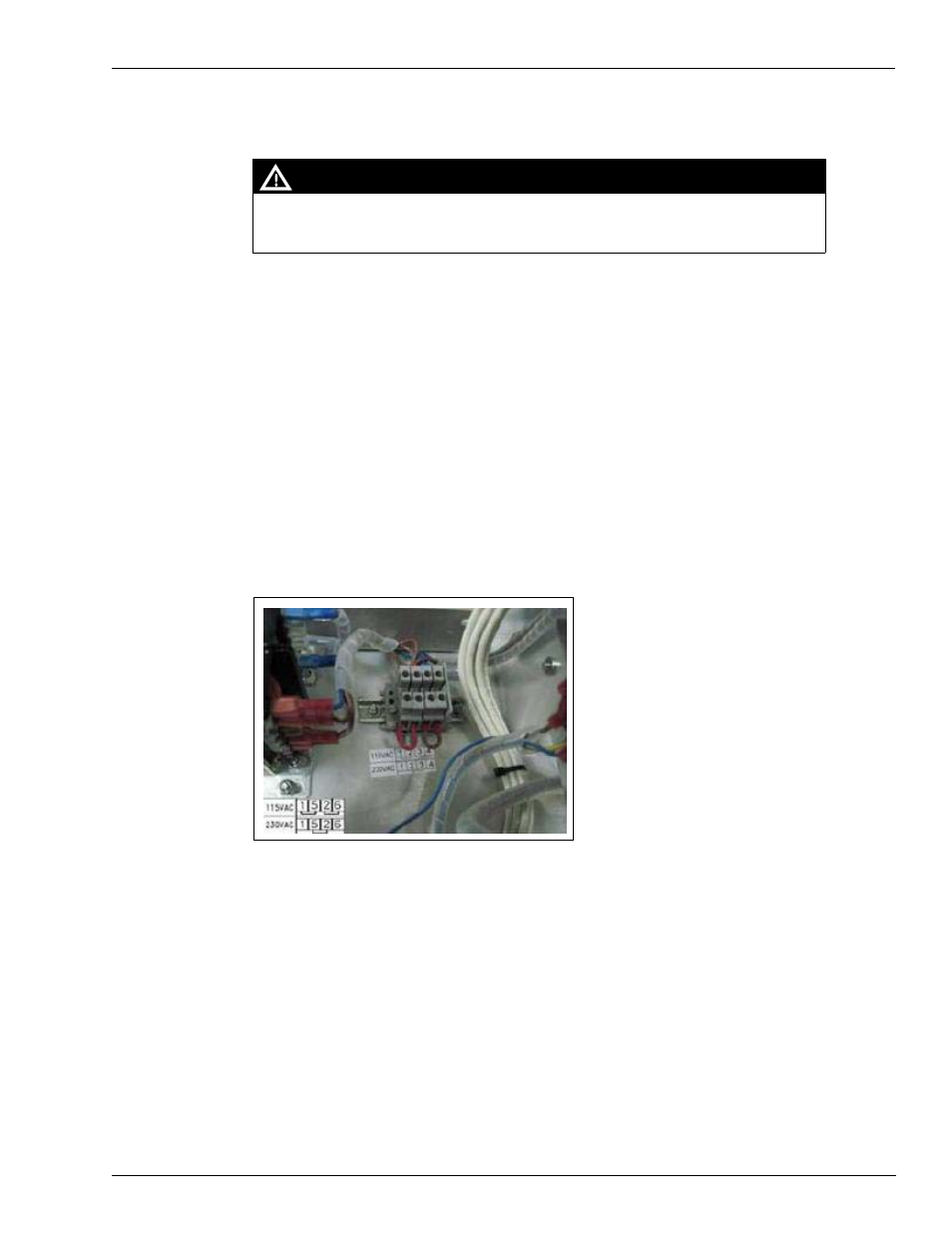

Figure 3-11: Power Supply Setup Jumpers
