Gasboy TopKAT PLUS User Manual
Page 54
TopKAT PLUS Installation Procedures
Manager Tag
Page 3-28
MDE-5013C TopKAT™ PLUS Installation Manual · February 2015
The manager screen is displayed (see
).

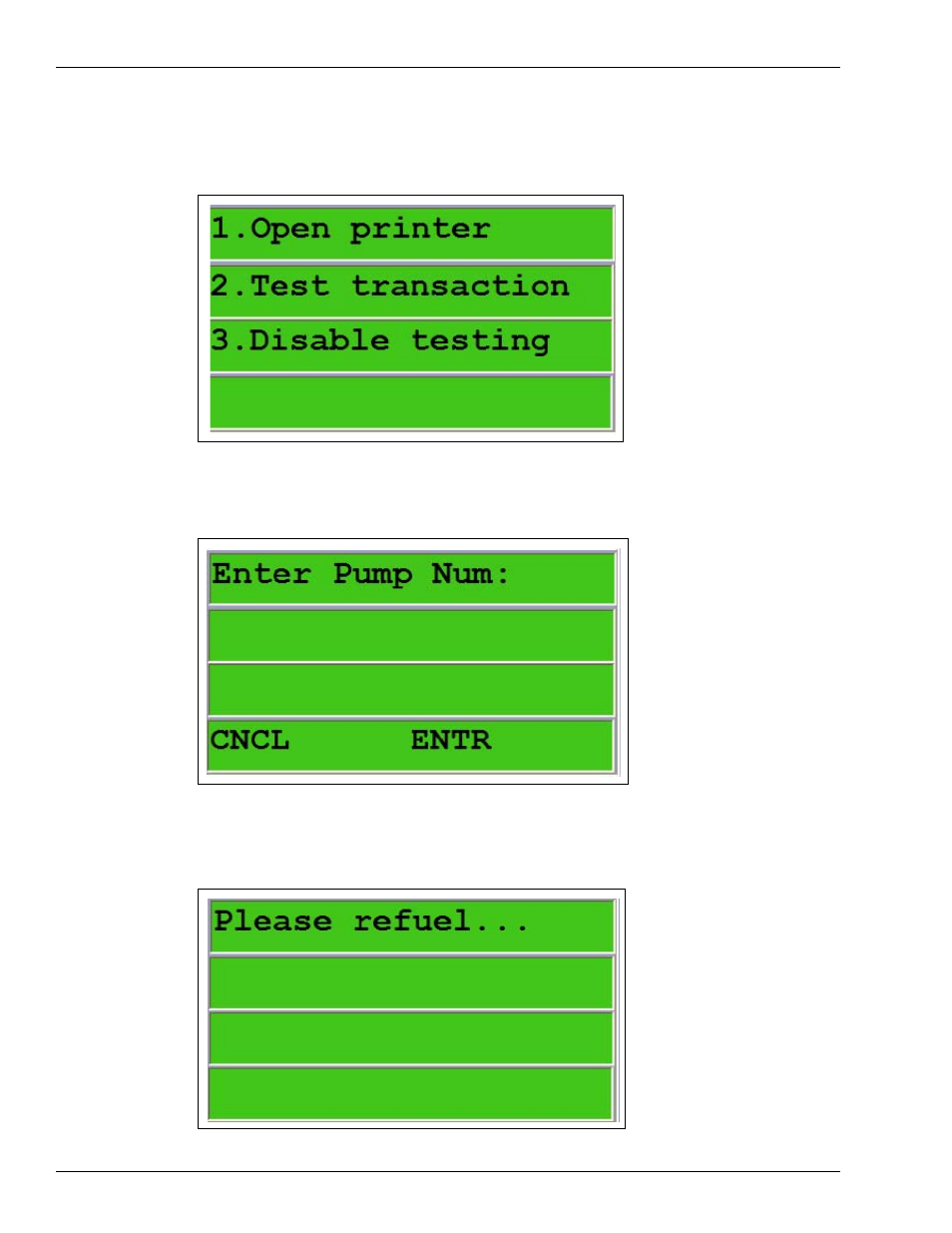

Figure 3-25: OrPT Manager Screen
2
Press 2 on the keypad and press OK.
is displayed.
Figure 3-26: OrPT Pump Selection Screen
3
Enter the pump number and press OK. The fueling is authorized and the
appears.
Figure 3-27: OrPT Refueling Screen
