Using the PC TopKAT Online Software Setting Up the PC Online Software (Quick Start)
Page 32 MDE-4589 PC TopKAT™ Online Operation and Setup Manual · August 2010
Setting Up the TopKAT Systems

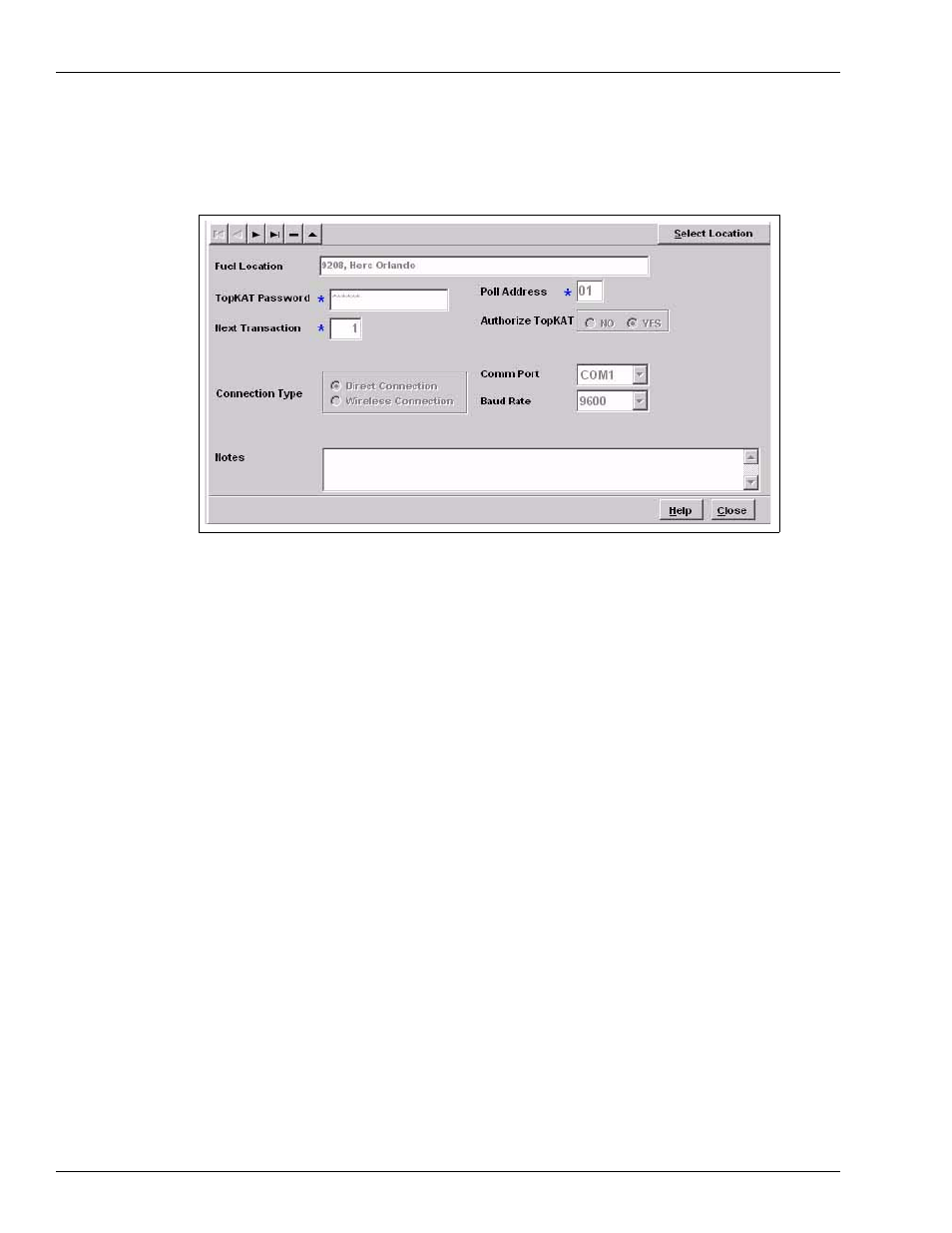

Figure 10-10: TopKAT System Setup Window
Select Location - Allows you to select a different location if more than one location exists at
this site.
TopKAT Password - Password set in the Online TopKAT system when started up (normally
GASBOY).
Poll Address - Poll Address set in the Online TopKAT system when started up (normally 01).
Note: The Poll Address must be the “Source Address” of the wireless modem (if used) at the
same Online TopKAT.
Next Transaction - First transaction requires to be polled to the PC Online Software Database
and then posted to the Rawtrans.dat file and PCTopKAT_Online.xls file
Authorize TopKAT - Set to YES when you are ready to start polling and have determined the
first transaction you require to begin with in the PC Online Database.
This must be performed after the Online TopKAT system has been fully
tested with the connected pumps or dispensers.
Connection Type
Ensure that you set this appropriately for the type of communications used at this location.
• “Direct Connection” for SHM or Gasboy Termination Box.
• “Wireless Connection” when using the Coyote wireless modems for communications.
Comm Port/Baud Rate - This must have been previously set in setup/communications.
Ensure that the baud rate of the Online TopKAT(s) and all wireless
modems, if used, match this baud rate.
