MDE-4589 PC TopKAT™ Online Operation and Setup Manual · August 2010 Page 29
Setting Up the PC Online Software (Quick Start) Using the PC TopKAT Online Software
Setting Up the Communications Parameters

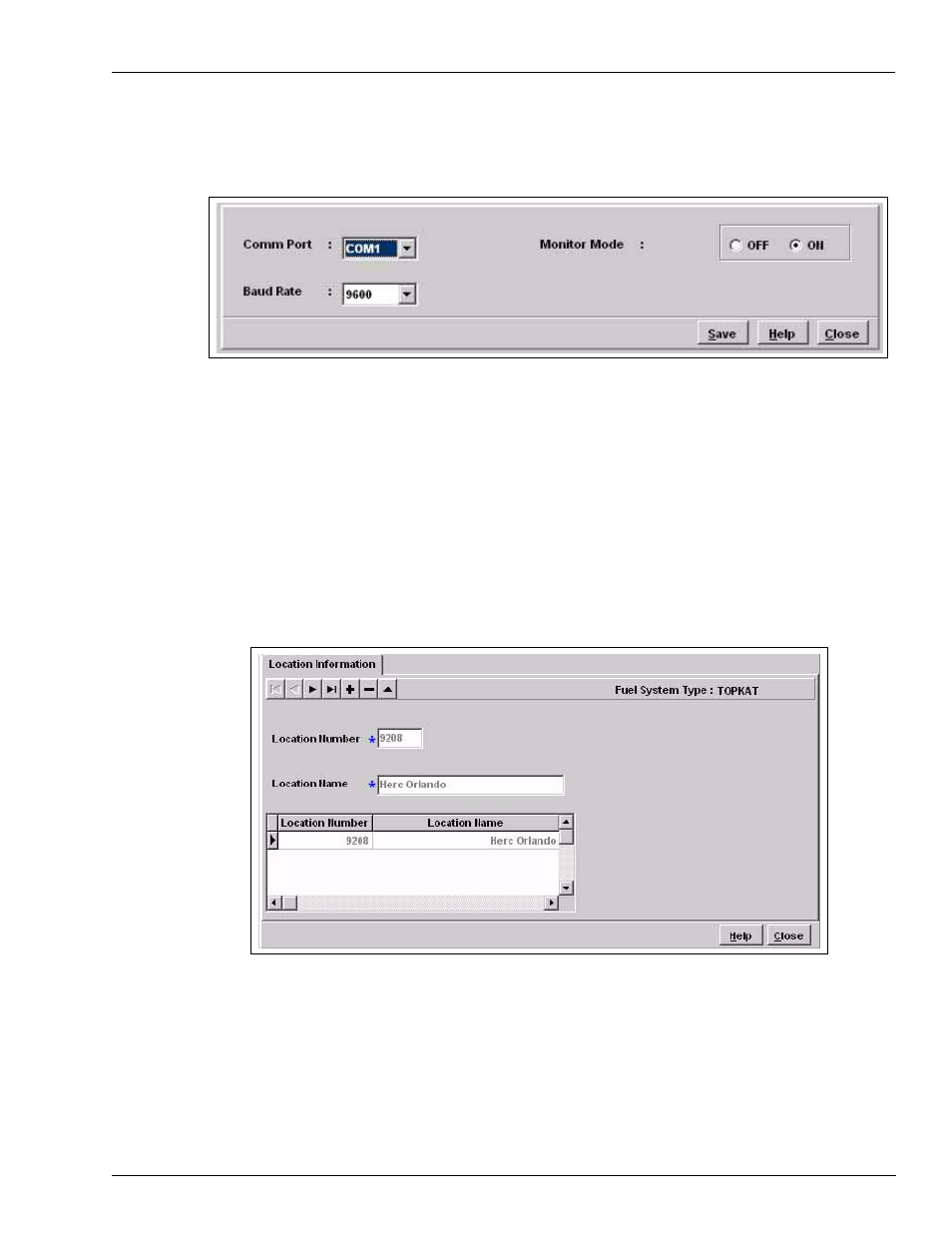

Figure 10-5: Communication Parameters Window
Comm Port - Communication port to be used on the PC with the Online Software installed.
Baud Rate - This must match the baud rate programmed/set in the wireless modems and
Online TopKAT systems.
Monitor Mode - Must be turned on.
Setting Up the Fuel Locations
Figure 10-6: Location Information Window
Location Number - The same 4-digit site number programmed in the Online TopKAT system.
This number CANNOT be changed, after it is entered and saved. The
location can be deleted.
If multiple Online TopKAT systems are communicating through wireless to the PC Online
software, they must each have a unique “Location Number”.
Location Name - 30-character reference name for the Online TopKAT system. This can be
edited even after it is saved.
