CFN III Quick Reference
MDE-4483 CFN III Quick Reference Guide v3.3 · August 2005
Page 43
The numbers of the keypad keys on the CAT are:
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
Note that keys on the left half of the keyboard -
that is: 1, 2, 3, 6, 7, 8, 11, 12, 13, 16, 17, and 18 -
cannot be programmed.
The default func. arrangement of the CAT keypad is:
1
2
3
u
b
4
5
6
$
B
7
8
9
N
Y
C
0
E
H
X
The string that would be typed into the Tokheim/
DPT/Wayne CAT keyboard layout item in SYS_PAR
to give the CAT keypad function arrangement shown
above is:
123ub456$B789NYC0EHX
SDI Box Switches
MODA/MODB are on switch 7, RESET on switch 8.
For Wayne CAT, SDI #1, make all switches to OFF
(open).
For Wayne CAT, SDI #2, make position 5 ON
(closed), all others OFF (open).
To clear application memory:
1. Close switch position 6
2. Close switch position 8
3. Open switch position 8
4. Wait a few seconds
5. Open switch position 6
Insight
Interface
PC Connection
Connect com1 (default) or alternate PC Com port to
the DB25 connector of the 9600 converter (Gasboy
part# C05859). Use a standard PC DB9 to DB25

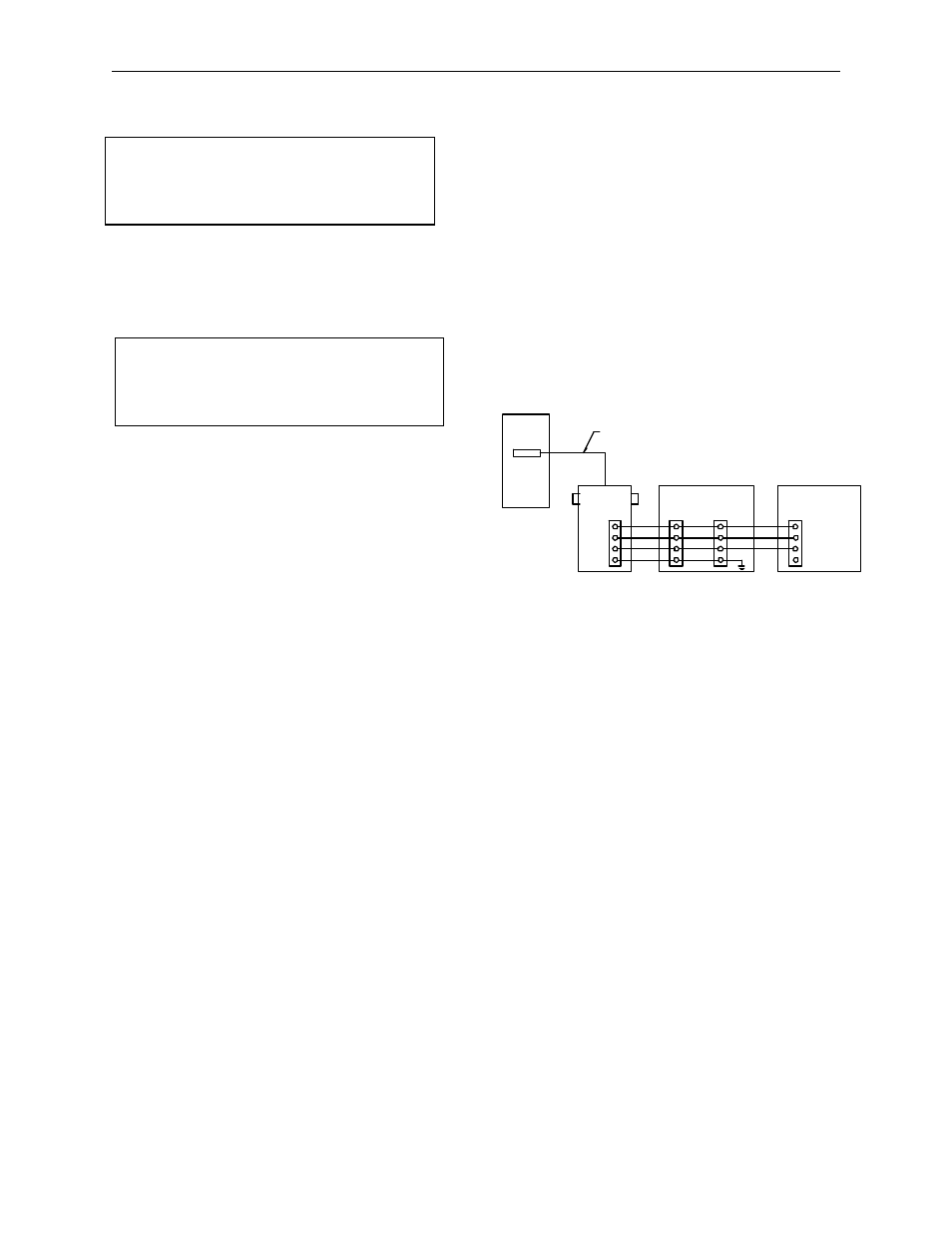

cable (part# C06253). The following is an overview
of the connections and a wiring illustration:
Connect the power supply (part# C05440) to the
9600 converter and plug it in.
Insight Board Switches
SW1 on the Insight board is used to set the Insight
address and baud rate for the site controller port.
Leave position 1 and 2 alone. These control internal
settings for the Insight/pump interface, which should
be set at the factory or by a Tokheim service person.
Set each Insight address to match the site’s DPT
address. These are set using positions 3-7.
-485 4
+485 3
GND 2
GND 1
P2 Connector
Com1
CFN
3
DB9-DB25 CABLE
C06253
C05859
9600
Converter
1
2
3
4
Site J1
(for multiple connections)
J2, J3, J4, J5
Tokheim 69 Box
5 -485 Red
4 +485 White
6 DCC Black
4
3
2
1
NOTE:
Connections for Premier B are
3, 1, and 5 instead of 5, 4, and 6.
(See NOTE)
PMR-C Junction Box
Tokheim Insight
