MDX420 SkyWire™ Satellite Network Gateway
Introduction
MN-MDX420 Revision 6
1–8
1.4.4 SkyWire Eight Site Hub / Spoke (Star) Network Example
The example below (Figure 1-9) shows an eight site Hub / Spoke network with a 2Mbps outbound shared
carrier and a 4Mbit/s inbound shared carrier. Each gateway has a single MDX420 consisting of a single
burst modulator and two burst demodulators. Remotes have a 256kbps CIR with burstable through-put
up to 4Mbps.

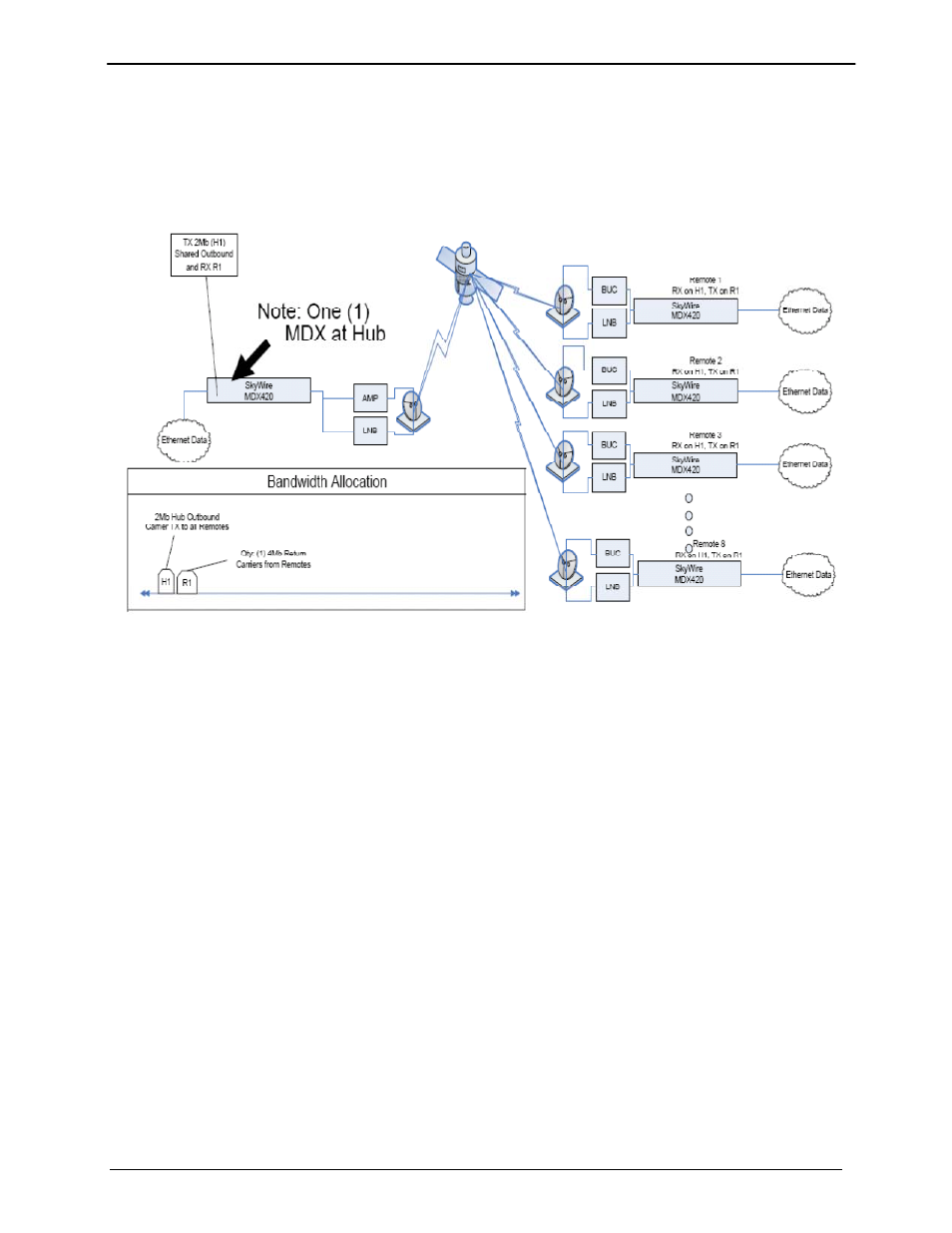

Figure 1-9 Network Diagram of a HUB / SPOKE (Star) Network
