MDX420 SkyWire™ Satellite Network Gateway

Introduction

MN-MDX420 Revision 6

1–6

1.4.2 SkyWire Eight Site Mesh Network Example

The example below shows one share group consisting of 8 sites. Each site has a single MDX420 with 1
burst demodulator installed.

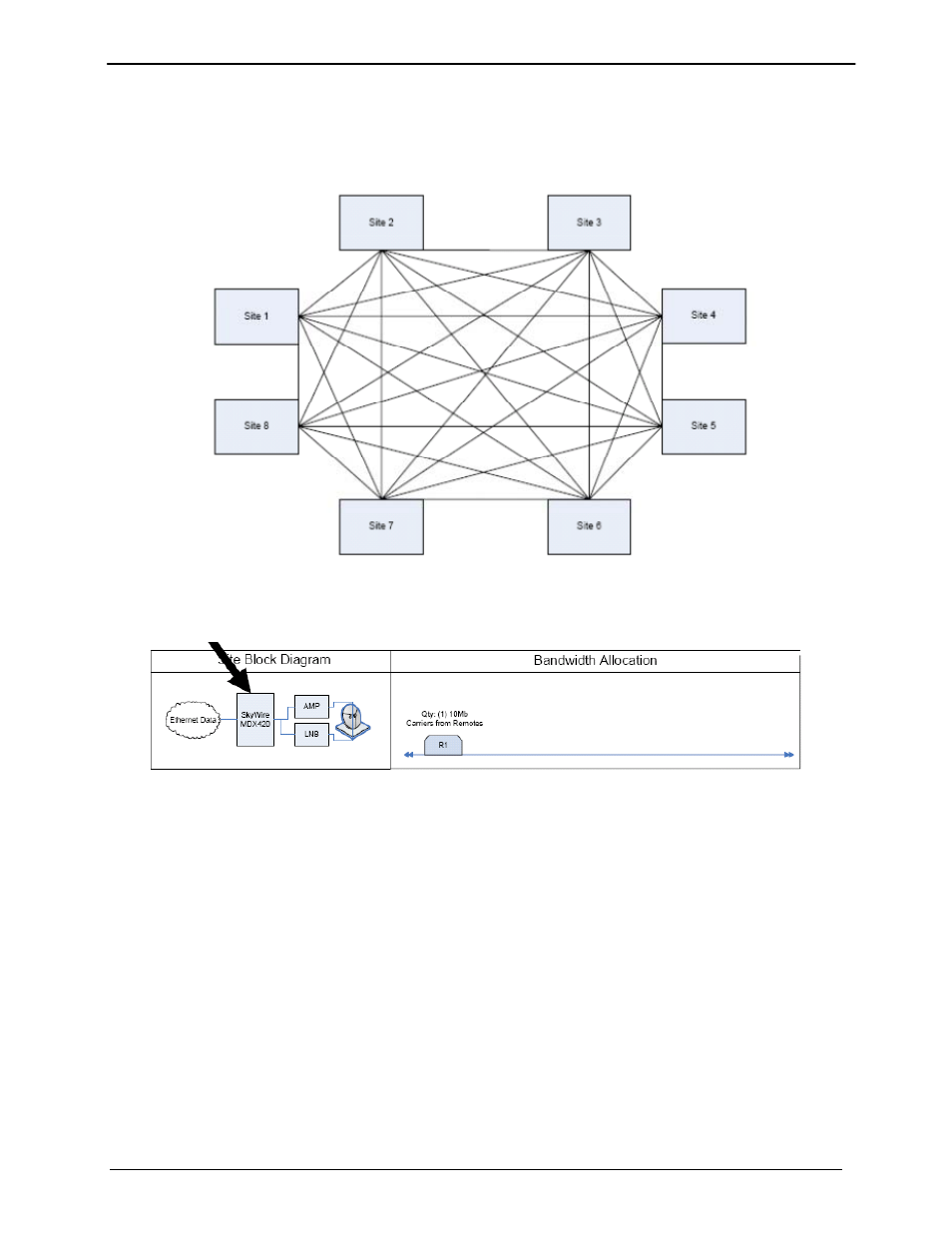

Figure 1-5 Eight site Full Mesh Network Diagram


One MDX420 per site

Figure 1-6 Eight Site Full Mesa Network Plan
