Comtech EF Data KPA - Manual (Page 79)

KPA Ku-Band Indoor Solid-State Power Amplifier Revision 1
Ethernet Management MN/KPA.IOM
6–17
Once the desired settings have been entered, click [Submit] as needed to execute update of this
section.
6.5.4.4.2 Status | Status page

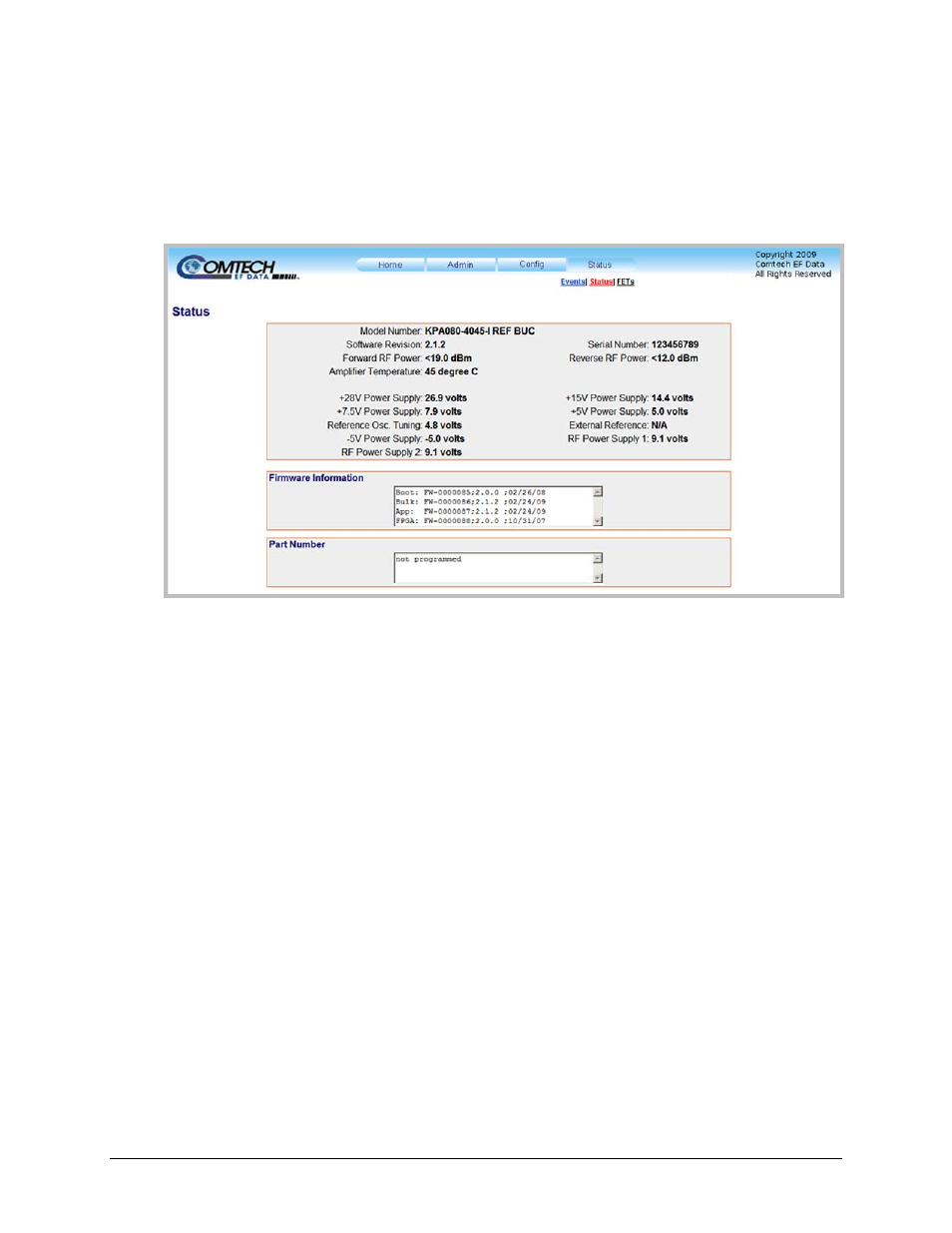

Figure 6-9. Status | Status page
The read-only ‘Status | Status’ page (Figure 6-9) provides the user with the means to monitor
the current operating status of a variety of features; provides identification parameters for the unit
itself (e.g.., part number, model number, etc.); and identifies the currently running firmware (i.e.,
the software revision, and the individual firmware part numbers, versions, revision letters, and
release dates).
